45gf Linear Switch | 5-Pin | Factory Lubed
Akko Piano U1 Switch

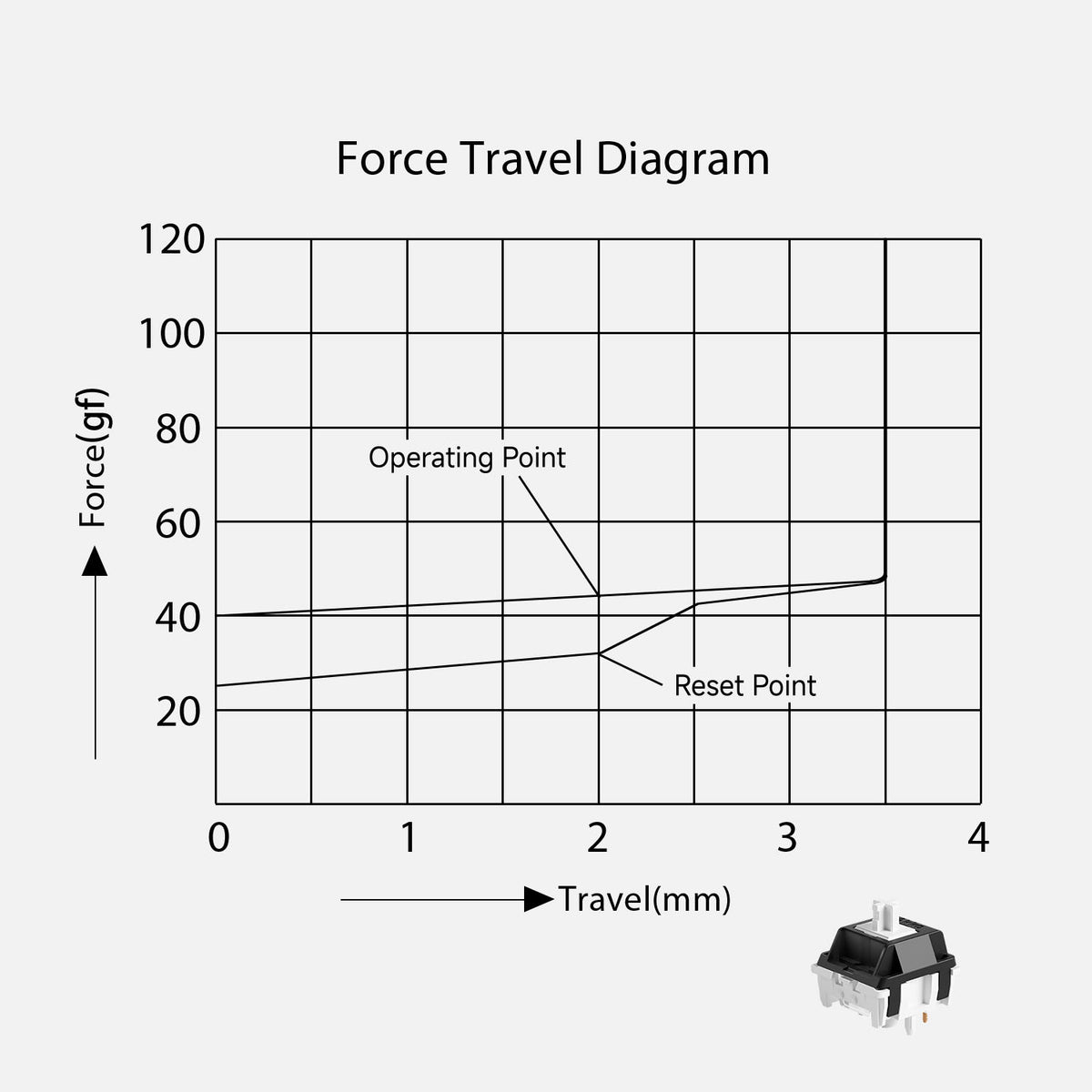

Type: Linear
Operating Force: 45 ± 5gf
Initial Force: 38gf Min
End Force: 50 ± 5gf Max
Total Travel: 3.5 ± 0.3mm
Work Travel: 2.0 ± 0.3mm
Materials: PC/LY/PA66
45 pcs a box.

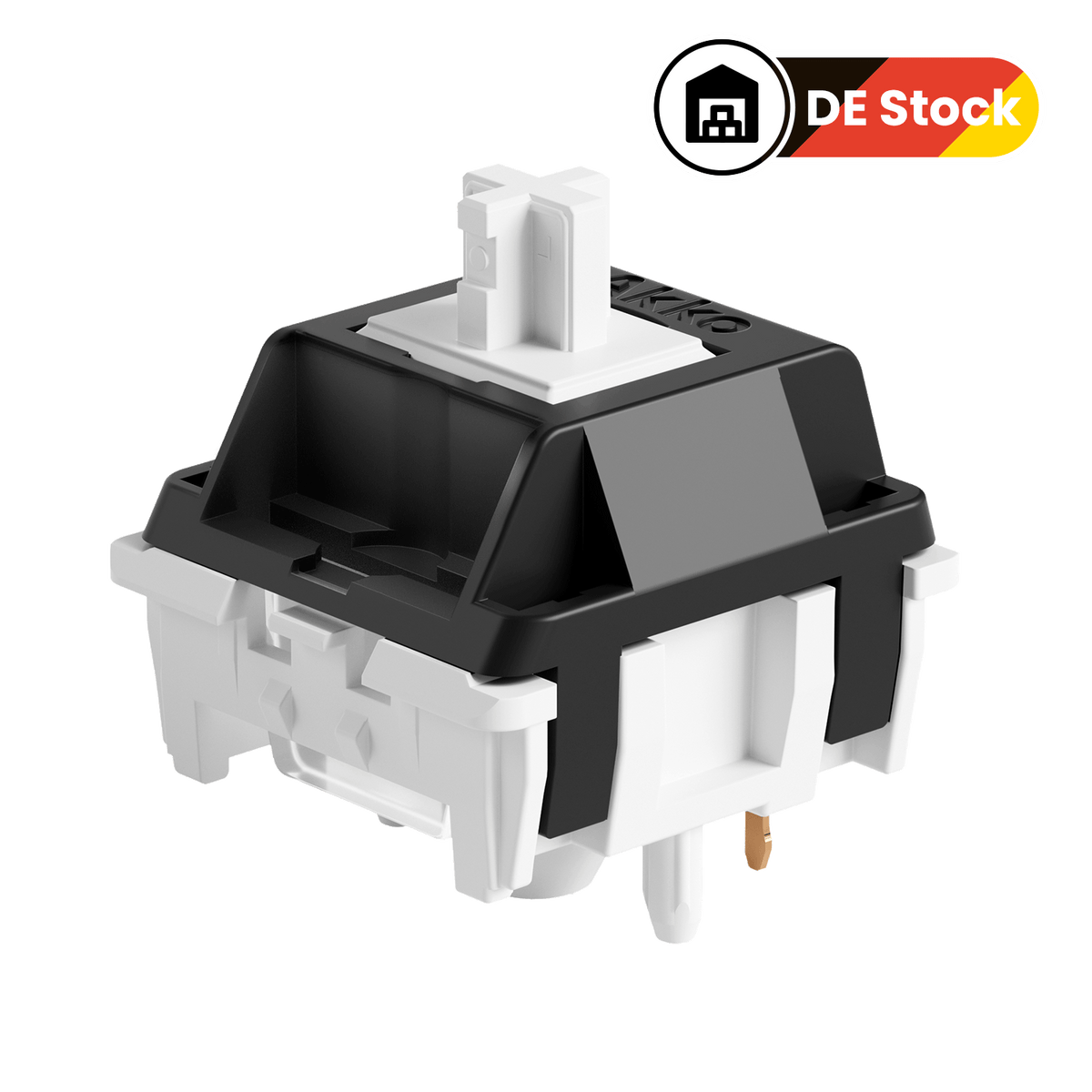

A New Take on Piano
Reversing the classic Piano switch colorway, Piano U1 features a black top and white bottom housing for a fresh take on the signature piano-inspired design.
Low-Friction LY Stem
Smooth Linear Travel
Consistent Keystrokes
Piano U1 Switch (Linear, 45pcs)
What's Improved
Building on the familiar sound profile of the Akko Piano series, the Piano U1 linear switch improves overall smoothness and delivers a more responsive keystroke, with a more focused sound and less unwanted noise.
The low-friction LY stem helps reduce friction during each keystroke for smoother, more consistent linear travel. Together with refinements to the switch structure, the Akko Piano U1 maintains the characteristic sound of the series while providing a smoother typing feel and a cleaner, more controlled sound profile.
Linear
45 ± 5gf
2.0 ± 0.3mm
3.5 ± 0.3mm
38gf Min
50 ± 5gf Max
5-Pin switch (can be modified to 3-Pin)
PC/LY/PA66
Yes
MX Style
Compatible with any Cherry style switches PCB. 5 pins can be adjusted to 3 pins by clipping off 2 extra pins if needed.
