45gf Linear Switch | 5-Pin | Factory Lubed

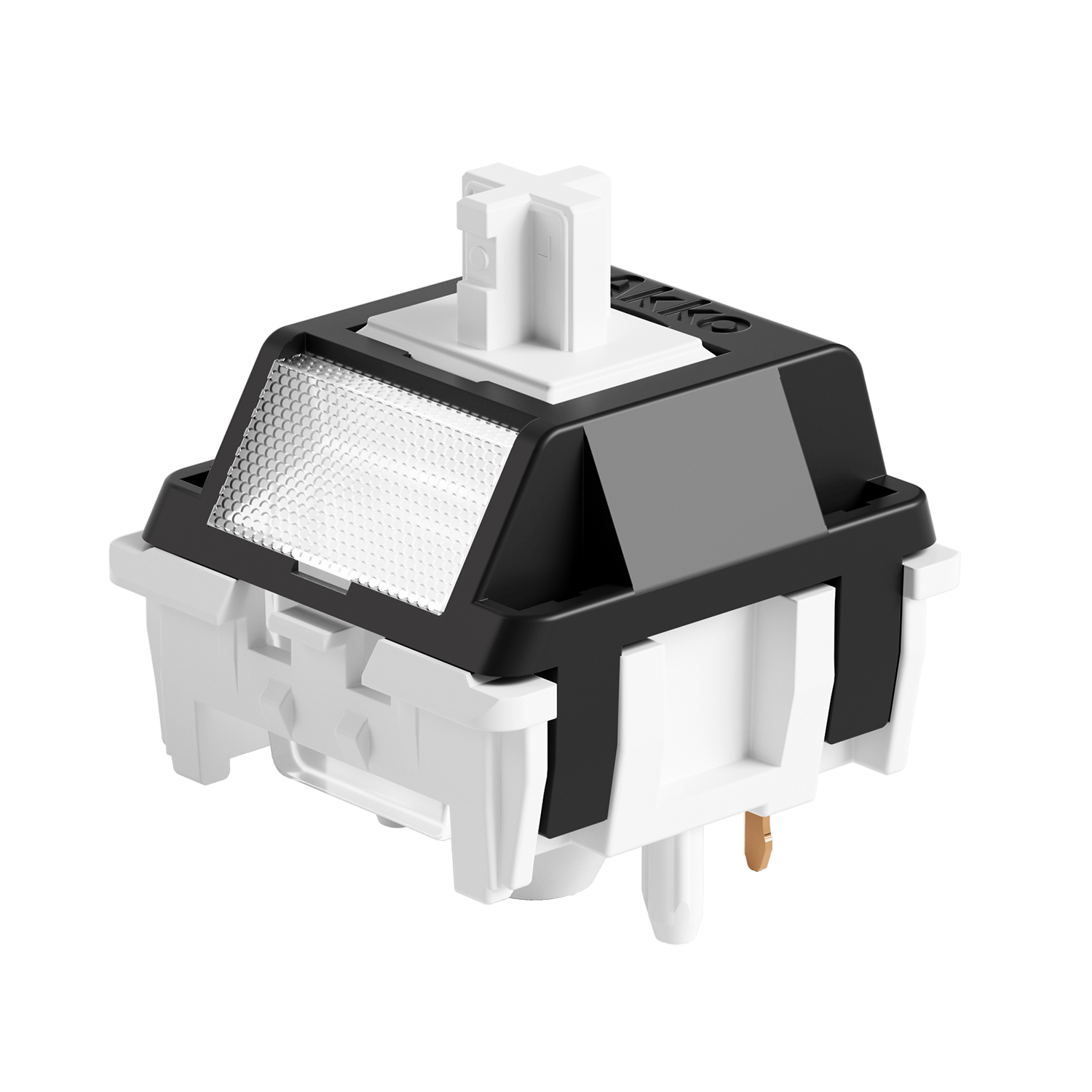

Akko Piano U1 Switch
Type: Linear

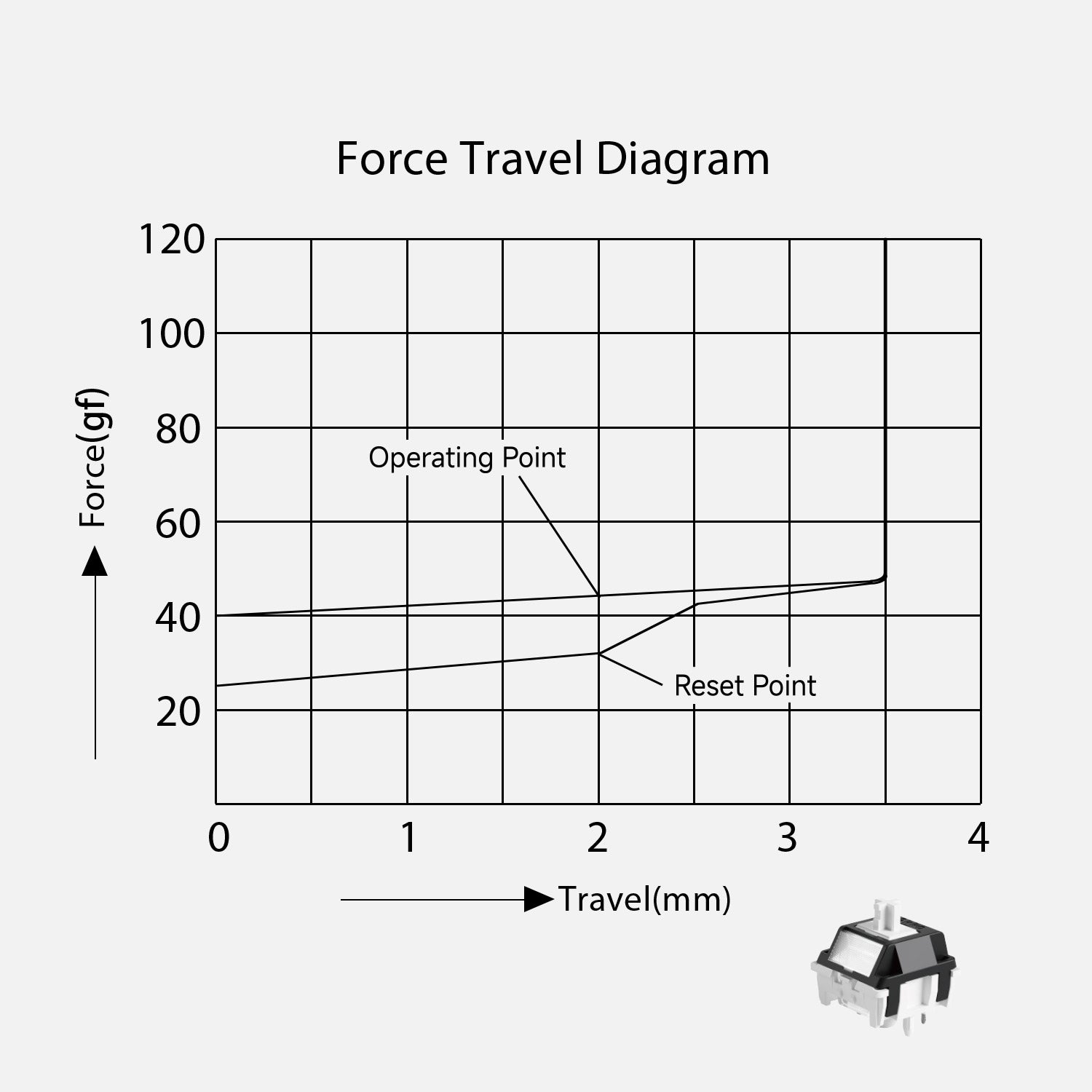

Operating Force: 45 ± 5gf
Initial Force: 38gf Min
End Force: 50 ± 5gf Max
Total Travel: 3.5 ± 0.3mm
Work Travel: 2.0 ± 0.3mm
Materials: PC/LY/PA66
45 pcs a box.
Piano U1 Switch (Linear, 45pcs)
TECH SPECS
Linear
45 ± 5gf
2.0 ± 0.3mm
3.5 ± 0.3mm
38gf Min
50 ± 5gf Max
5-Pin switch (can be modified to 3-Pin)
PC/LY/PA66
Yes
MX Style
Compatible with any Cherry style switches PCB. 5 pins can be adjusted to 3 pins by clipping off 2 extra pins if needed.
