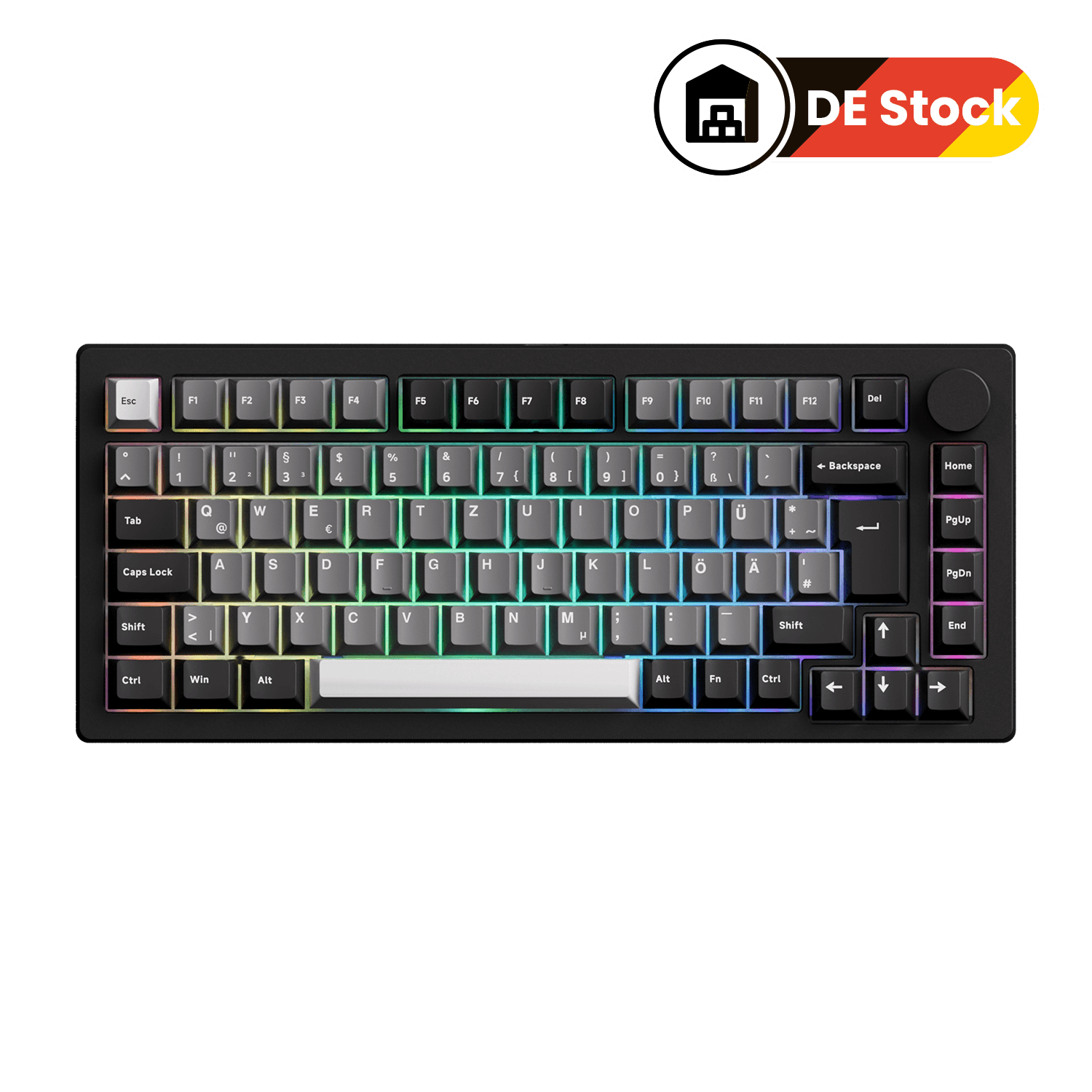

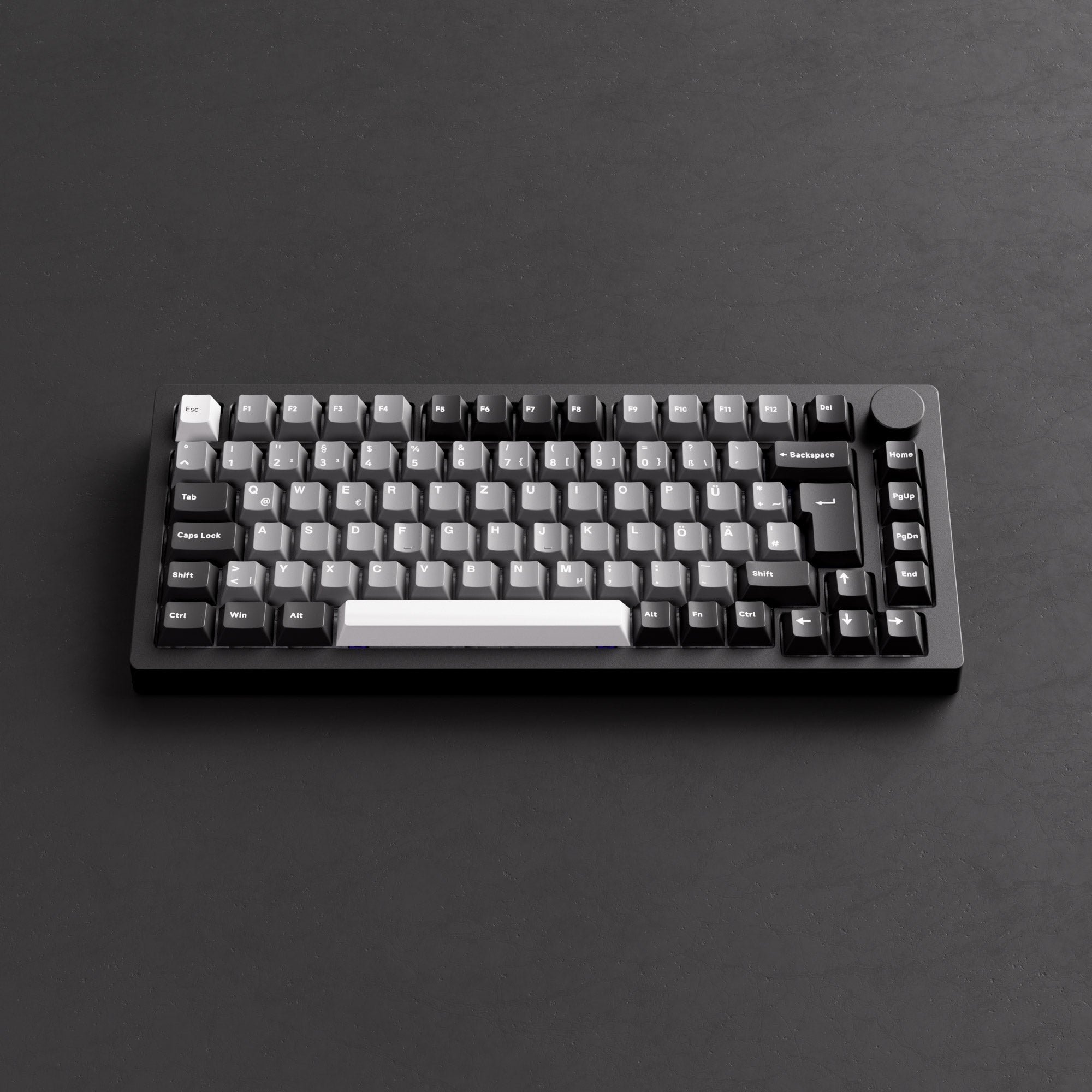

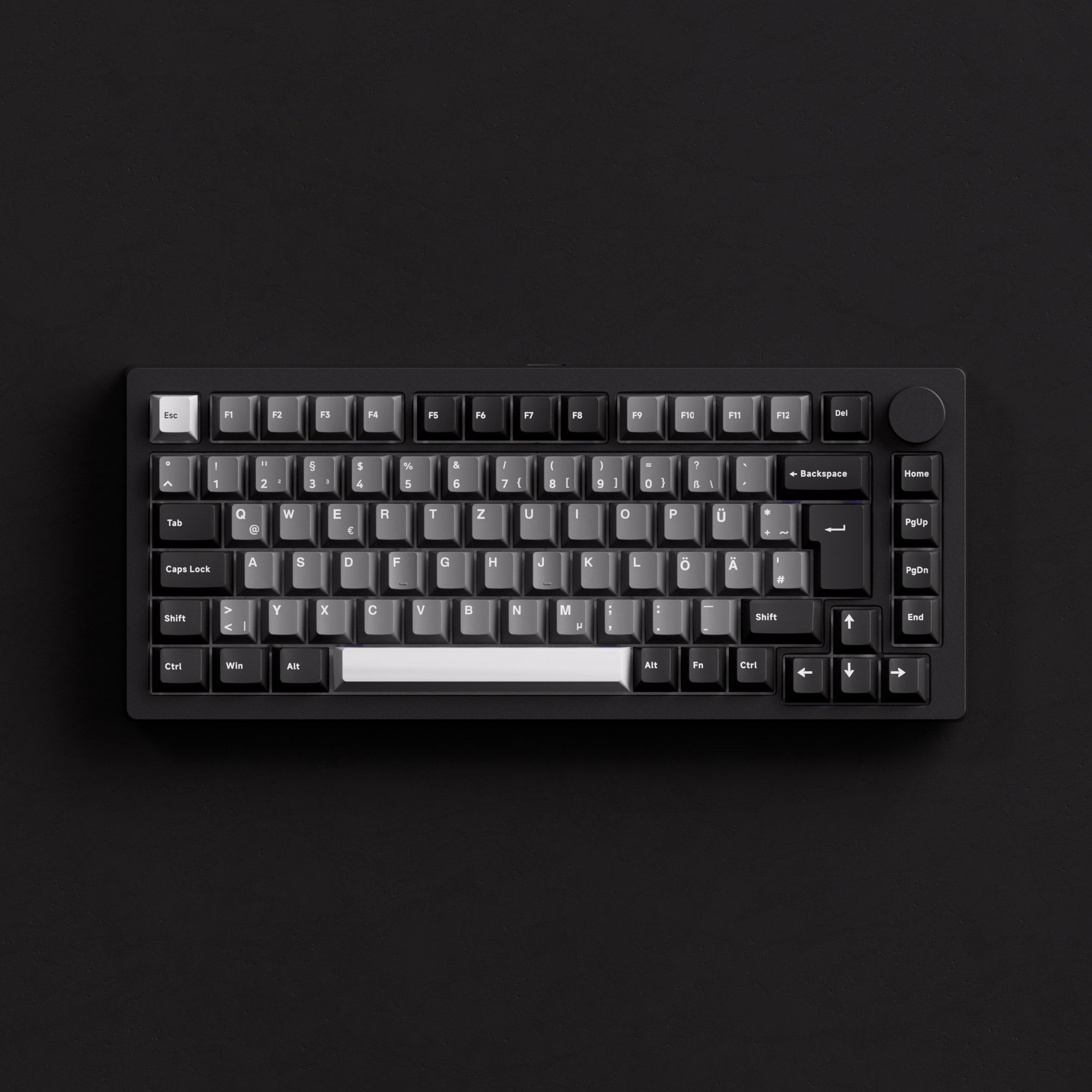

MonsGeek M1 V5 VIA ISO Custom Mechanical Keyboard

DE Stock
Prezzo scontato€178,49

Tasse incluse. Spedizione calcolata al checkout

Promotion

10% OFF for M1 V5 VIA Series.
Use Code: M1V510

SKU: 6975351385462

Tema - Layout: Nero e Argento - ISO-DE/UK/Nordic
Interruttore: Interruttore Akko V3 Piano Pro
Magazzino: Germania(DE) Magazzino
Disponibile
Germany(DE) Warehouse Support

2~3 days for Germany; 6~7 days for other European regions.
Click here for more products and shipping details.

75% Rapid Disassemble Aluminum Mechanical Keyboard with Knob

MonsGeek M1 V5 VIA Custom Mechanical Keyboard

The MonsGeek M1 V5 VIA Custom Mechanical Keyboard features a ball catch design, allowing for rapid disassembly and convenient maintenance.

Making it easy for beginners to build the keyboard independently.

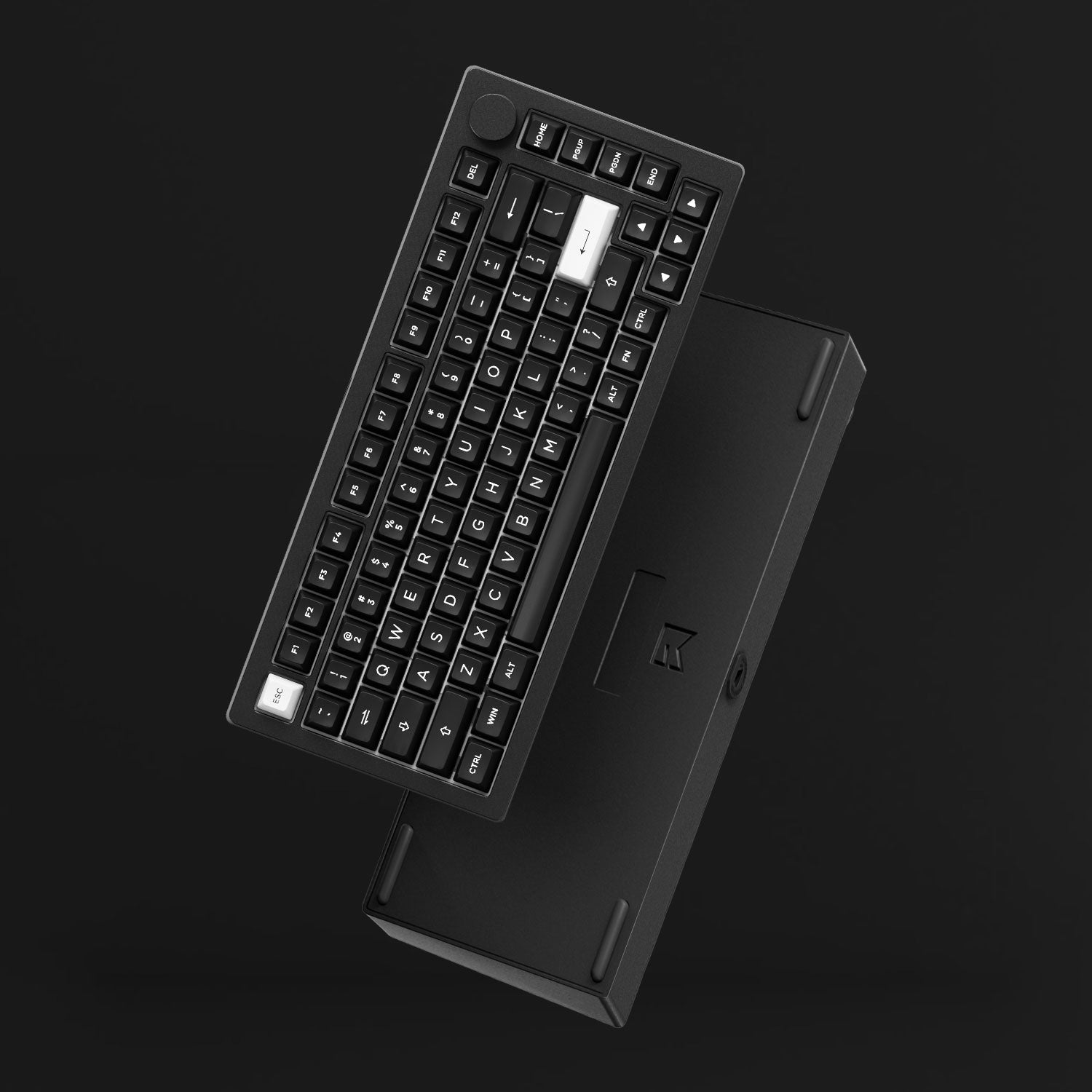

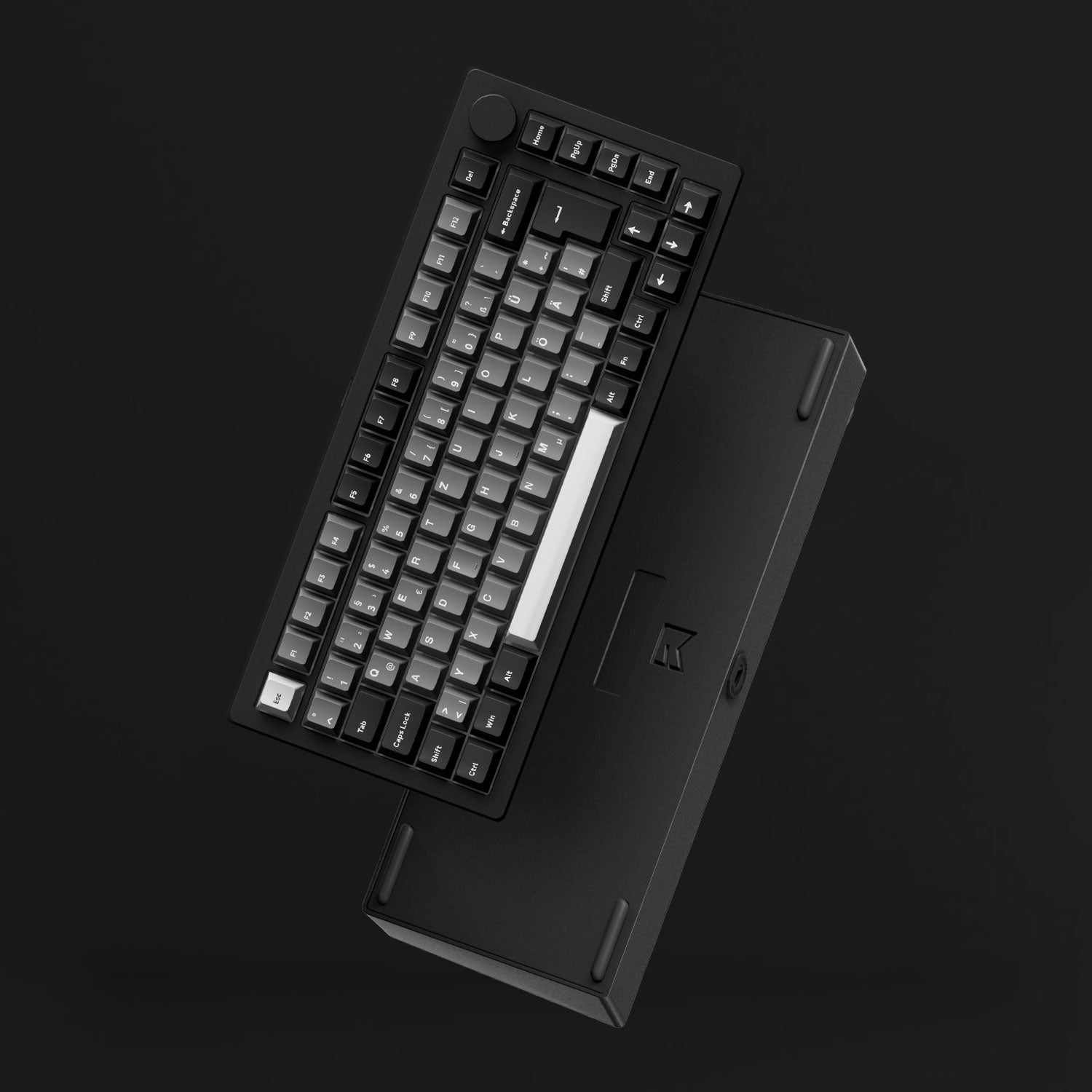

Ball-catch Design

Rapid Disassemble without Screws or Tools

Unlike typical screw-on mechanical keyboards, the M1 V5 Series features a ball catch to secure the case and adjustable load force that can be modified by tightening screws during installation for enhanced safety and stability.

MonsGeek M1 V5 VIA Custom Mechanical Keyboard

Before

MonsGeek M1 V5 VIA Custom Mechanical Keyboard PCB

After

Trascina

Endless Remapping and Backlight Customization

VIA for advanced keyboard customizations.

VIA Configuration in Wired Json File (V5-ISO) Json File (V5-ANSI) Source Code

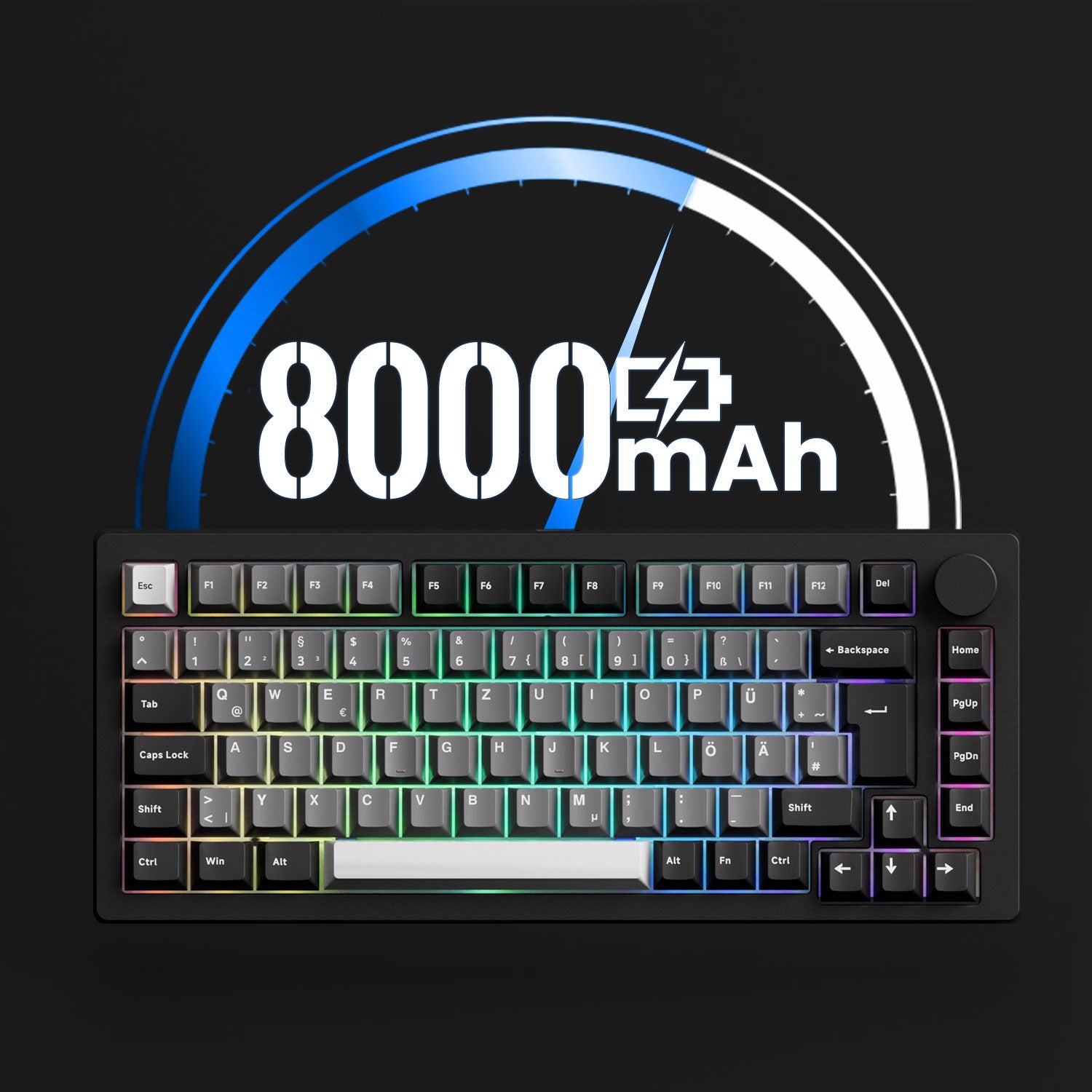

Built-in 8000mAh battery of MonsGeek M1 V5 VIA Custom Mechanical Keyboard

Built-in 8000mAh Battery

With a high-capacity battery of around 8000mAh, users can enjoy prolonged periods of uninterrupted typing, gaming, or productivity without the need for constant recharging.

RGB-ON: 86 Hours
RGB-OFF: 500 Hours
Note: This data comes from MonsGeek Labs, and specific usage varies from person.

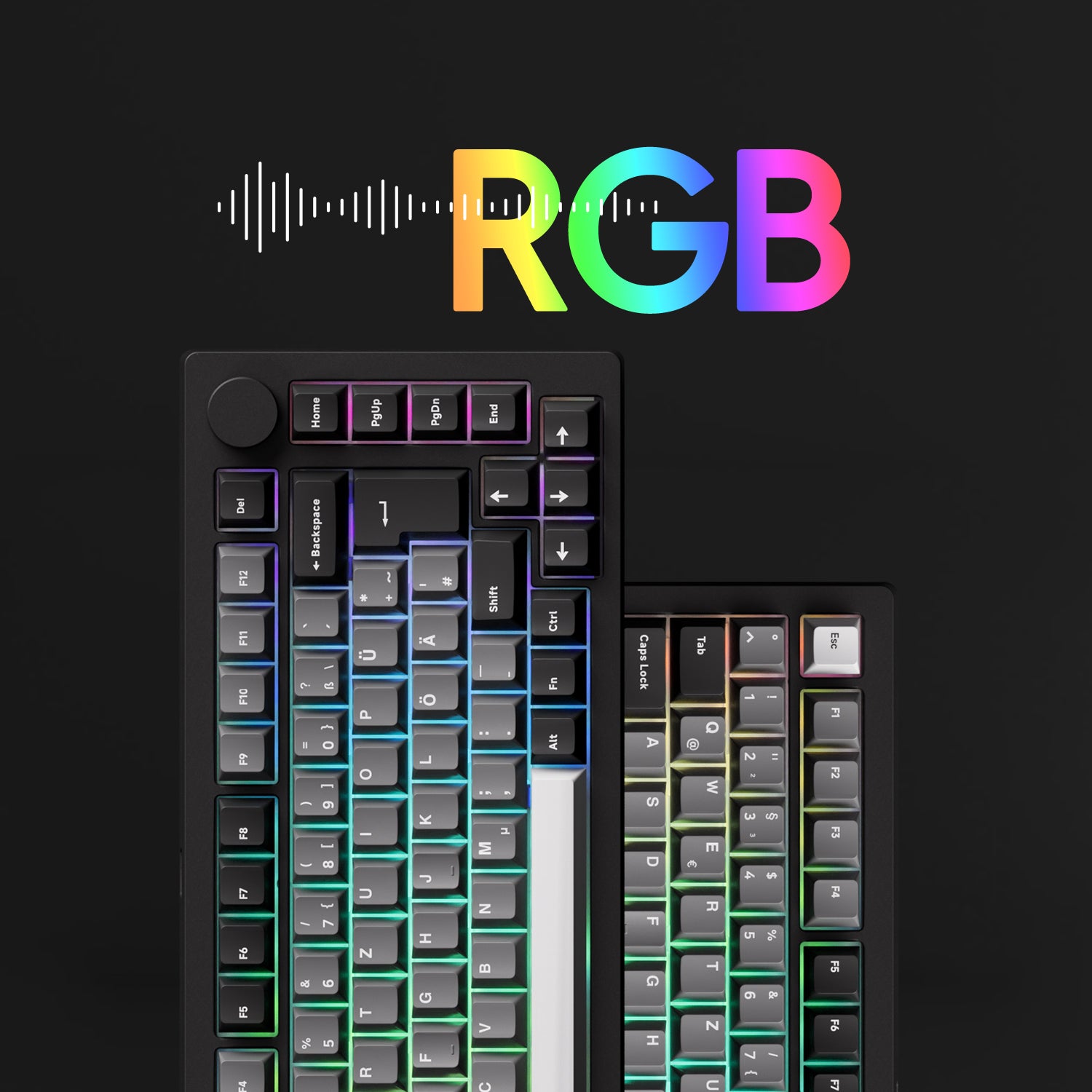

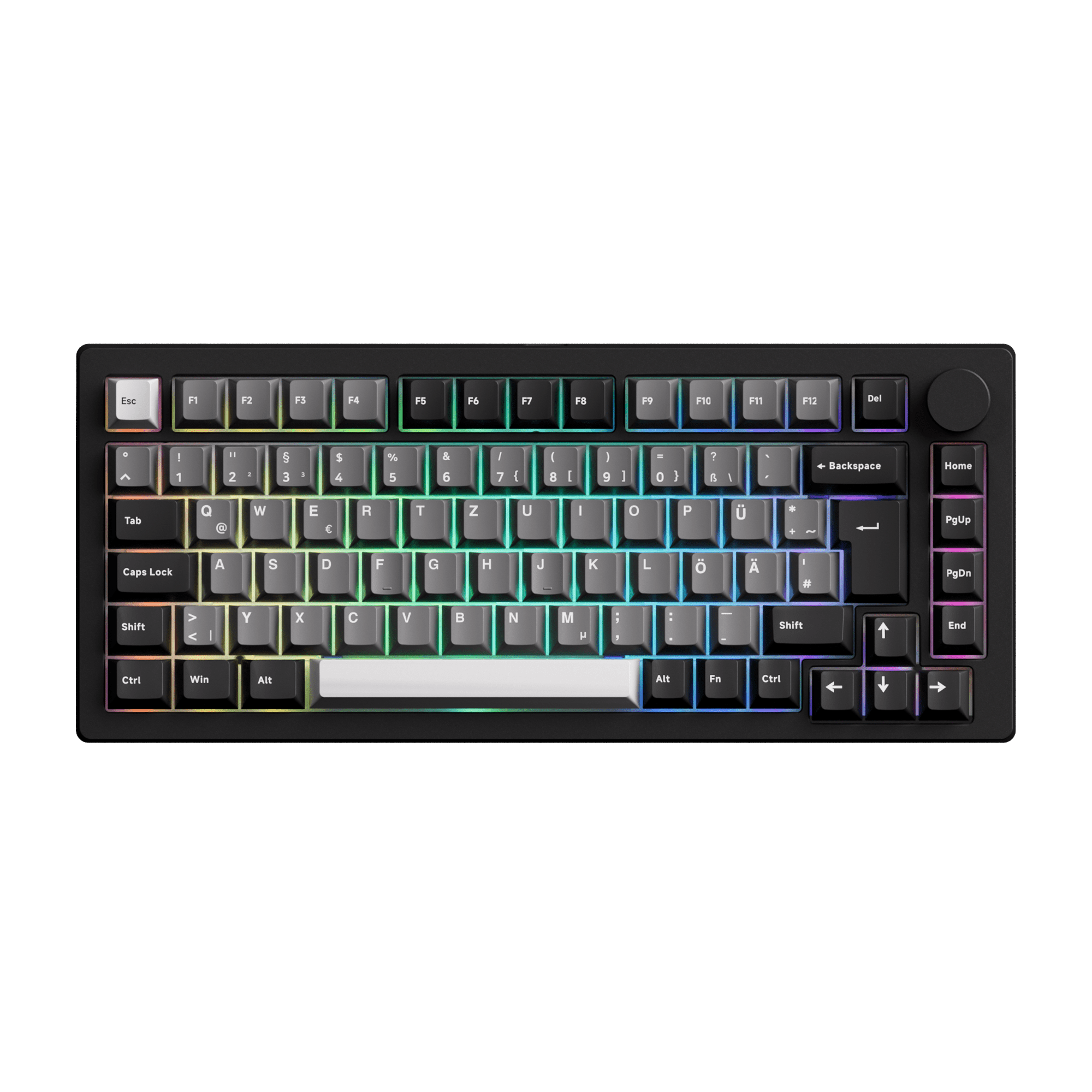

RGB Backlit of MonsGeek M1 V5 VIA Custom Mechanical Keyboard

RGB Backlit

M1 V5 VIA Series can help you type in the dark with decent backlit. It has over 15 preset backlighting modes.

Craft custom lighting effects with the VIA Configuration, providing a range of colors, adjustable brightness, and animation speed.

Akko V3 Piano Pro Switch features LED diffuser for 30% brighter RGB lighting

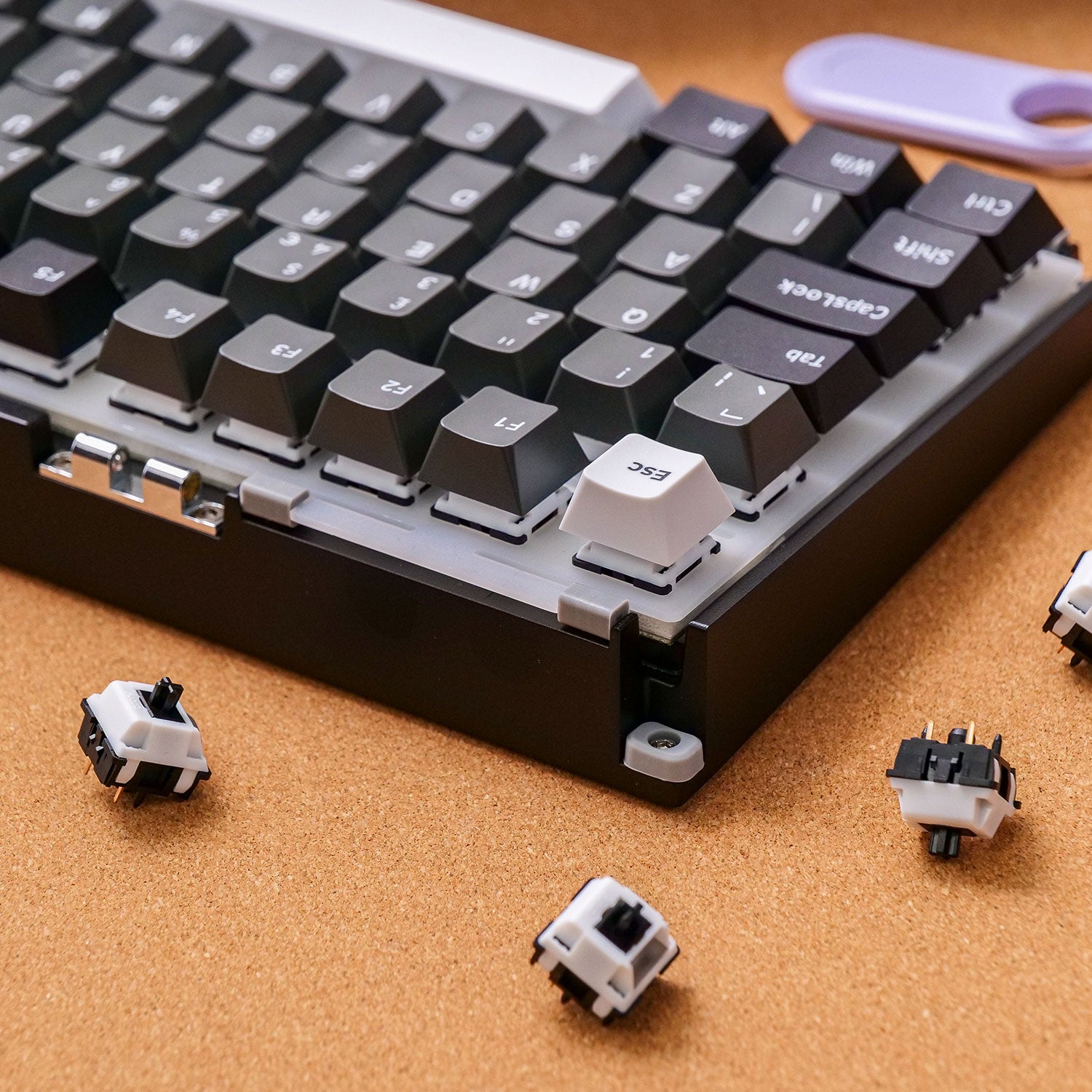

Gasket Mount

MonsGeek gasket mount keyboard is a type of mechanical keyboard that uses a gasket material, such as silicone or neoprene, to create a “floating” mount for the switches. The gasket is placed between the plate and the PCB, which allows for a more flexible and cushioned typing experience.

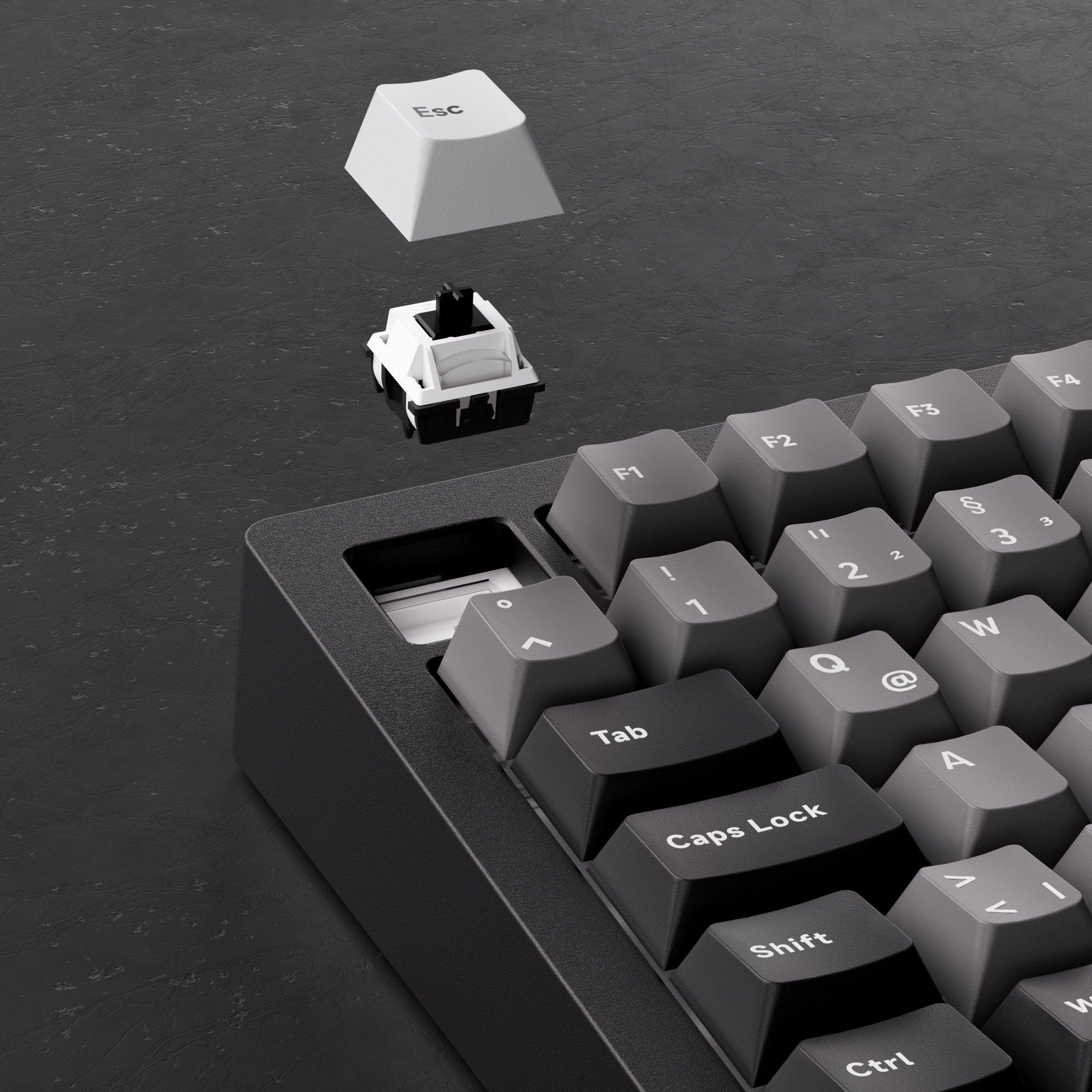

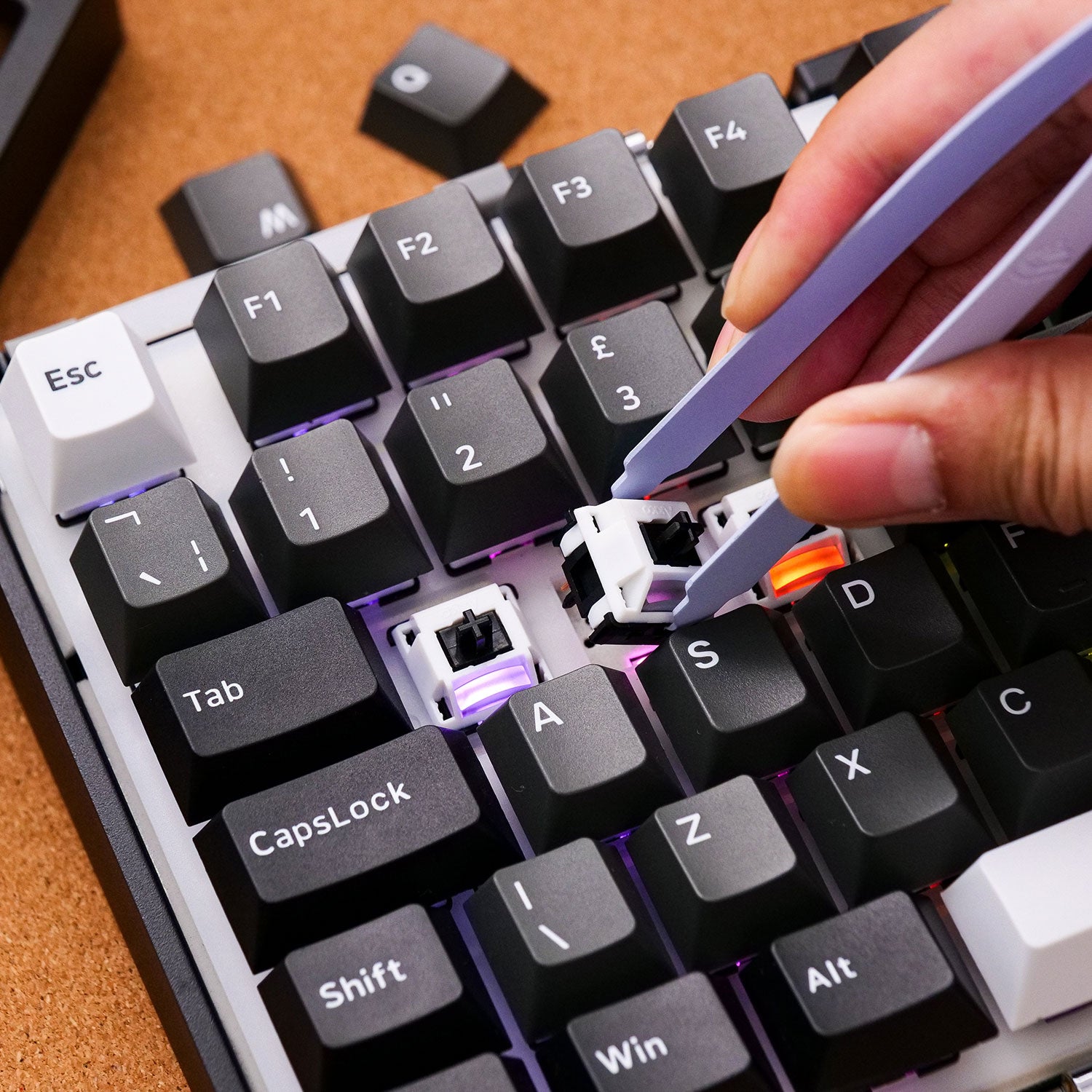

5-Pin Hot-swappable

The south-facing PCB of the M1 V5 Series avoids causing interference with Cherry profile keycaps during customization, offering more compatibility and flexibility. Support 5-Pin Hot-swappable. Featuring high-quality 5-Pin hot-swappable sockets for easy switch changes.

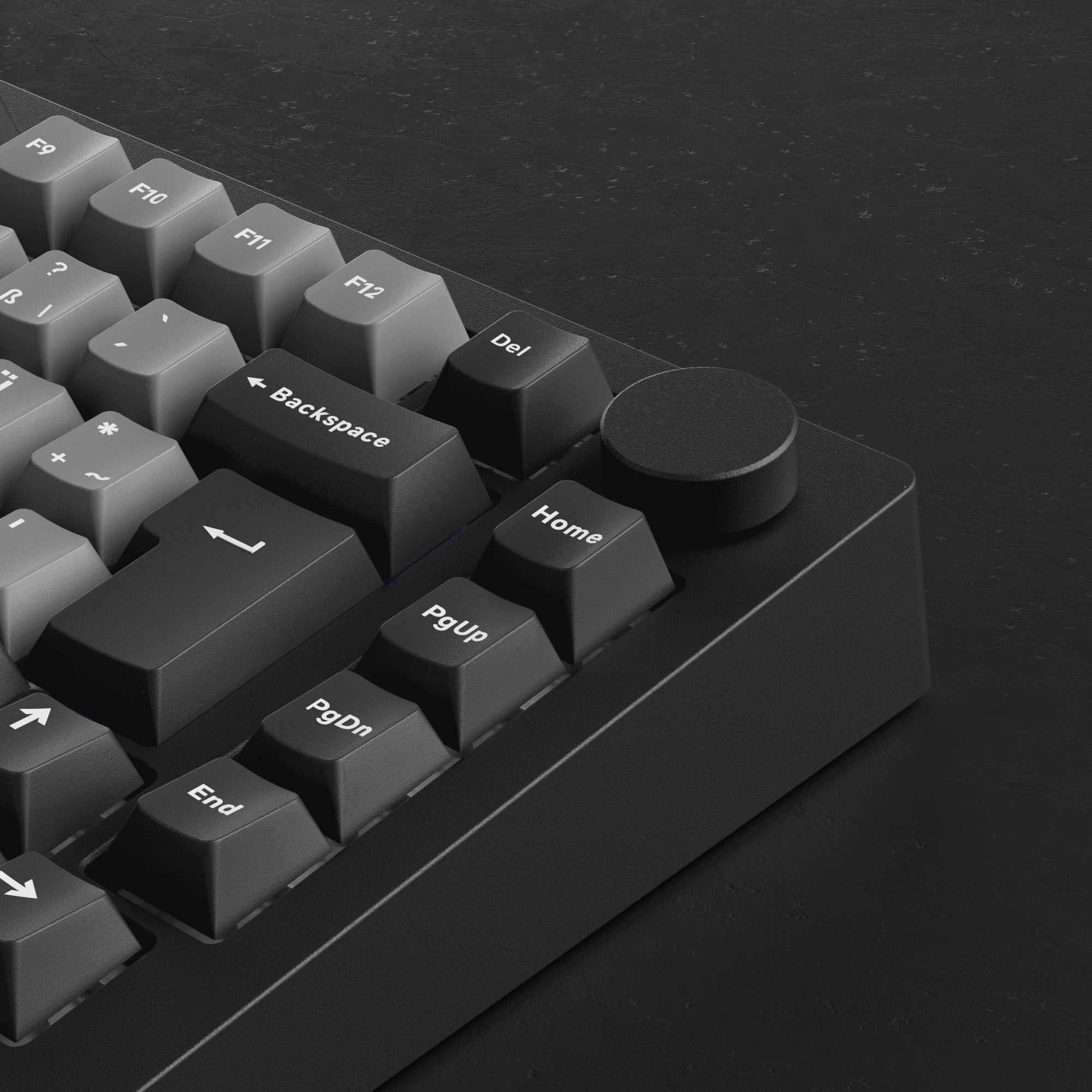

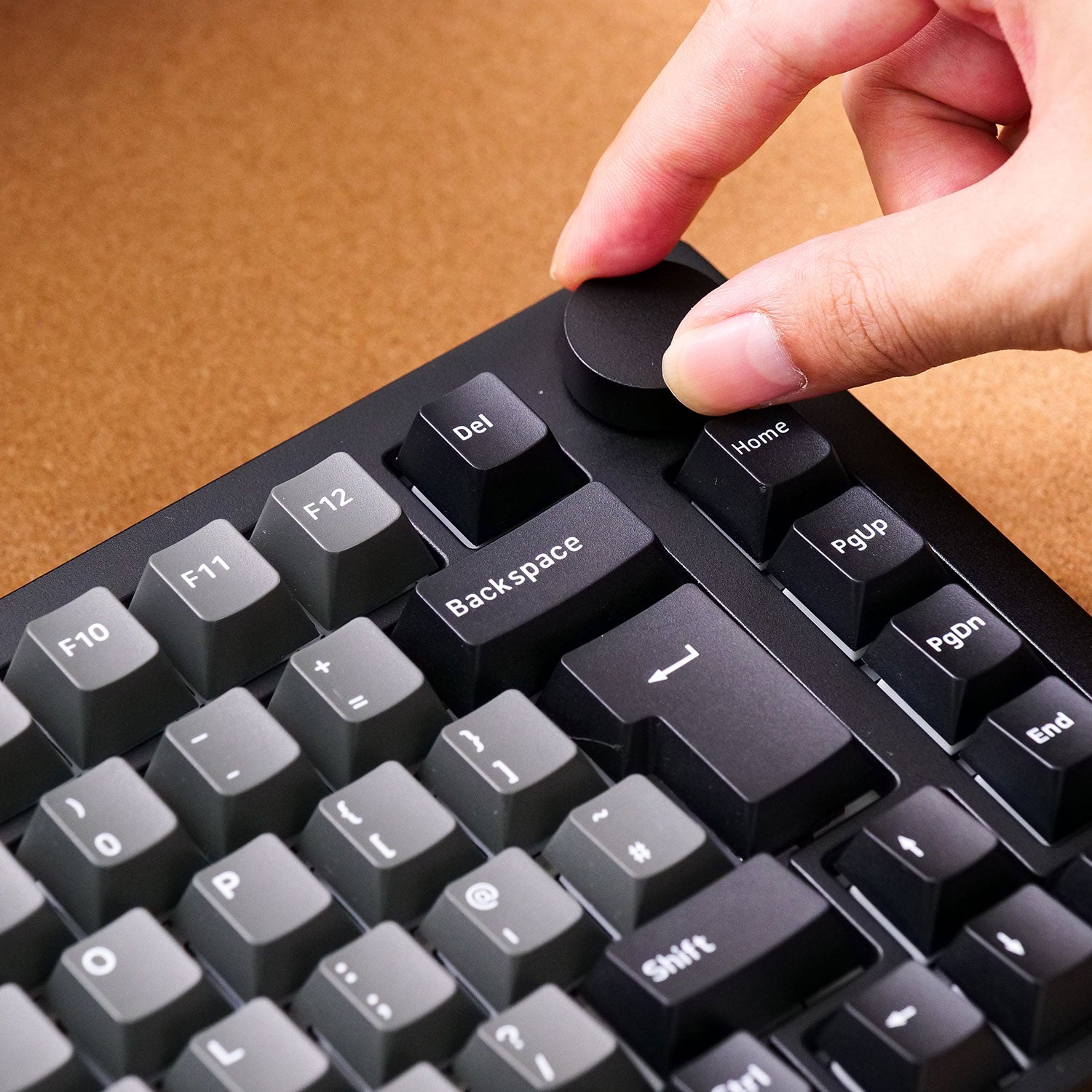

Programable Knob

This modification stems from user input and feedback. M1 V5 Series includes a fresh encoder and a floating design to prevent scratches on the case, as indicated in the earlier model.

Easily control the volume and lighting and program to other funtions.

MonsGeek M1 V5 VIA Custom Mechanical Keyboard support multi-mode

M1 V5 Multi-Mode

Allows easy switching between wired, Bluetooth, and 2.4GHz wireless modes for a smooth experience across all devices. Compatible with Windows and Mac, this versatile keyboard delivers exceptional performance and convenience. Enhance productivity with this adaptable keyboard.

2.4Ghz Wireless

Equipped with a receiver that allows users to utilize the 2.4GHz wireless mode, providing low latency suitable for gaming and typing purposes.

BT 5.0

Easy to connect up to 3 devices with a simple Fn+E/R/T combination, enabling seamless switching between tablets, computers, and phones.

USB-C Wired Mode

Ensuring consistent and rapid response times for FPS gaming and minimal input lag.

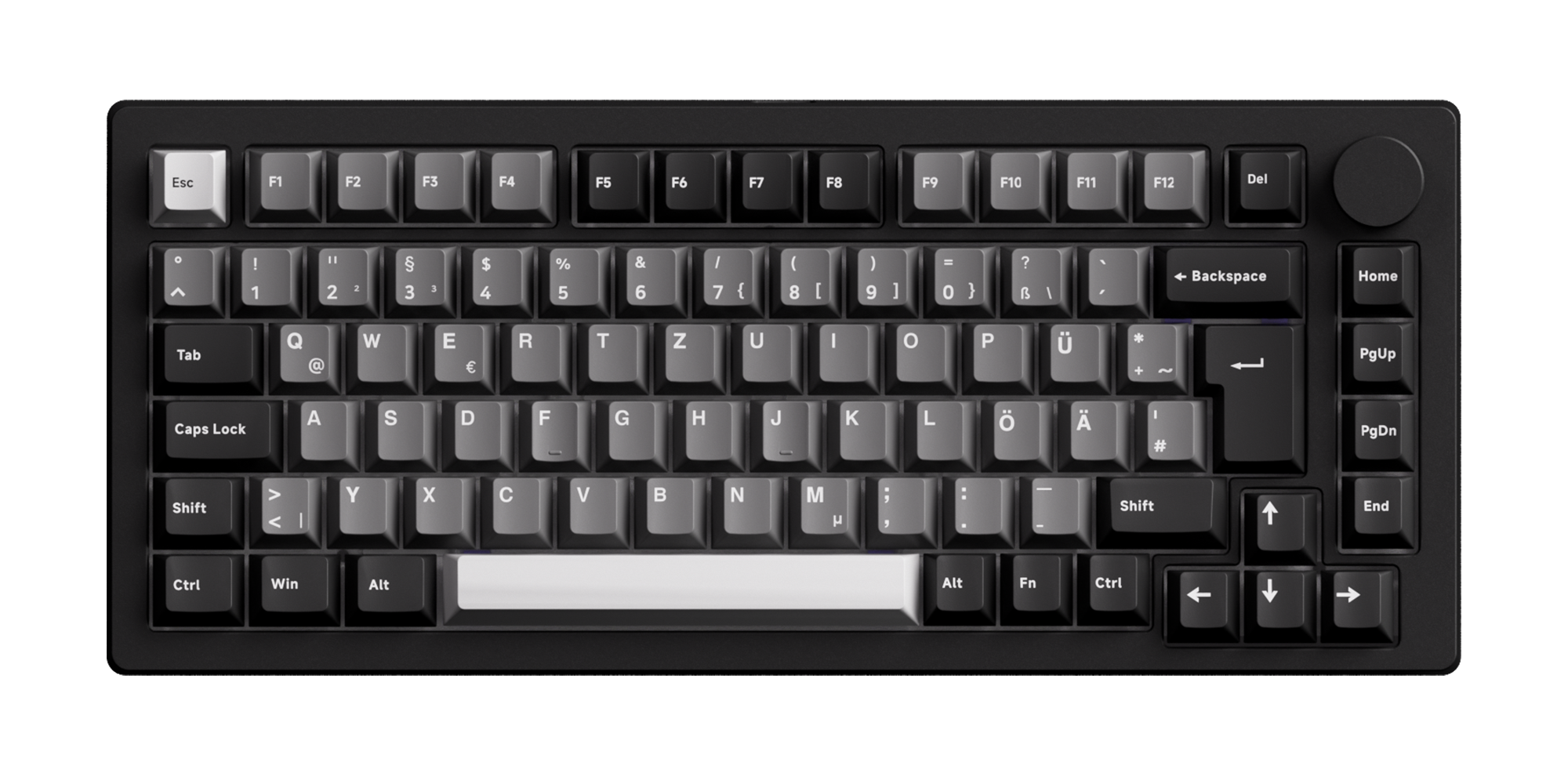

Size of MonsGeek M1 V5 VIA Custom Mechanical Keyboard

Switches SPEC

Akko V3 Piano Pro Switch

Akko V3 Piano Pro

Type: Linear
Operating Force: 45±5gf
End Force: 50±5gf
Total Travel: 3.1mm
Pre-Travel: 1.9±0.5mm

akko rosewood switch

Akko Rosewood

Type: Linear
Operating Force: 40±5gf
Total Travel: 4.0mm
Pre Travel: 2.0±0.5mm
Total Travel: 4.0mm

Akko Creamy Cyan Switch Close View

Akko Creamy Cyan

Type: Clicky
Operating Force: 50±7gf
Total Travel: 4.0±0.2mm
Pre Travel: 2.0±0.6mm
Tactile Travel: 1.3mm
Tactile Force: 65±7gf

creamy purplr pro switch

Akko V3 Creamy Purple Pro

Type: Tactile
Operating Force: 30±5gf
Pre Travel: 2.0±0.6mm
Total Travel: 3.0mm
Tactile Travel: 0.5mm
Tactile Force: 55±5gf

MonsGeek M1 V5 VIA Custom Mechanical Keyboard system switch

System Switch

Top: Mac Wireless Mode (built-in power supply on)
Middle: Default Windows Wired Mode (built-in power supply off)
Bottom: Windows Wireless Mode (built-in power supply on)

Note: The switch is located under the CAPS key

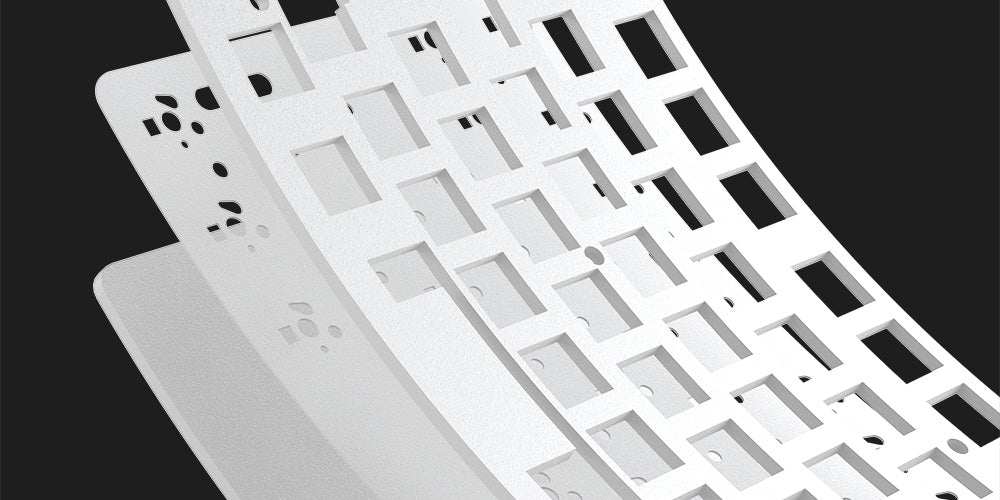

Poron Plate Foam of MonsGeek M1 V5 VIA Custom Mechanical Keyboard

PORON Plate Foam

MonsGeek M1 V5 VIA ISO Custom Mechanical Keyboard is equipped with PORON plate foam, effectively reducing the noise generated by key switches, ensuring a purer and more comfortable tactile sound experience for the keyboard.

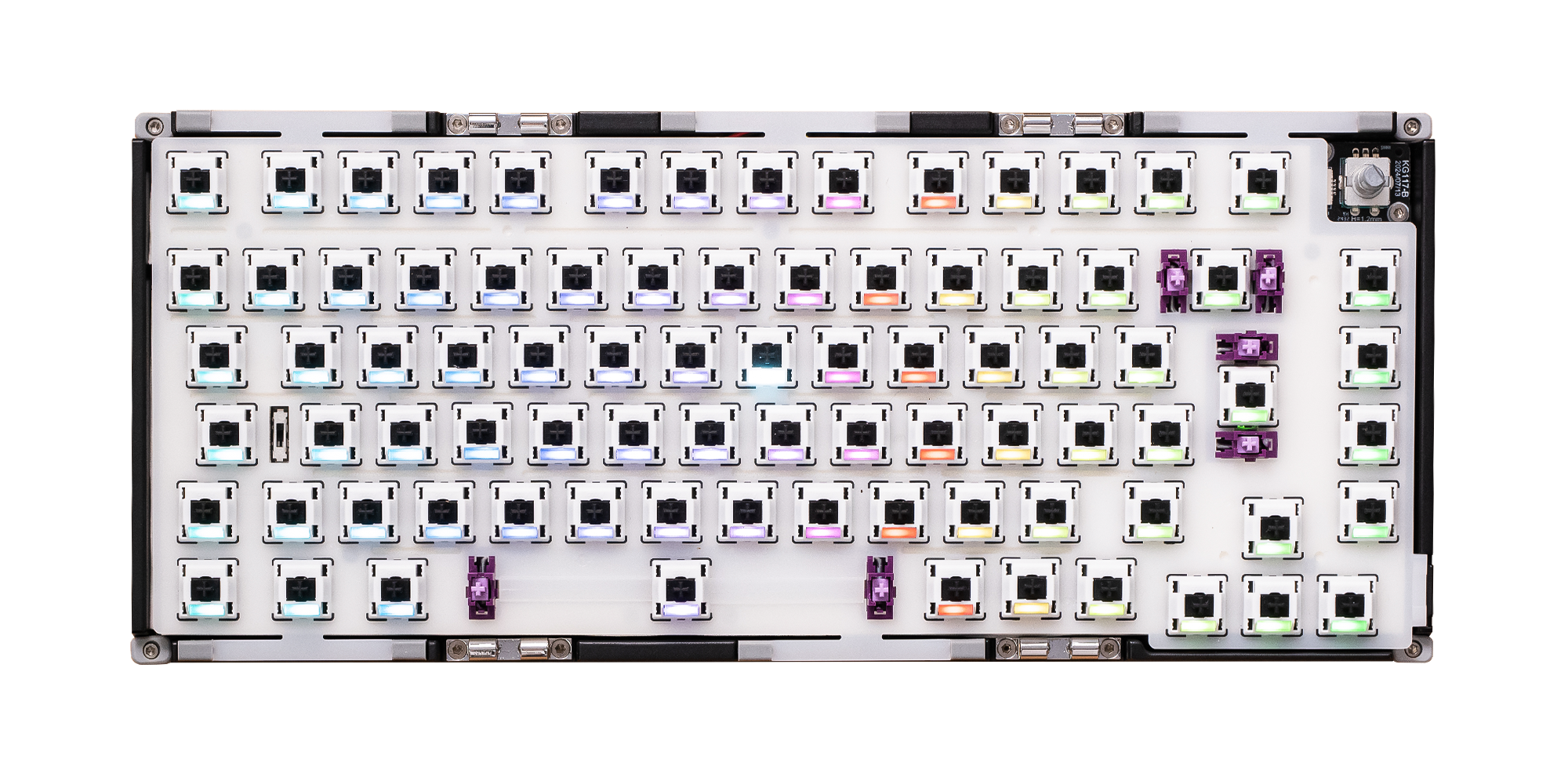

MonsGeek M1 V5 VIA Custom Mechanical Keyboard PCB

Polycarbonate Plate

MonsGeek M1 V5 VIA ISO Custom Mechanical Keyboard utilizes a transparent PC plate to offer flexibility surpassing that of metal, while also reducing low-frequency resonance.

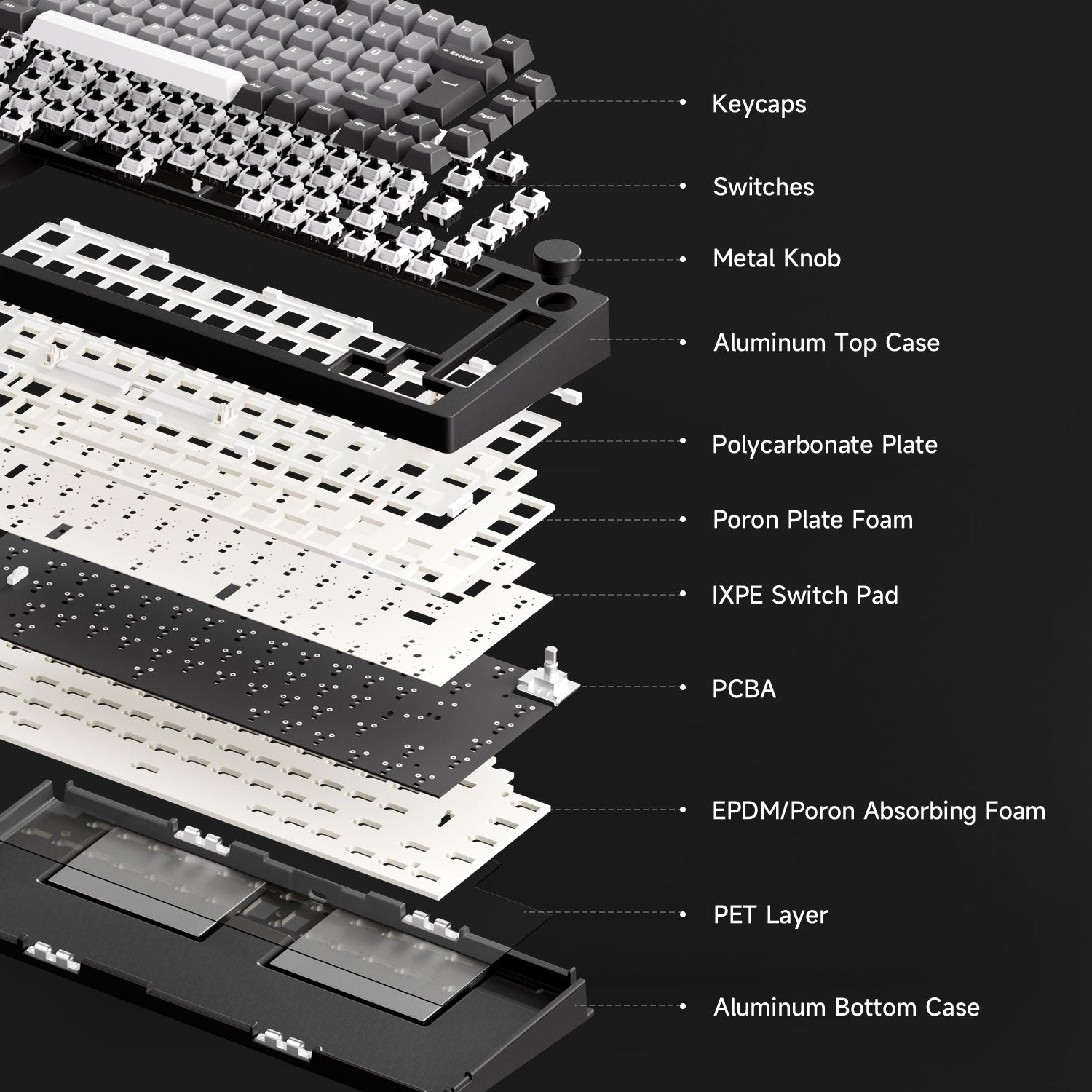

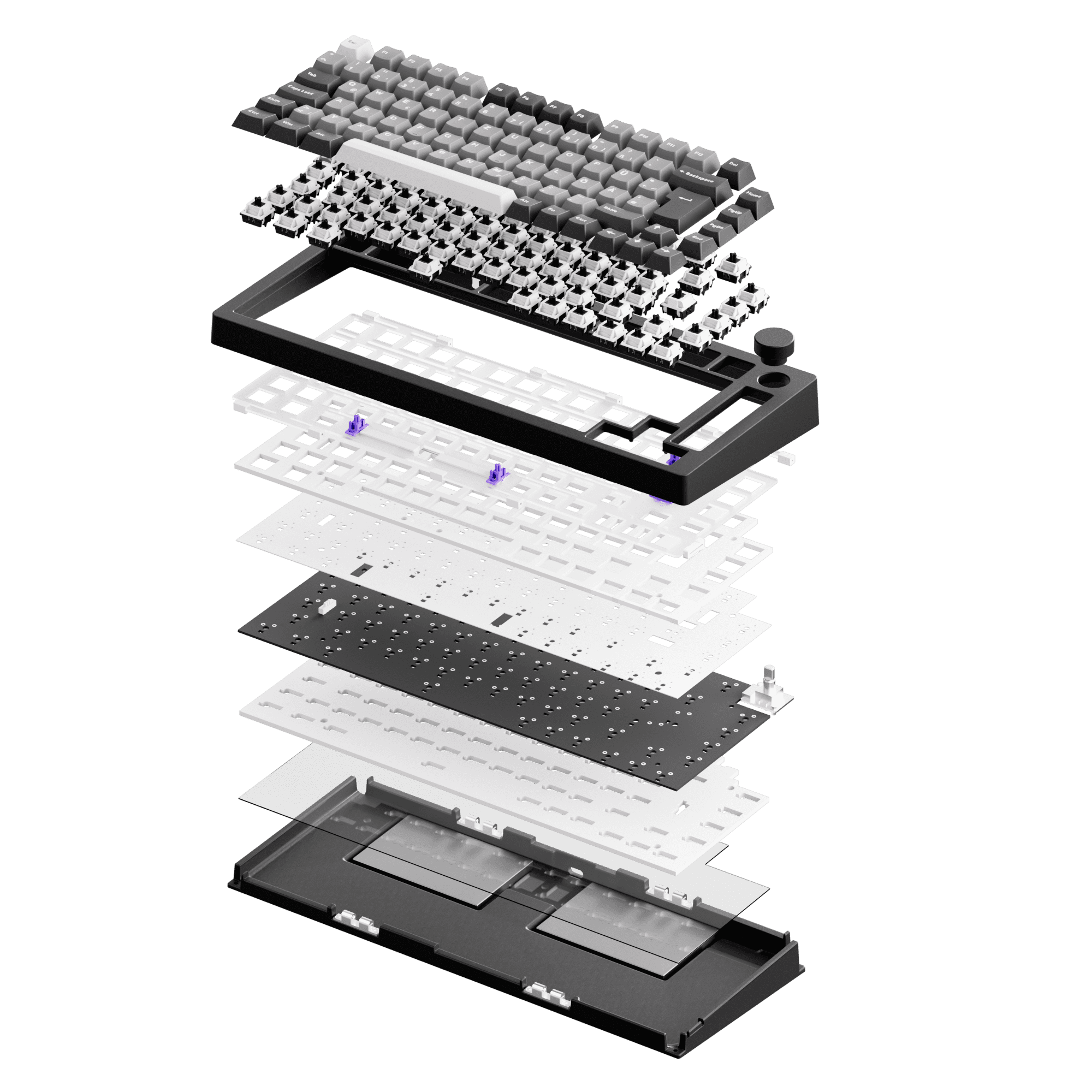

MonsGeek M1 V5 VIA Custom Mechanical Keyboard Internal Structure

More Flexibility and Sounds Better

MonsGeek M1 V5 series come with a comprehensive upgrade to the noise reduction system, offering greater flexibility for experimenting with a variety of sound profiles.

MonsGeek M Series QC Disclaimer
Close view for MonsGeek M1 V5 VIA Custom Mechanical Keyboard

Compare

TECH SPECS

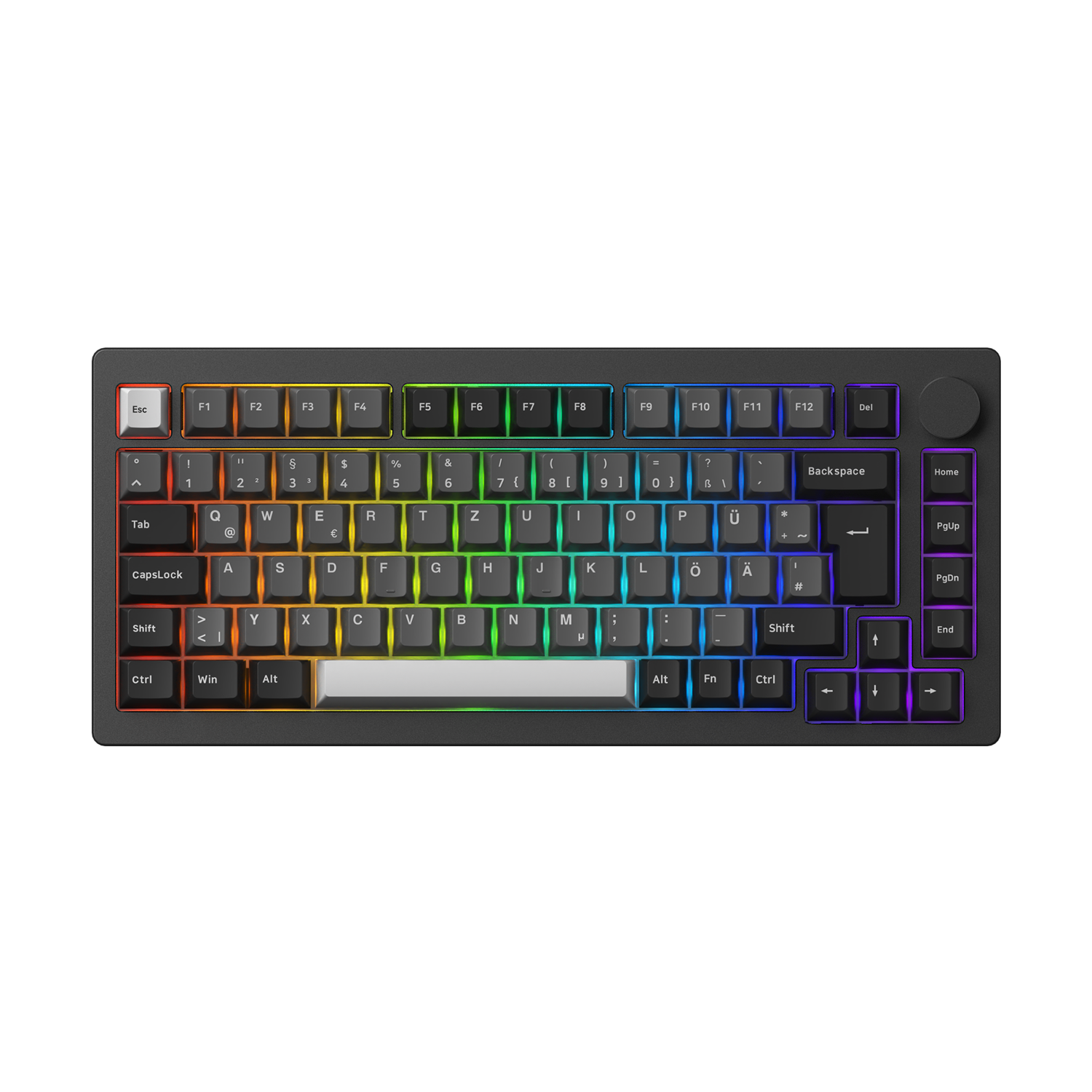

MonsGeek M1W V3 Black VIA Keyboard
MonsGeek M1W V3 VIA Keyboard Prezzo scontato€154,69
MonsGeek M1W V3 SP
MonsGeek M1W V3 SP Prezzo scontatoA partire da €118,99
MonsGeek M1W V3 Black VIA Keyboard
MonsGeek M1W V3 VIA Keyboard Prezzo scontato€154,69
MonsGeek M1W V3 SP
MonsGeek M1W V3 SP Prezzo scontatoA partire da €118,99
Type:

Fully Assembled

Fully Assembled

Fully Assembled

Quick Disassembly:

Support

N/A

N/A

Layout:

ISO-DE/UK/Nordic
US-ANSI

US-ANSI

ISO-DE/UK/Nordic
US-ANSI

Structure:

Gasket Mount

Gasket Mount

Gasket Mount

Connection:

Bluetooth5.0 / 2.4GHz / USB Type-C

Bluetooth5.0 / 2.4GHz / USB Type-C

Bluetooth5.0 / 2.4GHz / USB Type-C
