1800 compact 98-key aluminum DIY Kit.
MonsGeek M2 DIY Kit
M2 is a 1800 compact QMK and south-facing aluminum barebone keyboard.
1800 compact layout are efficient, and ideal for users who want to maintain the full-size of the keyboard while save desk space.
Note: M2 requires 2 x 1.5u function keys (ALT/FN) at R1. It is compatible with Akko MDA / SAL profile keycaps. Given M2 intl’ version is QMK programmable, users can literally program any key; hence, any keycap sets with alternate 1.5u R1 keys are theoretically compatible with M2 such as Marrs Green, World Tour Tokyo Cherry Profile etc.
Disclaimer: we do NOT sell domestic non-QMK version on global store. All M series model you see are international version exclusive.
Stabilizers
PCB Mount/Screw-in stabilizers tend to vibrate less. M2 uses Akko transparent white stabilizers (un-assembled) with nylon housing in case users want to lubricate.

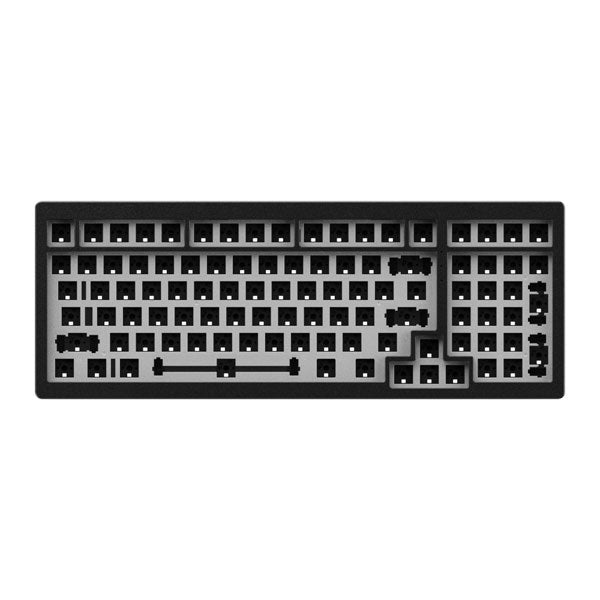

South-facing PCB
The south-facing PCB of the M2 avoids causing interference with Cherry profile keycaps, offering more compatibility and flexibility.

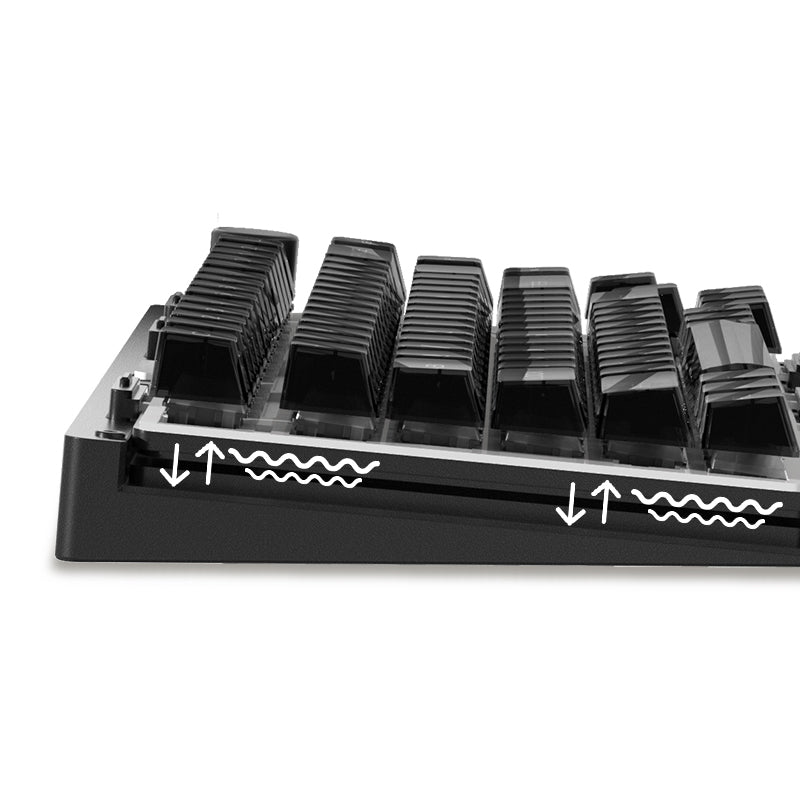

Gasket Mounted Style
With the Gasket-mounted structure, the isolation between the plate and the case gives a unique sound and feel compared to other mounting styles.

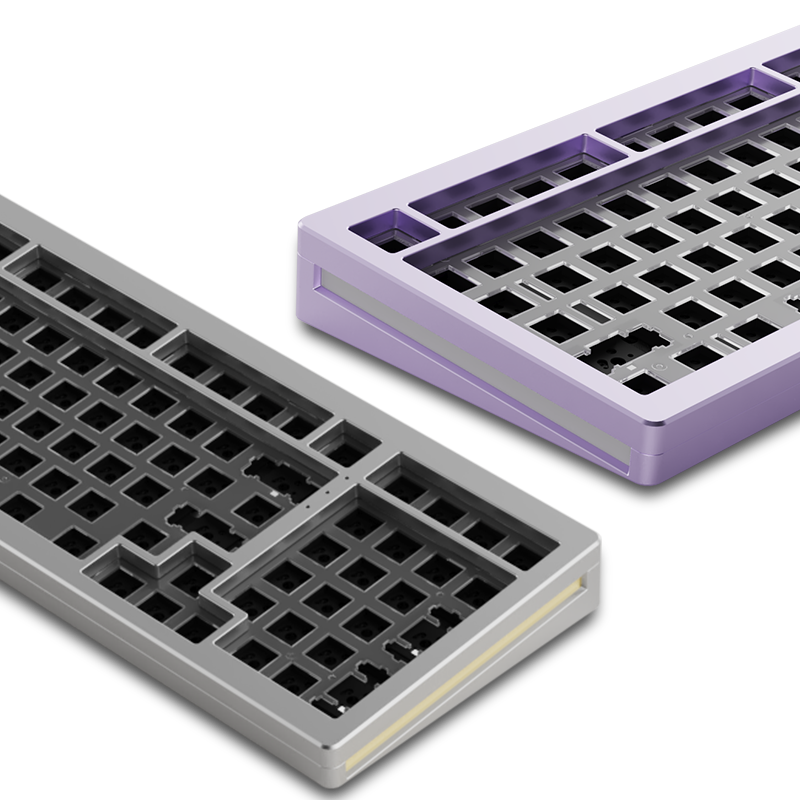

New Silver Accent
Adding a touch of class and elegance, we opted to add a beautiful silver accent so that no matter which way you look at it, you’ll fall in love over and over again.

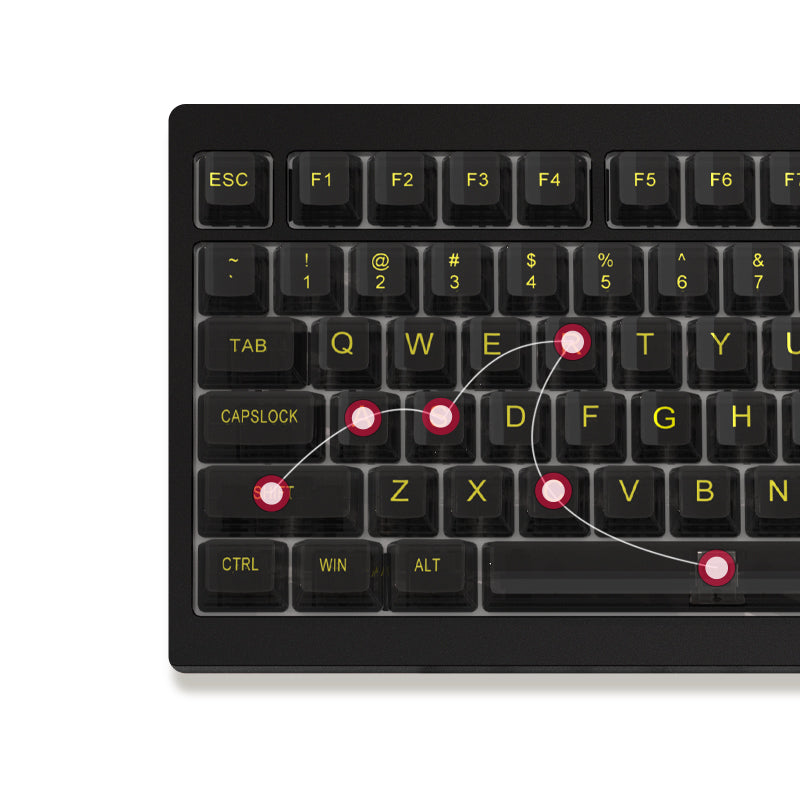

N-Key Rollover
The N-Key Rollover technology allows all keys to work simultaneously and ensures every keystroke is recorded and prevents ghosting.

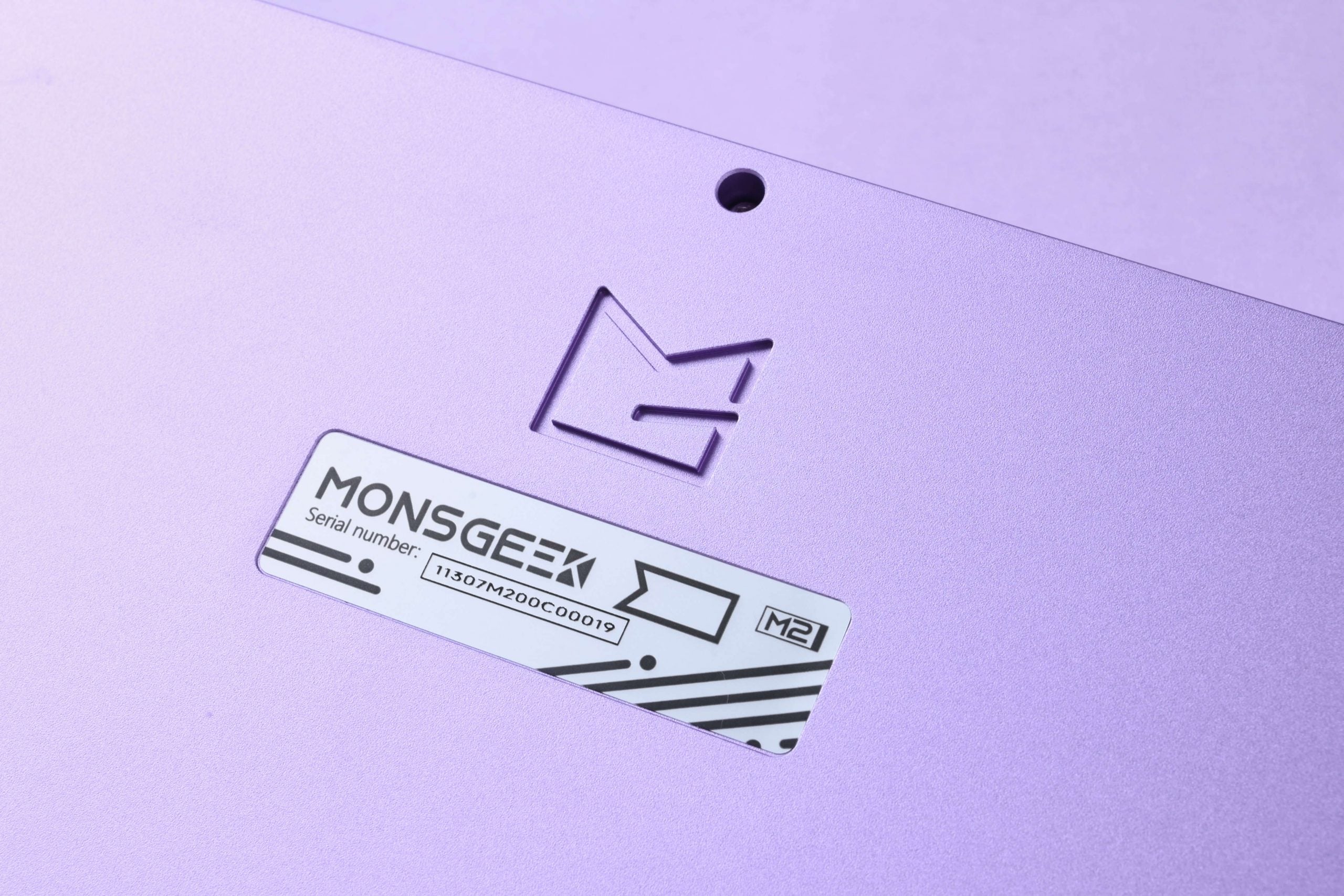

Engraved Back Design
M2 Aluminum Kit QMK version has adopted the new engraved back design with a re-sized sticker for aesthetics purposes.
QMK / VIA Support
MonsGeek M1 supports VIA for cross-platform (Linux/Mac/Windows) advanced keyboard configuration.
This feature is exclusively for international version of M1.
Need More Foam?
Monsgeek has developed its own budget custom material that performs equally as well as poron. Meanwhile, MonsGeek M2 custom kit comes with an additional sponage case foam to reduce case ping.
*Disclaimer: Using thicker foam may reduce flex, whether to include it or not is down to your personal preference.
PET Insulation Layer
A PET insulation layer has been added to the bottom case in order to prevent any short circuit issues. It’s rare for these issues to occur but we want to add extra protection.
MonsGeek M Series QC DisclaimerAccessories to Play With
Extra teflon pads included for users who wish to perform a force break mod.
Extra tape for users who wish to perform a tape mod.
MonsGeek includes a default 3mm custom-made foam for a balanced feeling. Disclaimer: the foam will affect the overall sound profile and flex.
MonsGeek M2 QMK DIY Kit
Specs
Learn more about the MonsGeek M2 QMK DIY Kit in the user manual.
User ManualGasket Mount
Aluminum CNC
Mac & Windows & Linux
USB-C Wired
South-facing RGB
Support (5-pin & 3-pin)
1.6mm
PC
MonsGeek Custom Material
IXPE
MonsGeek Custom Material 3mm
Y
Y (not pre-installed)
Akko Screw-in Stabilizer (pre-clipped, but not pre-installed, 4*2u+1*6.25u)
Teflon Pads (not pre-installed)
VIA/QMK
Coiled Cable
39.1cm*14.6cm*3.27cm
Around 2100g
