MonsGeek M1 V5 VIA Benutzerdefinierte mechanische Tastatur

DE-Aktie
Angebot€151,71 Regulärer Preis€178,49
Spare 15%

inkl. MwSt. Versandkosten werden an der Kasse berechnet

SKU: 6975351385769
💜 Akko 10th Anniv. - ISO Keyboards Deal
Excluded from other promotions.
00 DAYS
00 HRS
00 MIN
00 SEC

Other M1 V5 Series:VIA ISO
Thema- Layout: ISO-DE/UK/Nordic
Schalter: Akko Rosewood Switch
Lagerhaus: Germany(DE) Warehouse
Auf Lager

75 % schnell zerlegbare mechanische Tastatur aus Aluminium mit Knopf

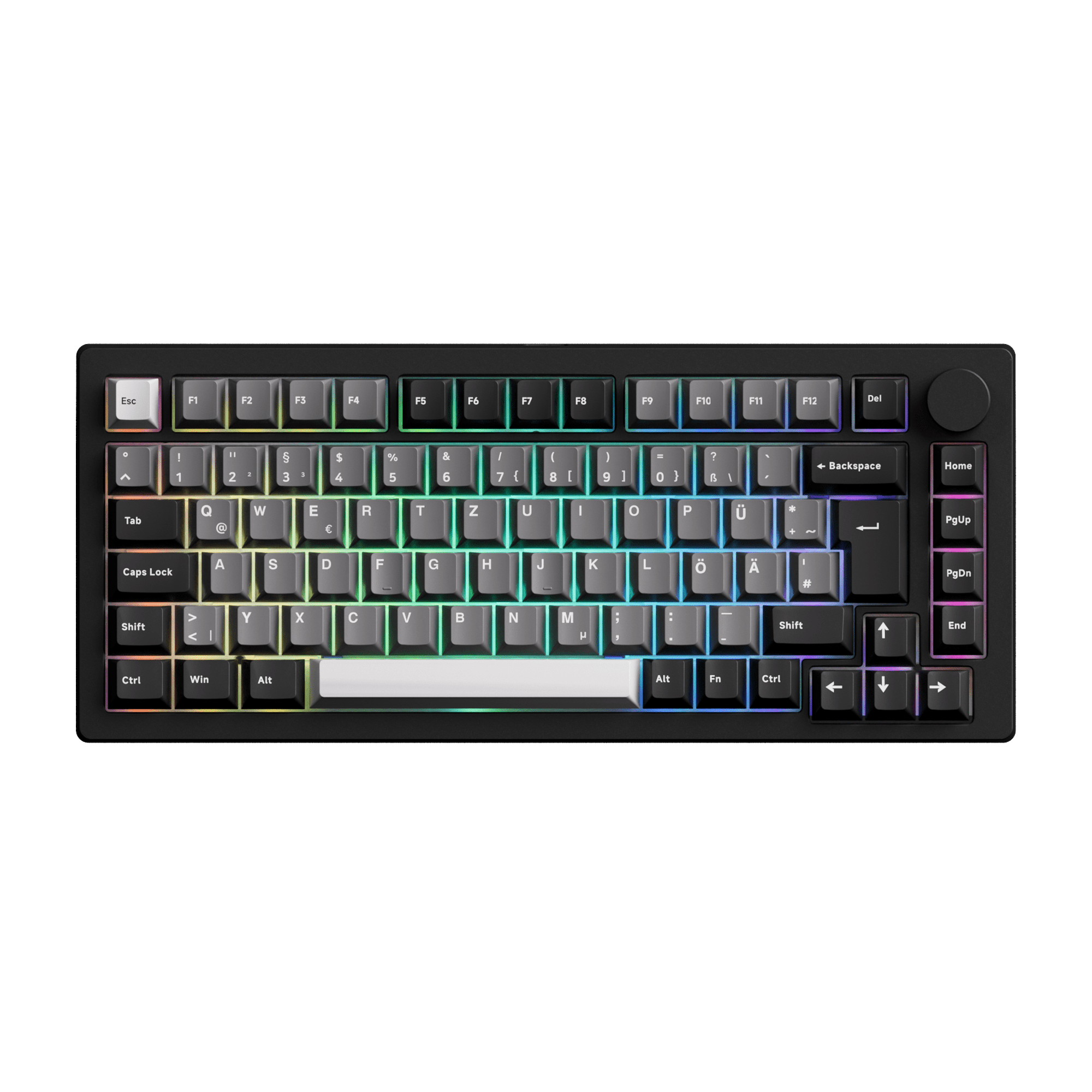

MonsGeek M1 V5 VIA Benutzerdefinierte mechanische Tastatur

Die benutzerdefinierte mechanische Tastatur MonsGeek M1 V5 VIA verfügt über ein Kugelfangdesign, das eine schnelle Demontage und bequeme Wartung ermöglicht.

So wird auch für Anfänger der eigenständige Aufbau eines Keyboards leicht gemacht.

Kugelfang-Design

Schnelle Demontage ohne Schrauben oder Werkzeug

Anders als typische mechanische Tastaturen mit Schraubbefestigung verfügt die M1 V5-Serie über einen Kugelverschluss zur Sicherung des Gehäuses und eine einstellbare Belastungskraft, die zur Erhöhung der Sicherheit und Stabilität durch Anziehen der Schrauben während der Installation geändert werden kann.

MonsGeek M1 V5 VIA Custom Mechanical Keyboard

Vor

MonsGeek M1 V5 VIA Custom Mechanical Keyboard PCB

Nach

Ziehen

Endloses Neuzuordnen und Anpassen der Hintergrundbeleuchtung

VIA für erweiterte Tastaturanpassungen.

VIA-Konfiguration in Wired Json-Datei (V5-ISO) JSON-Datei (V5-ANSI) Quellcode
Built-in 8000mAh battery of MonsGeek M1 V5 VIA Custom Mechanical Keyboard

Eingebauter 8000mAh Akku

Dank eines Akkus mit hoher Kapazität von etwa 8000 mAh können Benutzer über längere Zeiträume ununterbrochen tippen, spielen oder produktiv arbeiten, ohne ständig nachladen zu müssen.

RGB-Ein: 86 Stunden
RGB-AUS: 500 Stunden
Hinweis: Diese Daten stammen von MonsGeek Labs und die spezifische Verwendung variiert von Person zu Person.

RGB Backlit of MonsGeek M1 V5 VIA Custom Mechanical Keyboard

RGB-Hintergrundbeleuchtung

Mit der M1 V5 VIA-Serie können Sie dank guter Hintergrundbeleuchtung auch im Dunkeln tippen. Sie verfügt über mehr als 15 voreingestellte Hintergrundbeleuchtungsmodi.

Erstellen Sie mit der VIA-Konfiguration benutzerdefinierte Lichteffekte und profitieren Sie von einer Reihe von Farben, anpassbarer Helligkeit und Animationsgeschwindigkeit.

Akko V3 Piano Pro Switch verfügt über einen LED-Diffusor für 30 % hellere RGB-Beleuchtung

Dichtungshalterung

Die MonsGeek-Tastatur mit Dichtungsmontage ist eine Art mechanische Tastatur, die ein Dichtungsmaterial wie Silikon oder Neopren verwendet, um eine „schwebende“ Montage für die Schalter zu schaffen. Die Dichtung wird zwischen der Platte und der Leiterplatte platziert, was ein flexibleres und gepolsterteres Tippgefühl ermöglicht.

5-polig, Hot-Swap-fähig

Die nach Süden ausgerichtete Leiterplatte der M1 V5-Serie verhindert Interferenzen mit Cherry-Profil-Tastenkappen während der Anpassung und bietet so mehr Kompatibilität und Flexibilität. Unterstützt 5-poligen Hot-Swap-fähigen Anschluss. Mit hochwertigen 5-poligen Hot-Swap-fähigen Buchsen für einfache Schalterwechsel.

Programmierbarer Knopf

Diese Änderung ist das Ergebnis von Benutzereingaben und -feedback. Die M1 V5-Serie verfügt über einen neuen Encoder und ein schwebendes Design, um Kratzer auf dem Gehäuse zu vermeiden, wie es beim Vorgängermodell der Fall war.

Steuern Sie Lautstärke und Beleuchtung ganz einfach und programmieren Sie andere Funktionen.

MonsGeek M1 V5 VIA Custom Mechanical Keyboard support multi-mode

M1 V5 Multi-Modus

Ermöglicht einfaches Umschalten zwischen kabelgebundenem, Bluetooth- und 2,4-GHz-Wireless-Modus für ein reibungsloses Erlebnis auf allen Geräten. Diese vielseitige Tastatur ist mit Windows und Mac kompatibel und bietet außergewöhnliche Leistung und Komfort. Steigern Sie die Produktivität mit dieser anpassbaren Tastatur.

2,4 GHz kabellos

Ausgestattet mit einem Empfänger, der es Benutzern ermöglicht, den 2,4-GHz-Funkmodus zu nutzen und so eine geringe Latenzzeit bereitzustellen, die zum Spielen und Tippen geeignet ist.

BT 5.0

Mit einer einfachen Fn+E/R/T-Kombination können Sie problemlos bis zu 3 Geräte verbinden. So ist ein nahtloses Wechseln zwischen Tablets, Computern und Telefonen möglich.

USB-C-Kabelmodus

Gewährleistet konsistente und schnelle Reaktionszeiten für FPS-Gaming und minimale Eingabeverzögerung.

Size of MonsGeek M1 V5 VIA Custom Mechanical Keyboard

Switches SPEC

Akko V3 Piano Pro Switch

Akko V3 Piano Pro

Typ: Linear
Betriebskraft: 45±5gf
Endkraft: 50±5gf
Gesamtweg: 3,1 mm
Vorlauf: 1,9 ± 0,5 mm

akko rosewood switch

Akko-Palisander

Typ: Linear
Betriebskraft: 40±5gf
Gesamtweg: 4,0 mm
Vorlauf: 2,0 ± 0,5 mm
Gesamtweg: 4,0 mm

Akko Creamy Cyan Switch Close View

Akko Creme Cyan

Typ: Clicky
Betriebskraft: 50±7gf
Gesamtweg: 4,0 ± 0,2 mm
Vorlauf: 2,0 ± 0,6 mm
Tastweg: 1,3 mm
Taktile Kraft: 65±7gf

creamy purplr pro switch

Akko V3 Creamy Purple Pro

Typ: Taktil
Betriebskraft: 30±5gf
Vorlauf: 2,0 ± 0,6 mm
Gesamtweg: 3,0 mm
Tastweg: 0,5 mm
Taktile Kraft: 55±5gf

Systemschalter

Oben: Mac Wireless-Modus (integriertes Netzteil eingeschaltet)
Mitte: Standardmäßiger kabelgebundener Windows-Modus (integriertes Netzteil aus)
Unten: Windows Wireless-Modus (integriertes Netzteil eingeschaltet)

Hinweis: Der Schalter befindet sich unter der Feststelltaste

PORON Plattenschaum

Die M1 V5-Serie ist mit PORON-Plattenschaum ausgestattet, der die von Tastenschaltern erzeugten Geräusche wirksam reduziert und so ein reineres und komfortableres Klangerlebnis für die Tastatur gewährleistet.

MonsGeek M1 V5 VIA Custom Mechanical Keyboard system switch

Systemschalter

Oben: Mac Wireless-Modus (integriertes Netzteil eingeschaltet)
Mitte: Standardmäßiger kabelgebundener Windows-Modus (integriertes Netzteil aus)
Unten: Windows Wireless-Modus (integriertes Netzteil eingeschaltet)

Hinweis: Der Schalter befindet sich unter der Feststelltaste

Poron Plate Foam of MonsGeek M1 V5 VIA Custom Mechanical Keyboard

PORON Plattenschaum

MonsGeek M1 V5 VIA Benutzerdefinierte mechanische Tastatur ist mit PORON-Plattenschaum ausgestattet, der die von Tastenschaltern erzeugten Geräusche wirksam reduziert und so ein reineres und angenehmeres Klangerlebnis für die Tastatur gewährleistet.

MonsGeek M1 V5 VIA Custom Mechanical Keyboard PCB

Polycarbonatplatte

MonsGeek M1 V5 VIA Benutzerdefinierte mechanische Tastatur verwendet eine transparente PC-Platte, um eine größere Flexibilität als Metall zu bieten und gleichzeitig die niederfrequente Resonanz zu reduzieren.

MonsGeek M1 V5 VIA Custom Mechanical Keyboard Internal Structure

Mehr Flexibilität und besserer Klang

Die MonsGeek M1 V5-Serie verfügt über ein umfassendes Upgrade des Rauschunterdrückungssystems und bietet mehr Flexibilität zum Experimentieren mit einer Vielzahl von Klangprofilen.

Haftungsausschluss für die Qualitätskontrolle der MonsGeek M-Serie
Close view for MonsGeek M1 V5 VIA Custom Mechanical Keyboard

Vergleichen

Spezifikationen

NeuMonsGeek M1 V5 VIA Custom Mechanical Keyboard ISO Layout
MonsGeek M1 V5 VIA Benutzerdefinierte mechanische Tastatur Angebot€151,71 Regulärer Preis€178,49
MonsGeek M1W V3 SP
MonsGeek M1W V3 SP Angebotab €118,99
NeuMonsGeek M1 V5 VIA Custom Mechanical Keyboard ISO Layout
MonsGeek M1 V5 VIA Benutzerdefinierte mechanische Tastatur Angebot€151,71 Regulärer Preis€178,49
MonsGeek M1W V3 SP
MonsGeek M1W V3 SP Angebotab €118,99
Typ:

Komplett montiert

Komplett montiert

Komplett montiert

Struktur:

Dichtungshalterung

N / A

N / A

Verbindung:

Bluetooth5.0 / 2,4 GHz / USB Typ-C

US-ANSI

ISO-DE/UK/Nordisch
US-ANSI

Hintergrundbeleuchtung:

Nach Süden ausgerichtetes RGB

Dichtungshalterung

Dichtungshalterung

Hot-Swap-fähig:

3-Pin / 5-Pin-Unterstützung

Bluetooth5.0 / 2,4 GHz / USB Typ-C

Bluetooth5.0 / 2,4 GHz / USB Typ-C
