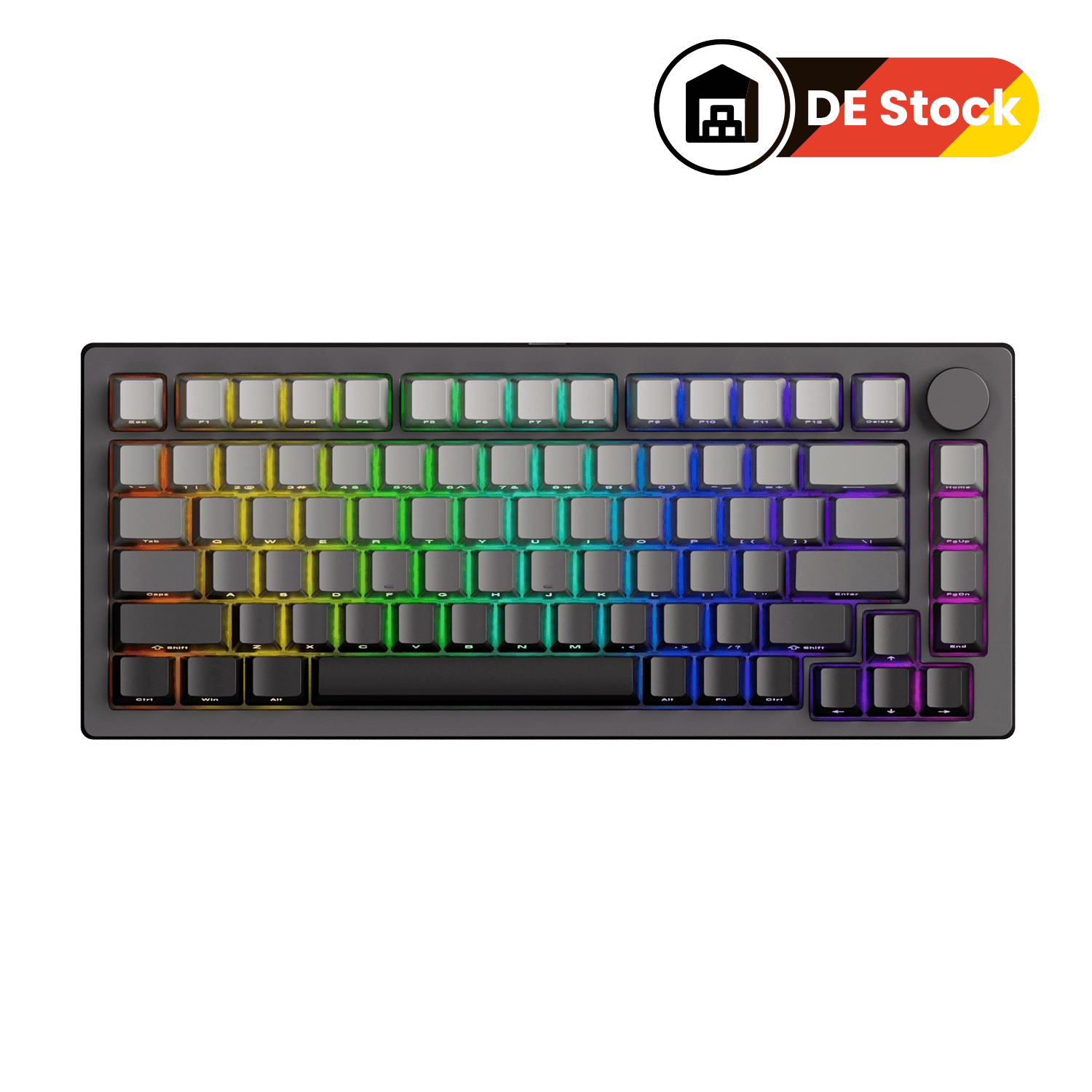

MonsGeek M1 V5 TMR Magnetic Keyboard

DE Stock
Sale price€214,19

Tax included. Shipping calculated at checkout

SKU: 6975351386483

Layout: US-ANSI
Switch: Akko Astrolink Magnetic Switch
Warehouse: Default
Re-stocking soon

Restocking soon means that the item be pre-purchased only, or the dispatch will occur at the specified time for another reason.

Full Range 0.01mm RT | Cross-compatible | MagMech Compatible | Rapid Disassemble

M1 V5 TMR Megnatic Switch Keyboard

Black MonsGeek M1 V5 SP Mechanical Keyboard Rapid Disassemble Design

Ball-catch Design

Rapid Disassemble without Screws or Tools

Unlike typical screw-on mechanical keyboards, the M1 V5 Series features a ball catch to secure the case and adjustable load force that can be modified by tightening screws during installation for enhanced safety and stability.

Note: Before dissemble the top cover, please use the included key puller to pull out the knob.

Cross-Compatible with Mainstream Magnetic Switches

MonsGeek M1 V5 TMR Magnetic Keyboard provides compatibility with 5 third-party magnetic switches. Users can choose the appropriate switch from the MonsGeek Driver list and calibrate the keyboard easily after replacement. Mixing and matching them in different keys is also possible.

Disclaimer: High-percision switches require tuning and experimenting with the keyboard. The switches listed are guaranteed to perform at 0.01mm precision. Other switches may work but are unable to reach the claimed accuracy.

MagMech:  Compatible with Magnetic Switches and Mechanical Switches

Users can mix and match magnetic switches and any 5-pin mechanical switches freely, like never before!

Imagine having only WASD / Arrow keys swapped for magnetic switches and leaving the rest for mechanical for a classic mechanical typing experience. What a dream!

Full Range RT0.01mm

Attain ultra-precise 0.01mm Rapid Trigger and adjustable actuation distance in 0.01mm steps. Users can adjust their typing or gaming experience for faster response times and improved accuracy, perfect for competitive gaming.

Monsgeek FUN60 ARM Cortex-M4 CPU

ARM Cortex-M4 CPU

The powerful CPU delivers enhanced processing power with low energy consumption. It features automatic calibration between -20°C and 80°C, ensuring faster performance and extended battery life (for wireless models only).

Universal 8K Polling Rate

With an 8000Hz polling rate for all keys in wired or 2.4Gwireless modes, enjoy ultra-fast response times and smoother, more precise inputs—perfect for gaming and high-performance tasks.

Classic Features

Monsgeek FUN60 Snap Key

Snap Key

Snap Key is MonsGeek’s implementation of SOCD, which prioritizes the most recent keypress for swift directional changes without releasing previous inputs. This ensures fluid and responsive control, especially in FPS games, where quick reactions and precise movements are crucial.

Monsgeek FUN60 Adjustable Actuation Distance

Adjustable Actuation Distance

These magnetic switches allow users to adjust every key’s actuation point from 0.1mm to 3.4mm, which offers different kinds of pressing for gaming or typing.

Monsgeek FUN60 Rapid Trigger

Rapid Trigger (RT)

Rapid Trigger dynamically changes the keys’ actuation and deactivation points. Through the MonsGeek Driver, users can choose “All Buttons” or “Per Button” customization modes, as well as activate “Non-stop Rapid Trigger” for near-instant key response. This gives FPS gamers a competitive edge in fast-paced gameplay.

For example, when gamers enable RT, they can achieve “Counter-Strafe“ in VALORANT games.

Monsgeek FUN60 Dynamic Keystrokes

Dynamic Keystrokes (DKS)

Pressing a key can trigger four different key operations.

Depending on your keypress force: a light press triggers action 1, a deeper press activates action 2, and releasing the key also supports a two-stage key setting.

Monsgeek FUN60 Toggle Key (TGL)

Toggle Key (TGL)

TGL, or Toggle Key, transforms a key into a toggle switch. When you press this switch, you can activate one of two scenarios: either continuously hold down the key/function, or trigger the key/function multiple times at a high frequency.

Monsgeek FUN60 Mod-Tap

Mod-Tap

Mod-Tap is a design that provides convenience for gaming. It enables the creation of dedicated or dual-functional keys based on key press behavior.

A single keypress can achieve two functions: holding down the key for one function, and press the key for another.

Akko Astrolink Magnetic Switch

Akko Astrolink Magnetic Switch

  • Type: Linear
  • Total Travel: 3.4mm
  • Initial Force: 36±5gf
  • End Force: 46gf
  • Initial Magnetic Flux: 90±15Gs(PCB1.6mm) / 100±15Gs(PCB1.2mm)
  • Bottom-out Magnetic Flux: 480±40Gs(PCB1.6mm) / 640±40Gs(PCB1.2mm)
  • Top/Stem/Bottom: POM/PC/Nylon
  • LED Diffuser

These switches comes with extra pins for stabilizing, reversed polarity, and closed bottom for a better sound profile.

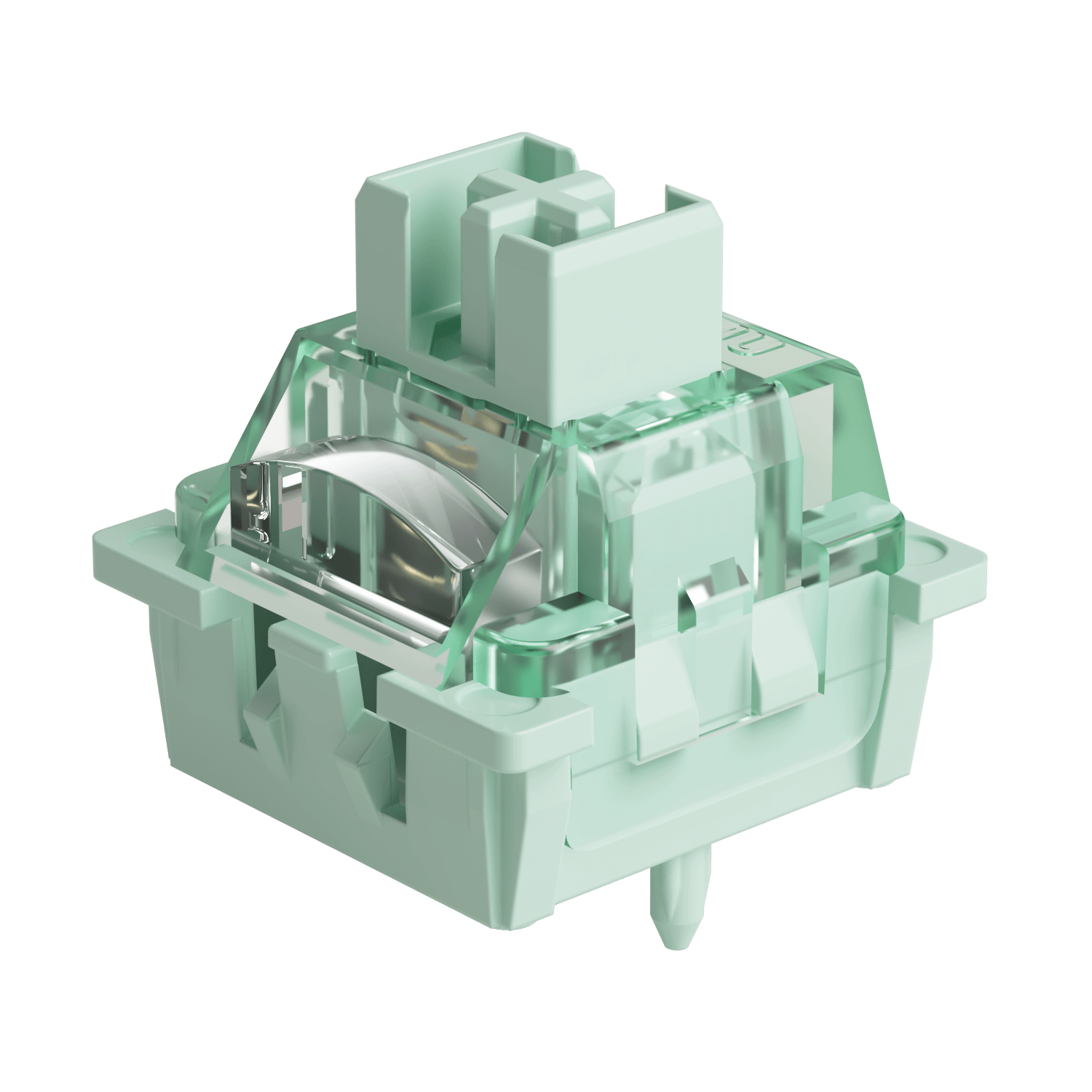

Akko Glare Magnetic Switch

Akko Glare Magnetic Switch

  • Type: Linear
  • Total Travel: 3.4mm
  • Operating Force: 25gf Min
  • Actuation force at 2.0mm Travel: 40±5gf
  • End Force: 48gf Max
  • Initial Magnetic Flux: 95+15GS (PcB1.6mm)
  • Bottom Magnetic Flux: 589+50GS (PcB1.6mm)
  • Top/Stem/Bottom: PC/POM/PC
  • LED Diffuser

These switches comes with extra pins for stabilizing, reversed polarity, and closed bottom for a better sound profile.

Built-in 8000mAh Battery

With a high-capacity battery of around 8000mAh, users can enjoy prolonged periods of uninterrupted typing, gaming, or productivity without the need for constant recharging.

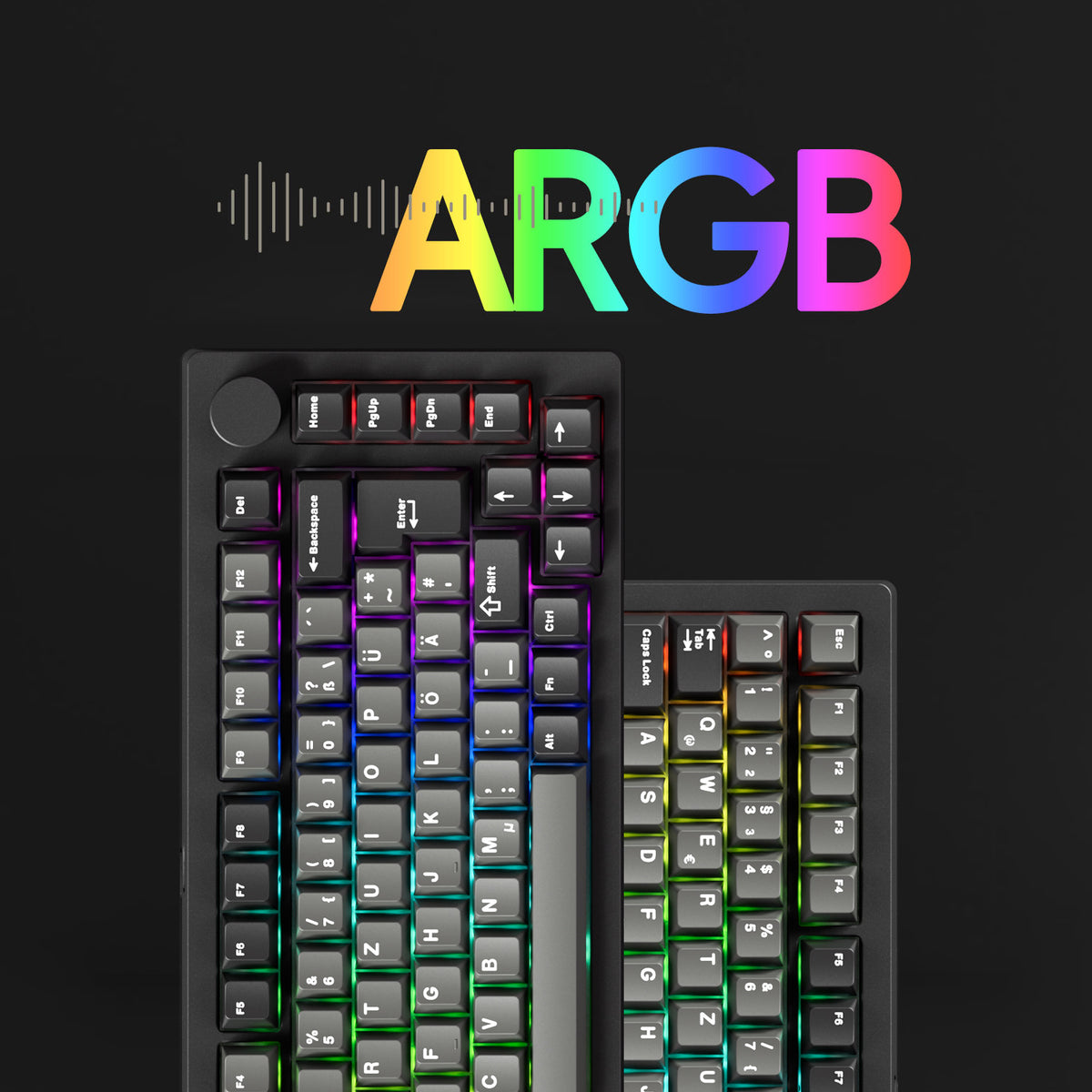

RGB

MonsGeek M1 V5 TMR Magnetic Keyboard can help you type in the dark with decent backlit. It has over 15 preset backlighting modes.

Glare magnetic switch features LED diffuser for 30% brighter RGB lighting.

Programable Knob

M1 V5 Series includes a fresh encoder and a floating design to prevent scratches on the case, as indicated in the earlier model.

Easily control the volume and lighting and program to other funtions.

PBT Double-shot Keycaps

Keycaps from MonsGeek M1 V5 TMR Magnetic Keyboard are made of durable PBT double-shot, which helps resist the shine that occurs from oils and sweat on the fingers.

MonsGeek M1 V5 TMR Magnetic Keyboard Multi-Mode

MonsGeek M1 V5 TMR Magnetic Keyboard features a 75% layout and is equipped with 8000mAh built-in battery, providing extended, uninterrupted typing, gaming, or productivity without the need for frequent recharging.

2.4Ghz Wireless

Equipped with a receiver that allows users to utilize the 2.4GHz wireless mode, providing low latency suitable for gaming and typing purposes.

BT 5.0

Easy to connect up to 3 devices with a simple Fn+E/R/T combination, enabling seamless switching between tablets, computers, and phones.

USB-C Wired

Offer a choice for users who prefer a USB-C wired keyboard, ensuring consistent and rapid response times for FPS gaming and minimal input lag.

MonsGeek M1 V5 VIA Custom Mechanical Keyboard system switch

System Switch

Top: Mac Wireless Mode (built-in power supply on)
Middle: Default Windows Wired Mode (built-in power supply off)
Bottom: Windows Wireless Mode (built-in power supply on)

Note: The switch is located under the CAPS key

Poron Plate Foam of MonsGeek M1 V5 VIA Custom Mechanical Keyboard

PORON Plate Foam

MonsGeek M1 V5 TMR Magnetic Keyboard is equipped with PORON plate foam, effectively reducing the noise generated by key switches, ensuring a purer and more comfortable tactile sound experience for the keyboard.

MonsGeek M1 V5 VIA Custom Mechanical Keyboard PCB

Polycarbonate Plate

MonsGeek M1 V5 TMR Magnetic Keyboard utilizes a transparent PC plate to offer flexibility surpassing that of metal, while also reducing low-frequency resonance.

More Flexibility and Sounds Better

MonsGeek M1 V5 TMR Magnetic Keyboard come with a comprehensive upgrade to the noise reduction system, offering greater flexibility for experimenting with a variety of sound profiles.

MonsGeek M Series QC Disclaimer

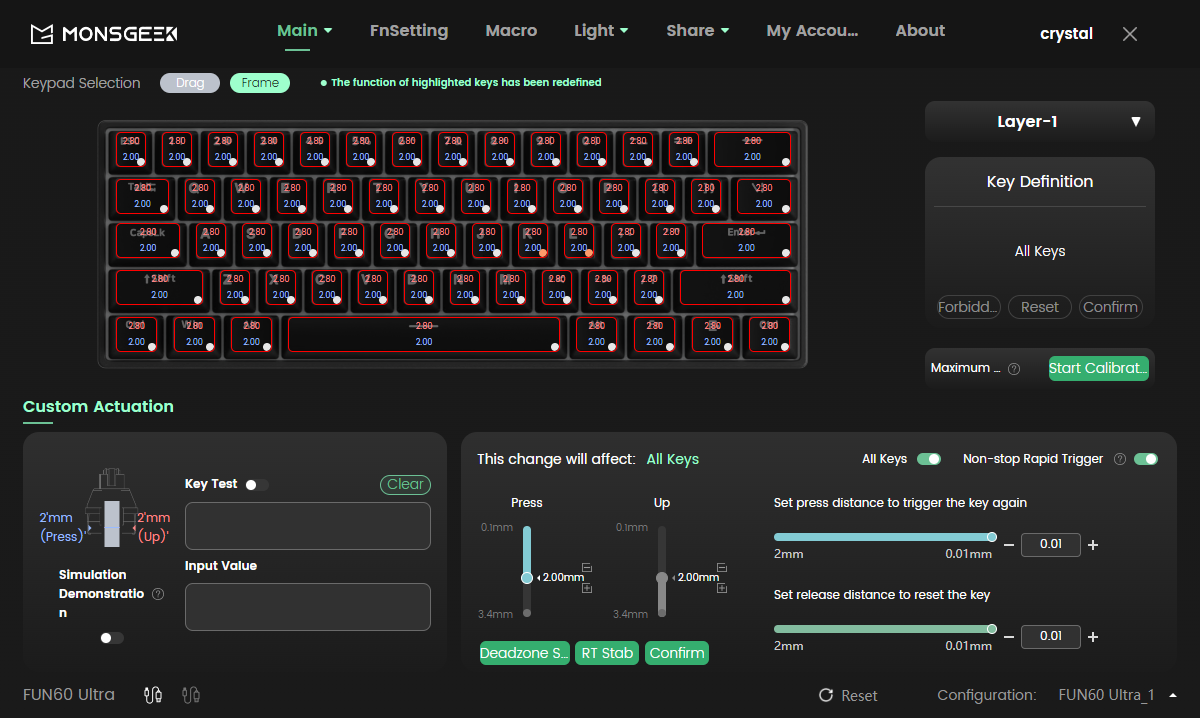

Web-based Online Driver

Endless Remapping and Backlight Customization

Online Driver

Compare

TECH SPECS

Model:

M1 V5 TMR

M1 V5 VIA

M1 V5

Mount:

Gasket Mount

Gasket Mount

Gasket Mount

Case Material:

Aluminum CNC

Aluminum CNC

Aluminum CNC

Layout:

US-ANSI

ISO-DE/UK/Nordic;
US-ANSI

US-ANSI

Connectivity:

Bluetooth5.0 / 2.4GHz / USB Type-C

Bluetooth5.0 / 2.4GHz / USB Type-C

Bluetooth5.0 / 2.4GHz / USB Type-C

Battery:

8000mAh

8000mAh

8000mAh

LED:

South-facing RGB

South-facing RGB

South-facing RGB
