AKKO

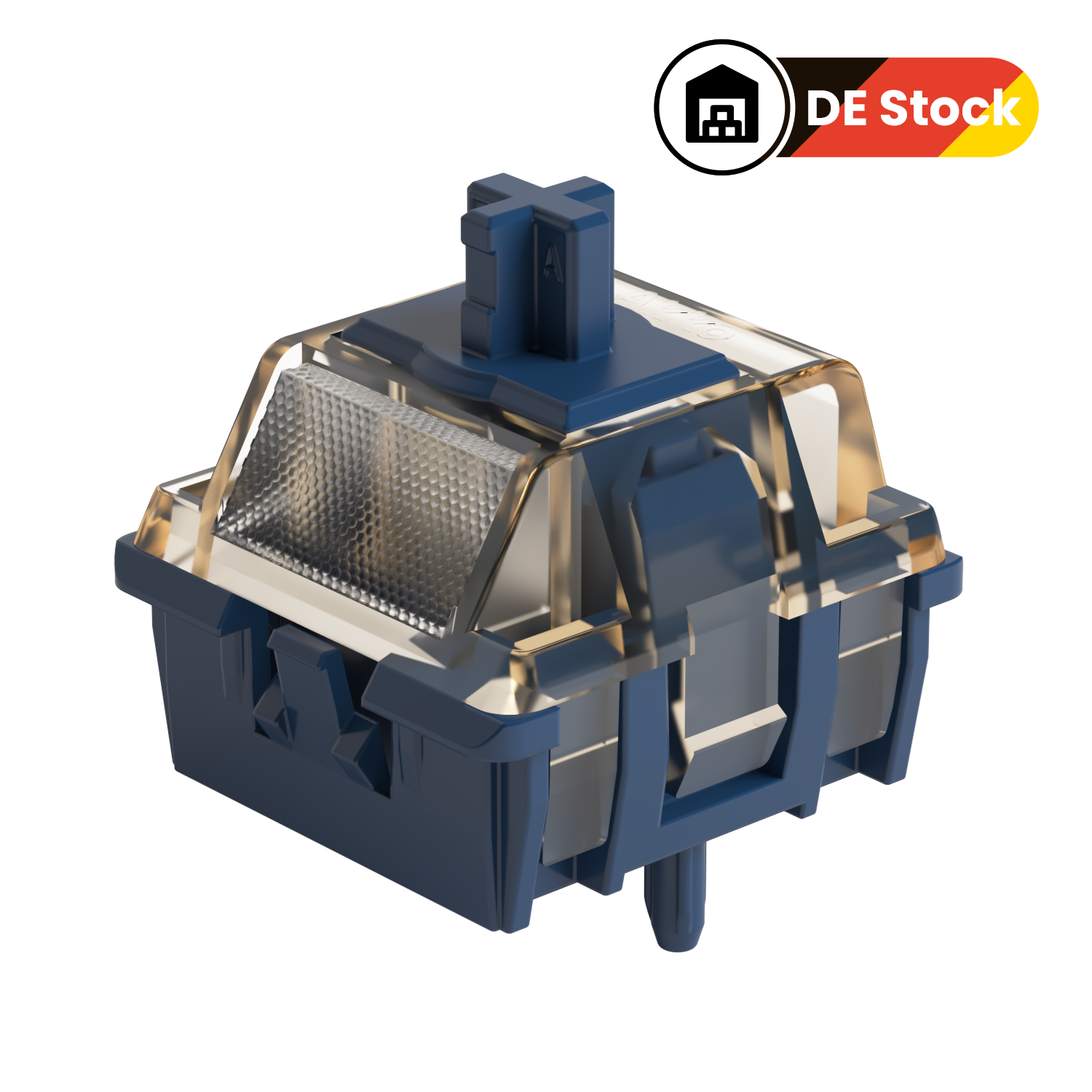

Akko Astrolink Magnetic Switch

Name: Akko Astrolink Magnetic Switch
Rating: 4.71 (7 reviews)

DE Stock

€5,94

Tax included. Shipping calculated at checkout

SKU: 6978414650279

Quantity: 6 pcs

6 pcs 45 pcs 90 pcs

Warehouse: Default(CN) Warehouse

Default(CN) Warehouse Germany(DE) Warehouse

Quantity:

In stock

Compatibility

Astrolink switches are compatible with MonsGeek FUN60 Pro & Max HE, FUN60 Ultra HE, FUN60 Ultra TMR, and M1 V5 TMR Magnetic Switch Keyboards, achieving 0.01mm precision. They are NOT compatible with MX mechanical switch PCBs as well as S-pole magnetic switches PCBs.

They should also theoretically be compatible with other downward-facing N-pole magnetic switches. More tests will be rolled out.

Akko Switch Guide

Open in a new window

Shipping Policy

We strive to provide you with services of the highest standard!

Default (CN) Warehouse

Products that are not specifically marked with an overseas warehouse option are generally shipped from our Default (CN) Warehouse.

The Default (CN) Warehouse currently supports shipping to the following countries and regions:

Australia, Austria, Belgium, Bulgaria, Canada, Colombia, Croatia, Cyprus, Czechia, Denmark, Estonia, Finland, France, Germany, Greece, Guatemala, Iceland, Indonesia, Ireland, Italy, Jamaica, Japan, Jersey, Kuwait, Latvia, Lithuania, Luxembourg, Mexico, Mongolia, Netherlands, New Zealand, Norway, Pakistan, Philippines, Poland, Portugal, Qatar, Romania, Russia, Serbia, Singapore, Slovakia, Slovenia, Spain (47 of 52 provinces), Spain (Ceuta), Sri Lanka, Sweden, Switzerland, Taiwan, Thailand, United Kingdom, United States (56 of 62 states), Uzbekistan, and Vietnam.

Most products sold on Akkogear.eu are shipped from China.

For most eligible EU destinations, the estimated delivery time from the Default (CN) Warehouse is approximately 10–20 working days.

This estimate refers to the expected delivery period and should not be interpreted as order processing time.

Germany (DE) Warehouse

The Germany (DE) Warehouse currently supports shipping to:

Austria, Belgium, Bulgaria, Croatia, Czechia, Denmark, Estonia, France, Germany, Greece, Hungary, Italy, Latvia, Lithuania, Luxembourg, Netherlands, Poland, Portugal (18 of 20 regions), Romania, Slovakia, Slovenia, Spain (47 of 52 provinces), and Sweden.

For Germany, the estimated delivery time is approximately 2–3 days by DHL fast delivery.

For other supported European destinations, the estimated delivery time is approximately 6–7 days.

The DE Warehouse does not currently support delivery to the United Kingdom, Ireland, Malta, Cyprus, Switzerland, or other destinations not listed above.

Click Here to View More Details.

Need Help?

Our support team is available to help you within 24 hours.

Contact Us Now →

AKKO Akko Astrolink Magnetic Switch

€5,94

0.01mm Precision | Cross-Device Compatibility | Gamer-Centric Design

Akko Astrolink Magnetic Switch

Light 36gf Initial Force

With a thin layer of factory lubrication

PC housings with POM stem

Light Diffuser - Better RGB Effect

36gf Initial Force | 2-pin | Factory Lubed

Akko Astrolink Magnetic Switch

Type: Linear
Total Travel: 3.4mm
Initial Force: 36 ± 5gf
End Force: 46gf
Initial Magnetic Flux: 90 ± 15Gs(PCB1.6mm) / 100 ± 15Gs(PCB1.2mm)
Bottom-out Magnetic Flux: 480 ± 40Gs(PCB1.6mm) / 640 ± 40Gs(PCB1.2mm)

Akko Astrolink Magnetic Switch

TECH SPECS

Astrolink switches are designed for stable and wobble-free key presses, ensuring accuracy during gaming.

Enjoy the satisfyingly firm bottom-out feel and the clean sound profile.

Featuring a light 36gf initial force, these switches are perfect for gamers who prefer a higher-pitched mechanical style feedback.

Please check the compatibility before purchasing.

Type

Linear

Total Travel

3.4mm

Pre Travel

Custom Defined

Initial Force

36 ± 5gf

End Force

46gf

Initial Magnetic Flux:

90 ± 15Gs(PCB1.6mm) / 100 ± 15Gs(PCB1.2mm)

5 stars: 5 (71%)
4 stars: 2 (29%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

Good overall experience , Lacks in the software

- Very good keycaps with available ISO option.
- Very good overall build quality and good sound profile switch (both AstroAim and Astolink switch's were tested).
- It only lack in the software. Unfortunately ISO version doesn't support VIA and its hard to get the software working with the keyboard. After 2 days of try outs i get it to be recognized and working together with the software.
- The support is very responsive and is available to help.
Final verdict: For the high price payed i was expecting a top notch product in every single way, without software issues or limitations.
Suggestion for others with connecting issues like me (Latest software version wasn't working but the other before is OK)

Really good customer experience

The overall experience was good, package took 15 days to arrive from Chinese warehouse to Europe good pricing and the content of the package arrived with no issues. Bought a FUN60 ultra with some extra magnetic switches, first time using a magnetic keybaord and have to say that software seems to be working fine to the extend i tested it. I will order again from monsgeek in the future, quality of products is really good and customer experience is excellent.

Akko Astrolink Magnetic Switch

Works great

.

Best swichtes

For me, these switches strike the perfect balance between gaming (fast FPS) and typing. Of course, that’s highly subjective, but I find them light enough to press comfortably without being so light that you accidentally trigger keys. On a Hall effect keyboard this matters less, since you can freely set the actuation point, but the overall feel is still very well-balanced.

The switches come pre-lubed from the factory. Since I hand-lubed them anyway and had to open them up, I was able to confirm that each switch had a consistent amount of lube applied (at least visually).

Right out of the box, they sound great, leaning more toward the “clacky” side. After lubing, the sound became much deeper and pleasantly “thocky.” For me, that’s the perfect sound profile. I tested both versions — stock lubed and hand-lubed — and honestly found it hard to choose which I prefer.

Compared to videos I watched on YouTube, they sounded noticeably deeper in my setup, which likely has to do with the keyboard I’m using: a Wooting 80HE with a heavy zinc case.

Build quality also seems excellent. Every switch felt incredibly smooth, with no noticeable wobble or inconsistencies.

perfect

just` exellent

Can these switches be used in the 5075s hotswap?
Se puede usar estos switch en los hotswap de los 5075s?

Akko Europe

Dear Customer,

Thanks for your interest in our products.

This is a magnetic switch that only works for HE keyboards. It incorporates a downward-facing N-pole magnet. Thus, it shall be compatible with HE keyboards with a similar orientation.

Thank you for contacting us with your request and have a nice day!

Best regards,
AKKO EU
