MonsGeek M1 V5 VIA DIY Kit
Tax included. Shipping calculated at checkout
Restocking soon means that the item be pre-purchased only, or the dispatch will occur at the specified time for another reason.
We strive to provide you with services of the highest standard!
The time period for the delivery of an order is divided into two parts: processing time and shipping time. Processing time usually takes up to 48 hours. Shipping times vary depending on the different shipping methods for each product category.
The estimated delivery time is 10~20 days to European countries from China.
Click Here to View More Details.
Our support team is available to help you within 24 hours.
75% Layout | Rapid Disassemble | VIA Support | 8000mAh Battery
MonsGeek M1 V5 VIA DIY Kit
The MonsGeek M1 V5 VIA DIY Kit is the ultimate choice for mechanical keyboard enthusiasts looking to build their dream keyboard. With a compact yet functional 75% layout, this kit strikes the perfect balance between space-saving design and everyday usability. Enjoy seamless assembly and disassembly with this user-friendly kit. Ideal for tinkerers who love experimenting with different components.
Ball-catch Design
Rapid Disassemble without Screws or Tools
Unlike typical screw-on mechanical keyboards, the M1 V5 Series features a ball catch to secure the case and adjustable load force that can be modified by tightening screws during installation for enhanced safety and stability.
Before
After

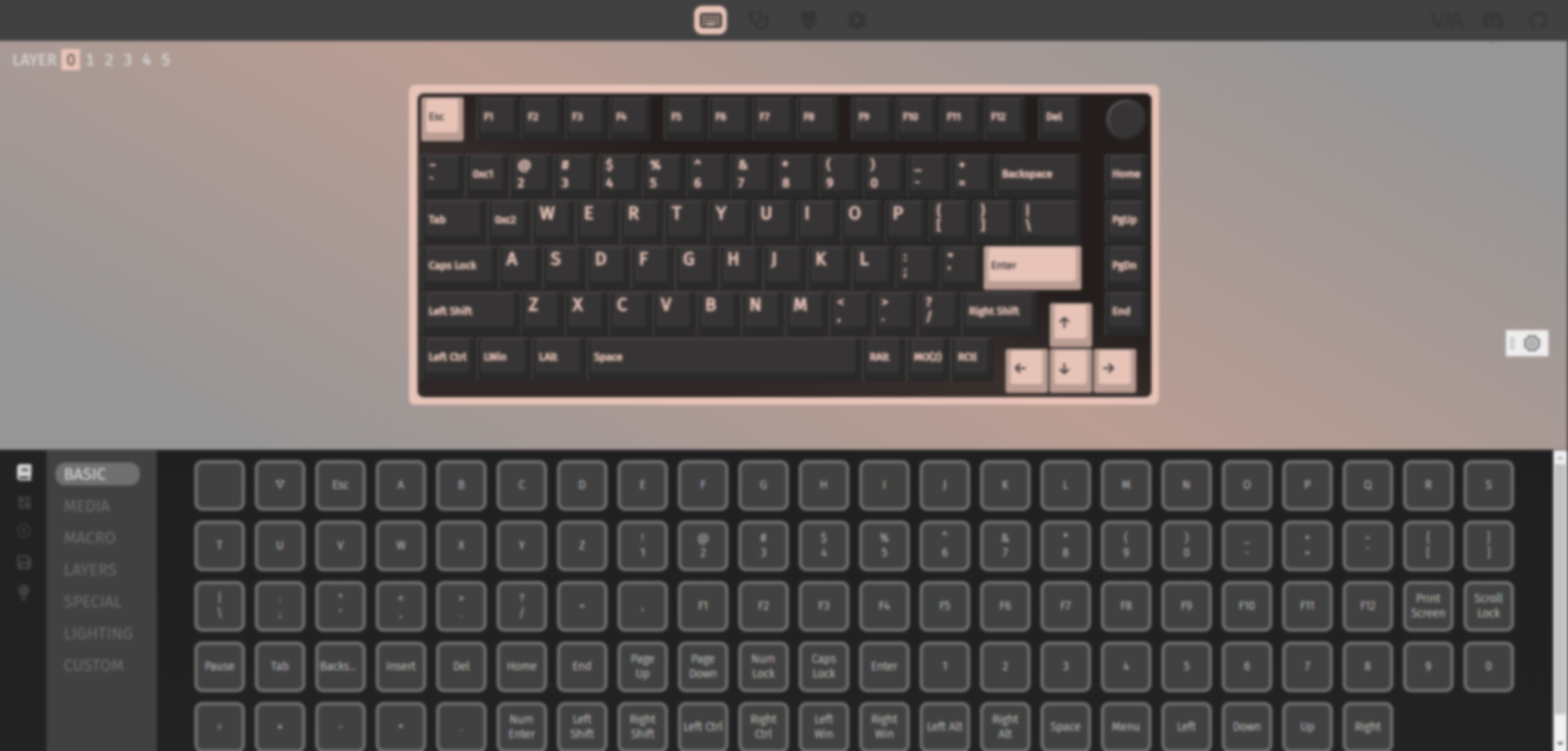

Endless Remapping and Backlight Customization
Built-in 8000mAh Battery
Equipped with a powerful 8000mAh battery, this keyboard ensures extended periods of uninterrupted typing, gaming, or productivity, minimizing the need for frequent recharging.
RGB-ON: 86 Hours
RGB-OFF: 500 Hours
Note: This data comes from MonsGeek Labs, and specific usage varies from person.
RGB Backlit
The M1 V5 VIA Series lets you type effortlessly in the dark with its impressive backlighting. Choose from over 15 preset backlight modes or craft your own custom lighting effects using the VIA Configurator. Enjoy a wide range of colors, adjustable brightness levels, and customizable animation speeds to create your perfect ambiance.
5-pin Hot-swappable
Featuring high-quality hot-swappable sockets for easy switch changes.
The keycaps shown in the image are for reference only and may not represent the final product.
Fully Upgraded
Programable Knob
This modification stems from user input and feedback. M1 V5 Series includes a fresh encoder and a floating design to prevent scratches on the case, as indicated in the earlier model.
Easily control the volume and lighting and program to other funtions.

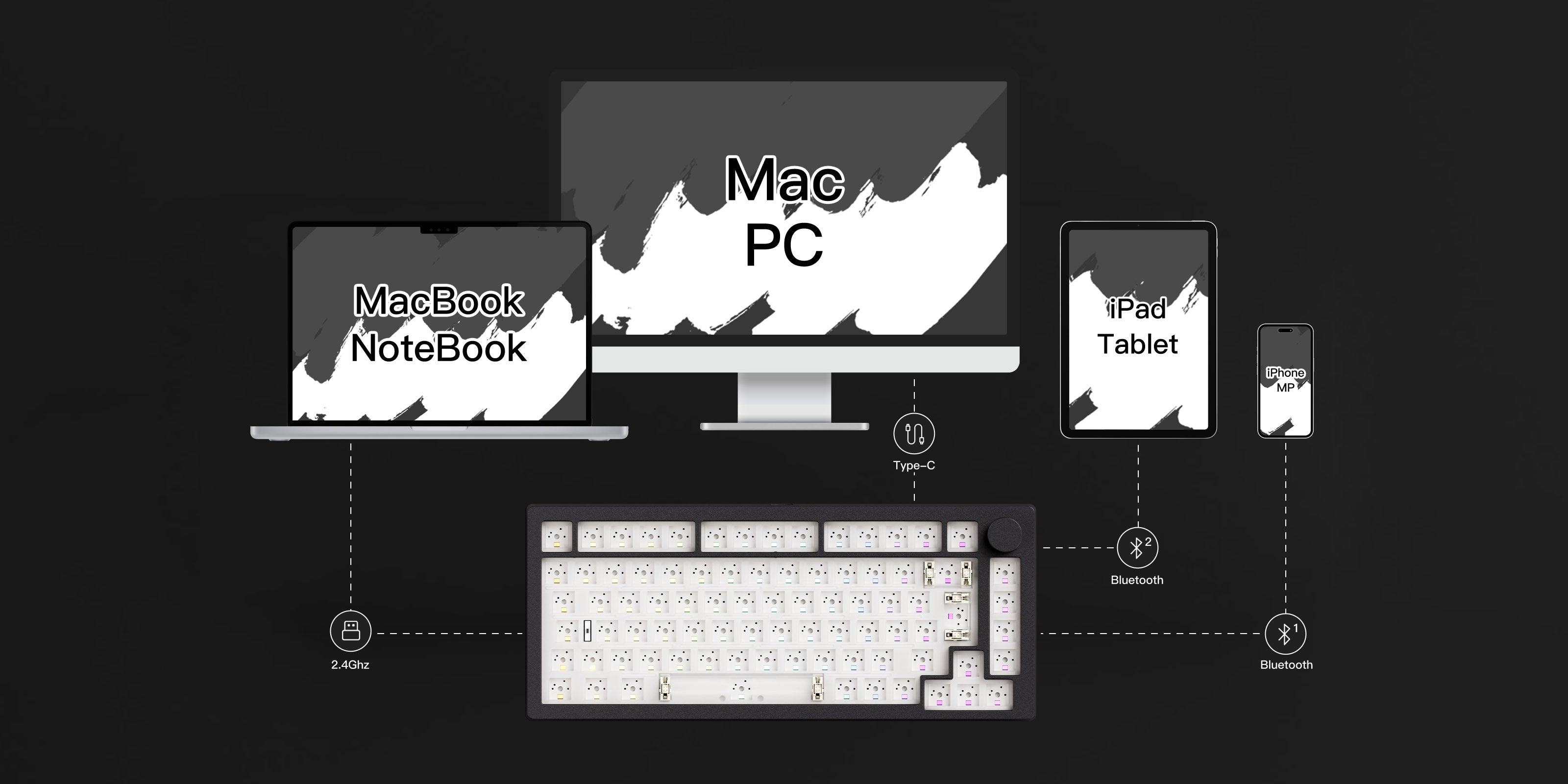

M1 V5 Multi-Mode
Allows easy switching between wired, Bluetooth, and 2.4GHz wireless modes for a smooth experience across all devices. Compatible with Windows and Mac, this versatile keyboard delivers exceptional performance and convenience. Enhance productivity with this adaptable keyboard.
2.4Ghz Wireless
Equipped with a receiver that allows users to utilize the 2.4GHz wireless mode, providing low latency suitable for gaming and typing purposes.
BT 5.0
Easy to connect up to 3 devices with a simple Fn+E/R/T combination, enabling seamless switching between tablets, computers, and phones.
USB-C Wired Mode
Ensuring consistent and rapid response times for FPS gaming and minimal input lag.
System Switch
Top: Mac Wireless Mode (built-in power supply on)
Middle: Default Windows Wired Mode (built-in power supply off)
Bottom: Windows Wireless Mode (built-in power supply on)
Note: The switch is located under the CAPS key
PORON Plate Foam
MonsGeek M1 V5 VIA DIY Kit is equipped with PORON plate foam, effectively reducing the noise generated by key switches, ensuring a purer and more comfortable tactile sound experience for the keyboard.
Polycarbonate Plate
MonsGeek M1 V5 VIA DIY Kit utilizes a transparent PC plate to offer flexibility surpassing that of metal, while also reducing low-frequency resonance.
More Flexibility and Sounds Better
MonsGeek M1 V5 series come with a comprehensive upgrade to the noise reduction system, offering greater flexibility for experimenting with a variety of sound profiles.
MonsGeek M Series QC Disclaimer
MonsGeek M1 V5 VIA DIY Kit
Specs
Barebone
Gasket Mount
Bluetooth5.0 / 2.4GHz / USB Type-C
South-facing RGB
3-Pin / 5-Pin Support
Support
8000mAh
1000Hz In wired and 2.4G mode, 125Hz in Bluetooth mode.
VIA
Pre-assembled Plated-mounted TPU Double-shot Stabilizers;
Separate Screw-in Stabilizers
N/A
Aluminum Case
N/A
N/A
Approx. 1750g
333*146*32.6mm
Windows / macOS / iOS / Android
Barebone×1, Manual×1, Cable×1, Keycap Puller×1, Switch Puller×1, Receiver×1, Gasket Silicion×4, Screw-in Stabilizer.
Customer Reviews
The keyboard sounds amazin out of the box, I paired it with the akko dracula switches. It feels very robust, but maybe a little too much, weighting basically 2Kg.
Impressive battery life, i've been using it nonstop for about a week and it is still at 70% (I do not use any lighting)
The setup was easy, there's a manual with the combined keys functions.
The VIA setup required me to upload a .json file (it's a very easy task).
The only downsides to this keyboard is the on-off switch. It is below the caps key, forcing you to remove it if you want to switch from wireless mode to cable (no battery usage) mode.
As one of the previous commentor, being a bit picky on where the on and off switch is located.
For my first custom keyboard I am very happy with the purchase. Thocky sound out of the box, no requirement to modify it any further IMO. I used Vertex V1 Switches (Hand-lubed), and Keytok's Mecha Godzilla Keycaps. But bummed there was no ISO layout keycaps on that but made work around with the extra switches provided.
absolutely love it.
this is my second Mechanical kbd and my 1st diy one and it is amazing.
I thought my 1st one was good (it is) but this blows it away, the weight and sound are so nice and the options for upgrading in the future are huge. I'm very pleased.
info - I'm using Dracula switches and an OSA profile keys.
Bought to replace a 'Quacky' 3 Pro keyboard, which was junk and failed after less than a year (double and missed keystrokes etc).
I installed Akko's own Creamy Blue switches, which are tactile but with only a very slight bump, almost linear in feel - very good quality and perfect feel for me. Added some PBT keycaps. Superb feel and sound out of the box. I do wish it had a recessed cable connection underneath the case so that the rear of the case has no connector sticking out, but this is a minor point specific to my setup.
I have no issue with the switch being under a key. This is what keeps the case simple and easier/cheaper to make. Might be an issue for people who switch between wired and wireless all the time though. I also think removing the side panels from the design is a plus not a negative.
I had a brief head scratcher getting it connected by wired connection. Realised I needed to press Fn+U as well as change the switch under the caps lock key. Was then picked up by VIA.
