MonsGeek M1W V3 VIA

Sale price€154,69

Tax included. Shipping calculated at checkout.

SKU: 6975351385127

Color: Dark Night
Layout: US-ANSI
Switch: Akko Rosewood Switch
In stock

Restocking soon means that the item be pre-purchased only, or the dispatch will occur at the specified time for another reason.

75% 82-key | Gasket Mount | RGB Backlit

MonsGeek M1W V3 VIA

Akko V3 Creamy Purple Pro Switch

Type: Tactile
Operating Force: 30±5gf
Total Travel: 3.0mm
Pre-Travel: 2.0±0.6mm
Tactile Travel: 0.5mm
Tactile Force: 55gf±5gf

Akko Rosewood Switch

Type: Linear
Operating Force: 40±5gf
Total Travel: 4.0 mm
Pre Travel: 2.0±0.5 mm
Total Travel: 4.0mm

Endless Remapping and Backlight Customization

*Disclaimer: the keyboard is based on QMK with strong potential for remapping and customization. The source code is disclosed per GPL license requirements. For any inquiries about disclosure, please reach out to the Maintainer or MonsGeek Support team.

VIA Configuration in Wired Json File (V3) Source Code (Wired) Source Code (Wireless)

Side-printed Backlit Keycaps

MonsGeek M1W V3 VIA comes with gradient-effect shine-through keycaps and a side print design, creating a visually stunning effect while improving the visibility and legibility of individual keys.

oem profile keycaps of monsgeek m1w v3 he sp wireless hall effect keyboard

PBT Double-shot Keycaps

Keycaps from M1W SP are made of durable PBT double-shot, which helps resist the shine that occurs from oils and sweat on the fingers.

OEM Profile Keycaps

OEM profile keycaps are designed to bring maximum comfort, keeping hand in a natural state to minimize hand fatigue after long-time use and help users minimize typos.

Fully Upgraded

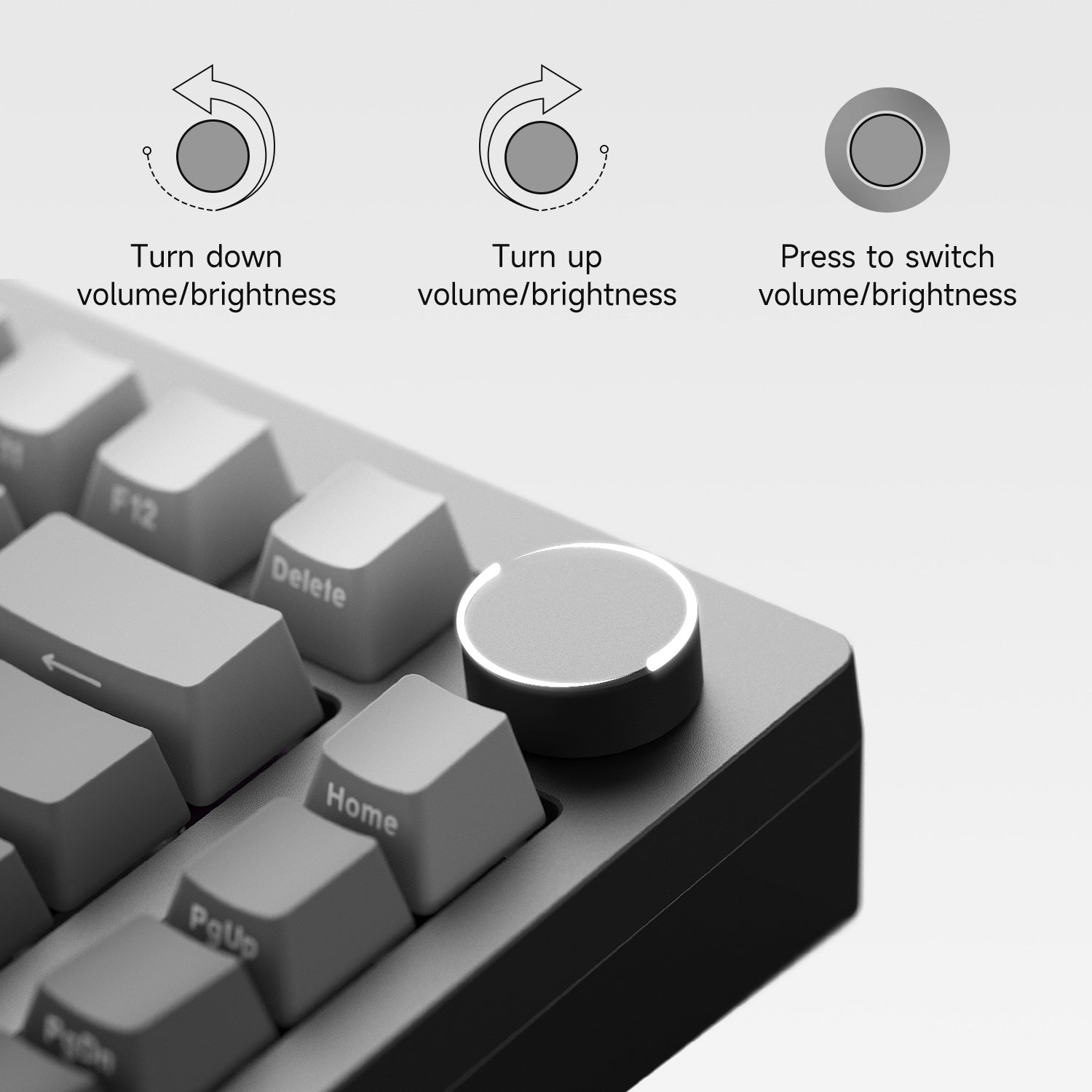

Programable Knob

This modification stems from user input and feedback. M1W V3 Series includes a fresh encoder and a floating design to prevent scratches on the case, as indicated in the earlier model.

Easily control the volume and lighting and program to other funtions.

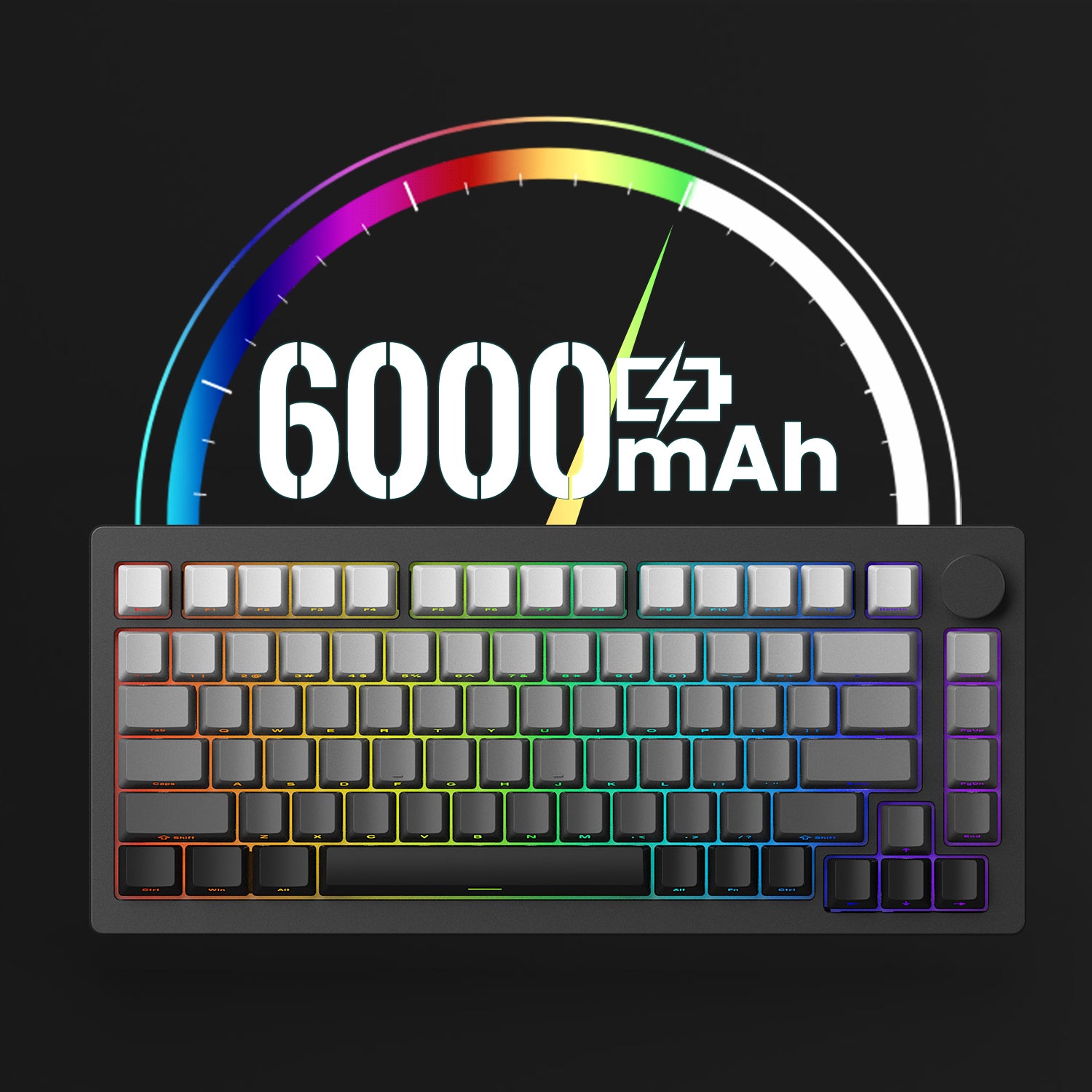

Built-in 6000mAh Battery

With a high-capacity battery of around 6000mAh, users can enjoy prolonged periods of uninterrupted typing, gaming, or productivity without the need for constant recharging.

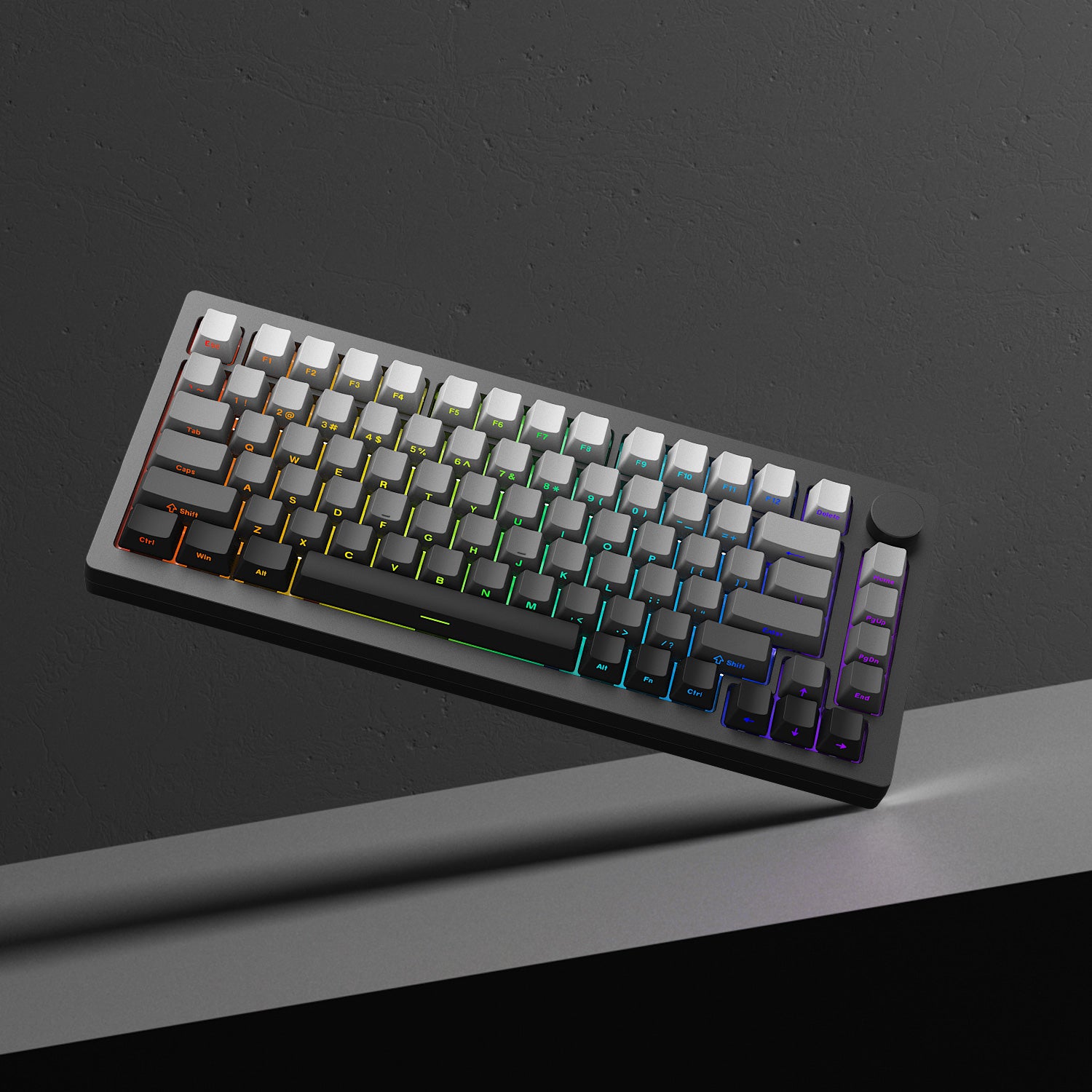

RGB Backlit

M1W V3 VIA Series can help you type in the dark with decent backlit. It has over 15 preset backlighting modes.

You can easily create and tailor your own lighting effects with the VIA Configuration, which offers unique colors, as well as adjustable brightness and animation speed level.

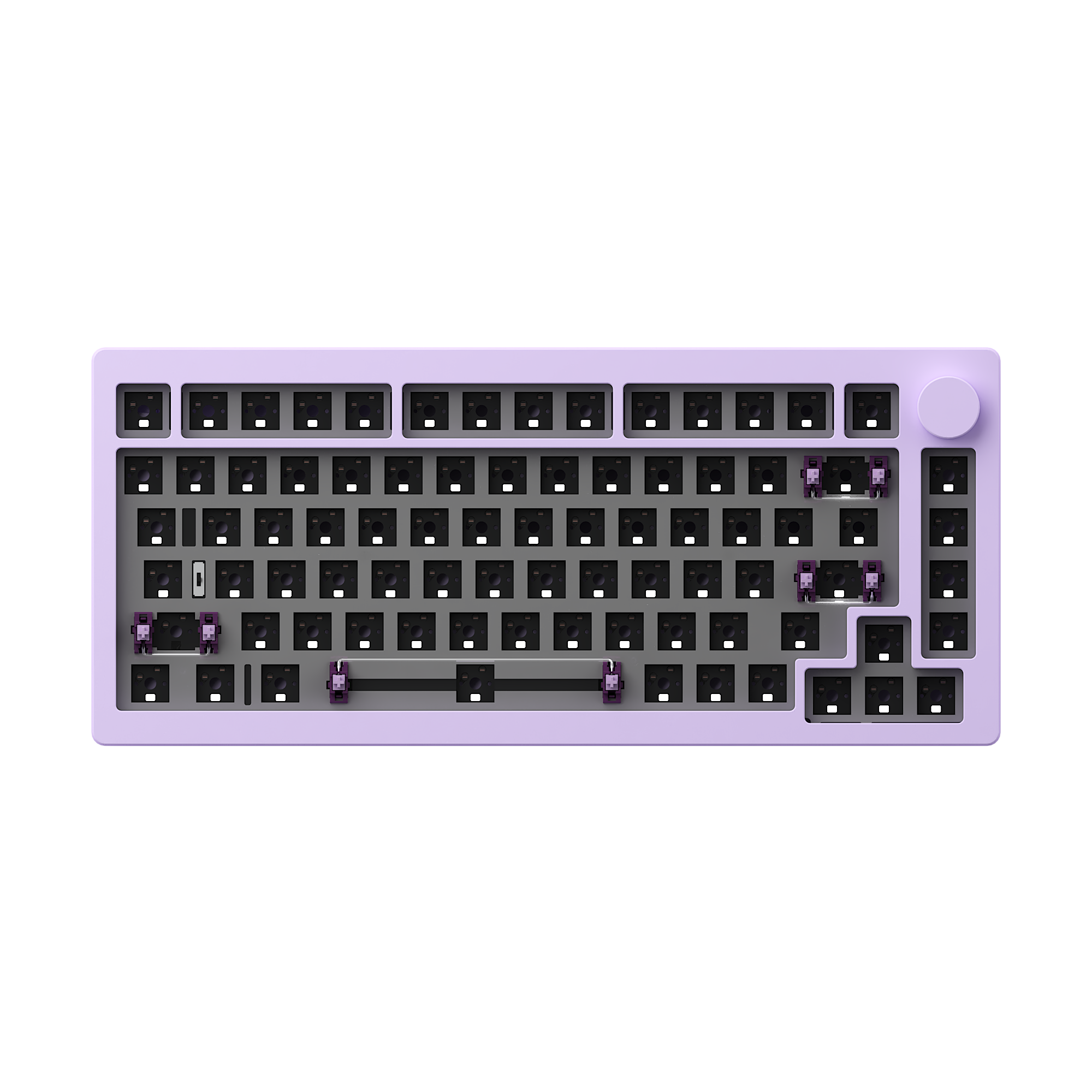

5-pin Hot-swappable

Featuring high-quality hot-swappable sockets for easy switch changes.

M1W Multi-Mode

With its multi-mode connectivity options including 2.4GHz wireless, Bluetooth, and USB-C wired connection, you are no longer limited in how you can connect. Moreover, it supports storing up to 3 Bluetooth devices simultaneously.

2.4Ghz Wireless

Equipped with a receiver that allows users to utilize the 2.4GHz wireless mode, providing low latency suitable for gaming and typing purposes.

BT 5.0

Easy to connect up to 3 devices with a simple Fn+E/R/T combination, enabling seamless switching between tablets, computers, and phones.

USB-C Wired Mode

Ensuring consistent and rapid response times for FPS gaming and minimal input lag.

System Switch

Top: Mac Wireless Mode (built-in power supply on)
Middle: Default Windows Wired Mode (built-in power supply off)
Bottom: Windows Wireless Mode (built-in power supply on)

Note: The switch is located under the CAPS key

PORON Plate Foam

MonsGeek M1W V3 VIA is equipped with PORON plate foam, effectively reducing the noise generated by key switches, ensuring a purer and more comfortable tactile sound experience for the keyboard.

Polycarbonate Plate

MonsGeek M1W V3 VIA utilizes a transparent PC plate to offer flexibility surpassing that of metal, while also reducing low-frequency resonance.

Plate-mounted & Screw-in Stabilizers

M1W V3 VIA Series now features pre-installed plate-mounted TPU stabilizers, a change from the original M1, aimed at streamlining the assembly process and offering convenience for keyboard beginners. Additionally, it includes extra PCB Mount/Screw-in stabilizers to accommodate the varied preferences of users.

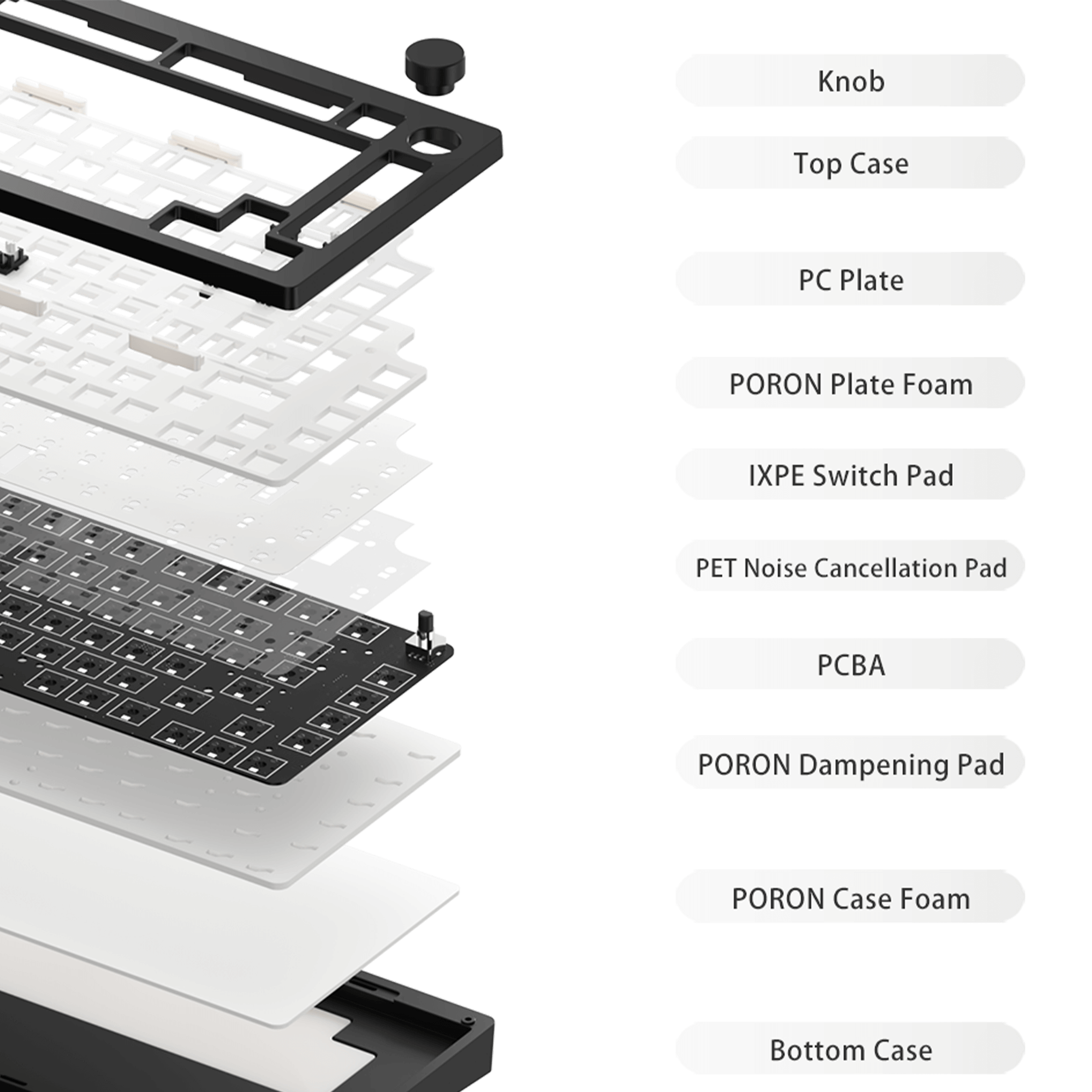

Need More Foam?

MonsGeek M1W V3 VIA comes with a comprehensive upgrade to the noise reduction system, offering greater flexibility for experimenting with a variety of sound profiles.

*Disclaimer: The structure is for reference only. And for M1W V3 VIA Fully Assembled, they’ll come with switches and keycaps.

MonsGeek M Series QC Disclaimer

MonsGeek M1W V3 VIA

Specs

Type:

Fully Assembled

Barebone

Structure:

Gasket Mount

Gasket Mount

Connection:

Bluetooth5.0 / 2.4GHz / USB Type-C

Bluetooth5.0 / 2.4GHz / USB Type-C

Backlight:

South-facing RGB

South-facing RGB

Hot Swappable:

3-Pin / 5-Pin Support

3-Pin / 5-Pin Support
