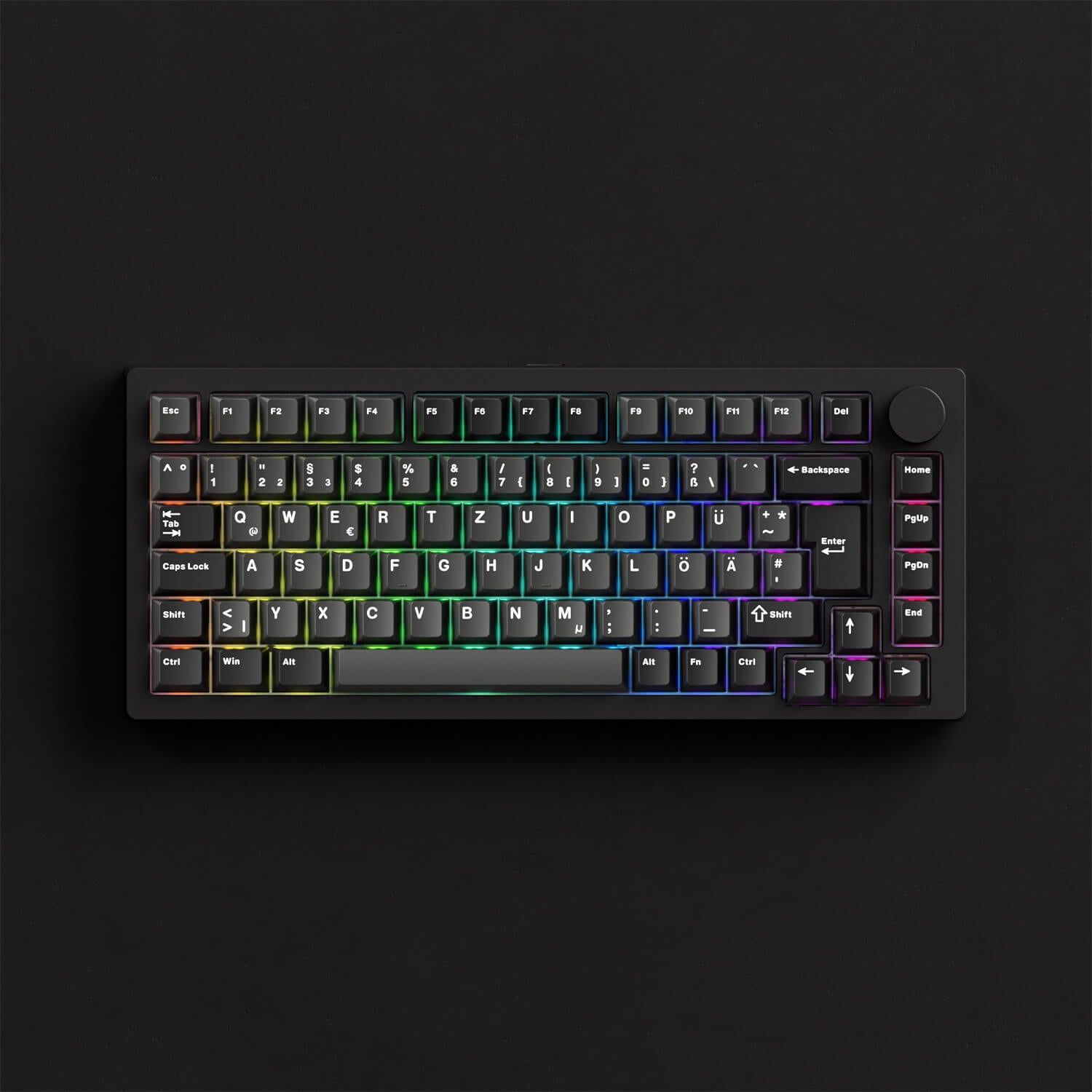

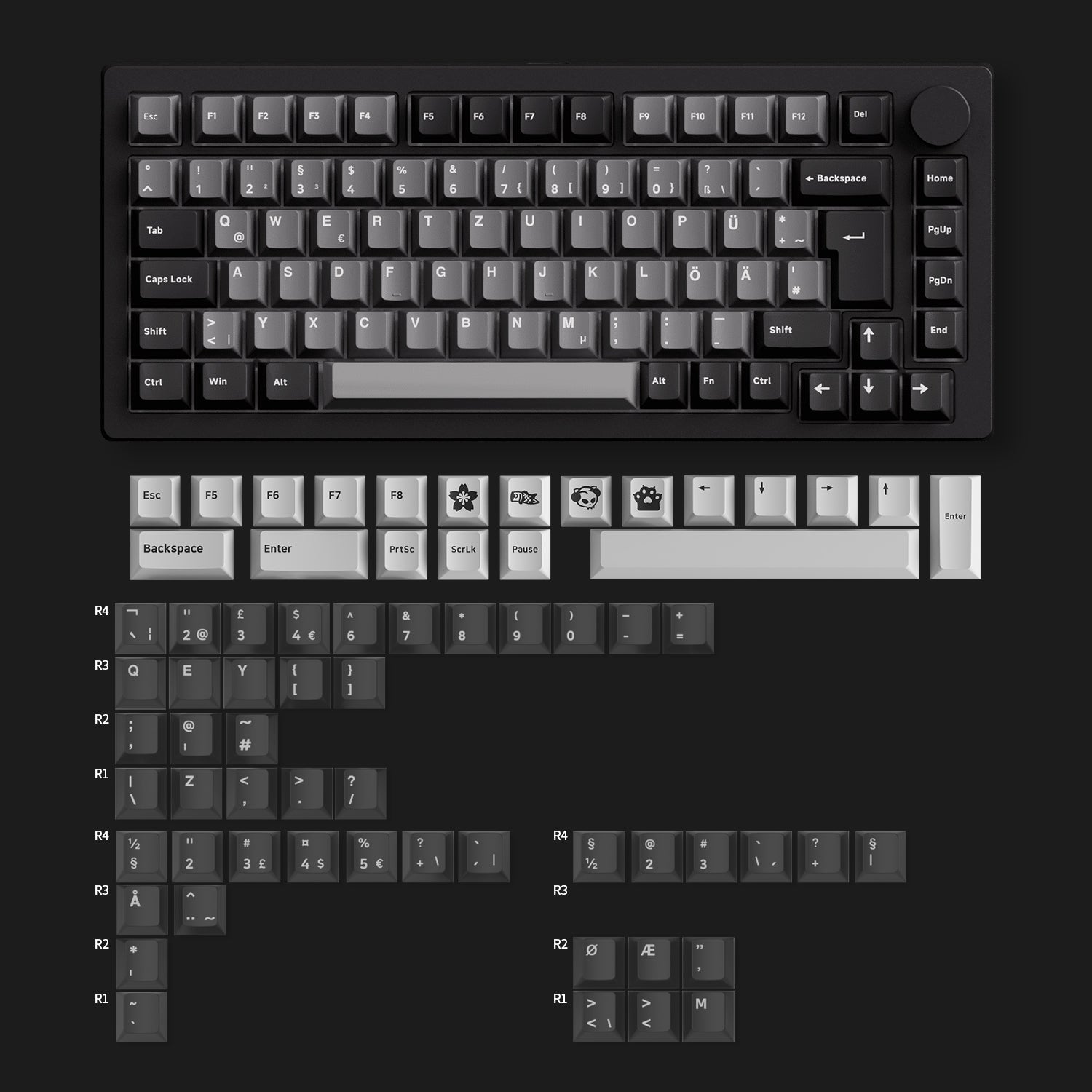

Clavier mécanique personnalisé MonsGeek M1 V5 VIA

DE Stock
Prix de vente€151,71 Prix normal€178,49
Economisez 15%

Taxes inclues Frais d'envoi calculés au paiement

SKU: 6975351385769
🍂 Fall Setup Refresh
A Fresh Setup for a New Season
00 DAYS
00 HRS
00 MIN
00 SEC

Other M1 V5 Series:VIA ISO
Layout: ISO-ALL/UK/Nordique
Switch: Interrupteur Akko Rosewood
Warehouse: Allemagne(DE) Entrepôt
En stock

Clavier mécanique en aluminium à démontage rapide à 75 % avec bouton

Clavier mécanique personnalisé MonsGeek M1 V5 VIA

Le clavier mécanique personnalisé MonsGeek M1 V5 VIA est doté d'une conception à loquet à bille, permettant un démontage rapide et un entretien pratique.

Permet aux débutants de construire facilement le clavier de manière indépendante.

Ball-catch Design

Rapid Disassemble without Screws or Tools

Contrairement aux claviers mécaniques à visser classiques, la série M1 V5 dispose d'un loquet à bille pour sécuriser le boîtier et d'une force de charge réglable qui peut être modifiée en serrant les vis lors de l'installation pour une sécurité et une stabilité accrues.

MonsGeek M1 V5 VIA Custom Mechanical Keyboard

Before

MonsGeek M1 V5 VIA Custom Mechanical Keyboard PCB

After

Tirer

Remappage infini et personnalisation du rétroéclairage

VIA for advanced keyboard customizations.

Configuration VIA en filaire Json File (V5-ISO) Json File (V5-ANSI) Source Code
Built-in 8000mAh battery of MonsGeek M1 V5 VIA Custom Mechanical Keyboard

Batterie intégrée de 8000 mAh

Avec une batterie haute capacité d'environ 8 000 mAh, les utilisateurs peuvent profiter de périodes prolongées de saisie, de jeu ou de productivité ininterrompues sans avoir besoin d'une recharge constante.

RVB activé : 86 heures
RVB-OFF : 500 heures
Remarque : ces données proviennent de MonsGeek Labs et l’utilisation spécifique varie d’une personne à l’autre.

RGB Backlit of MonsGeek M1 V5 VIA Custom Mechanical Keyboard

RGB Backlit

La série M1 V5 VIA vous permet de taper dans l'obscurité grâce à un rétroéclairage performant. Elle propose plus de 15 modes de rétroéclairage prédéfinis.

Créez des effets d'éclairage personnalisés avec la configuration VIA, offrant une gamme de couleurs, une luminosité réglable et une vitesse d'animation.

Le commutateur Akko V3 Piano Pro est doté d'un diffuseur LED pour un éclairage RVB 30 % plus lumineux

Gasket Mount

Le clavier à joint MonsGeek est un type de clavier mécanique qui utilise un matériau d'étanchéité, comme du silicone ou du néoprène, pour créer un support « flottant » pour les commutateurs. Le joint est placé entre la plaque et le circuit imprimé, ce qui offre une expérience de frappe plus souple et plus confortable.

5-Pin Hot-swappable

Le circuit imprimé orienté vers le sud de la série M1 V5 évite toute interférence avec les touches Cherry lors de la personnalisation, offrant ainsi plus de compatibilité et de flexibilité. Prise en charge du remplacement à chaud des interrupteurs à 5 broches. Doté de sockets 5 broches remplaçables à chaud de haute qualité pour un changement facile des interrupteurs.

Bouton programmable

Cette modification est le fruit des retours des utilisateurs. La série M1 V5 intègre un nouvel encodeur et une conception flottante pour éviter les rayures sur le boîtier, comme indiqué sur le modèle précédent.

Contrôlez facilement le volume et l'éclairage et programmez d'autres fonctions.

MonsGeek M1 V5 VIA Custom Mechanical Keyboard support multi-mode

M1 V5 Multi-Mode

Permet de basculer facilement entre les modes filaire, Bluetooth et sans fil 2,4 GHz pour une expérience fluide sur tous les appareils. Compatible avec Windows et Mac, ce clavier polyvalent offre des performances et un confort exceptionnels. Optimisez votre productivité grâce à ce clavier adaptable.

Sans fil 2,4 GHz

Équipé d'un récepteur qui permet aux utilisateurs d'utiliser le mode sans fil 2,4 GHz, offrant une faible latence adaptée aux jeux et à la saisie.

BT 5.0

Connectez facilement jusqu'à 3 appareils avec une simple combinaison Fn+E/R/T, permettant une commutation transparente entre tablettes, ordinateurs et téléphones.

Mode filaire USB-C

Assurer des temps de réponse cohérents et rapides pour les jeux FPS et un décalage d'entrée minimal.

Size of MonsGeek M1 V5 VIA Custom Mechanical Keyboard

Switches SPEC

Akko V3 Piano Pro Switch

Akko V3 Piano Pro

Type : Linéaire
Force de fonctionnement : 45±5gf
Force finale : 50 ± 5 gf
Course totale : 3,1 mm
Pré-course : 1,9 ± 0,5 mm

akko rosewood switch

Palissandre d'Acre

Type : Linéaire
Force de fonctionnement : 40 ± 5 gf
Course totale : 4,0 mm
Pré-course : 2,0 ± 0,5 mm
Course totale : 4,0 mm

Akko Creamy Cyan Switch Close View

Cyan crémeux Akko

Type : Clic
Force de fonctionnement : 50±7gf
Course totale : 4,0 ± 0,2 mm
Pré-course : 2,0 ± 0,6 mm
Déplacement tactile : 1,3 mm
Force tactile : 65±7gf

creamy purplr pro switch

Akko V3 Creamy Purple Pro

Type : Tactile
Force de fonctionnement : 30±5gf
Pré-course : 2,0 ± 0,6 mm
Course totale : 3,0 mm
Déplacement tactile : 0,5 mm
Force tactile : 55±5gf

Commutateur de système

En haut : Mode sans fil Mac (alimentation intégrée activée)
Milieu : Mode filaire Windows par défaut (alimentation intégrée désactivée)
En bas : Mode sans fil Windows (alimentation intégrée activée)

Remarque : le commutateur est situé sous la touche CAPS

Mousse de plaque PORON

Série M1 V5 équipée de mousse en plaque PORON, réduisant efficacement le bruit généré par les interrupteurs à clé, garantissant une expérience sonore tactile plus pure et plus confortable pour le clavier.

MonsGeek M1 V5 VIA Custom Mechanical Keyboard system switch

Commutateur de système

En haut : Mode sans fil Mac (alimentation intégrée activée)
Milieu : Mode filaire Windows par défaut (alimentation intégrée désactivée)
En bas : Mode sans fil Windows (alimentation intégrée activée)

Remarque : le commutateur est situé sous la touche CAPS

Poron Plate Foam of MonsGeek M1 V5 VIA Custom Mechanical Keyboard

Mousse de plaque PORON

Clavier mécanique personnalisé MonsGeek M1 V5 VIA est équipé de mousse en plaque PORON, réduisant efficacement le bruit généré par les interrupteurs à clé, garantissant une expérience sonore tactile plus pure et plus confortable pour le clavier.

MonsGeek M1 V5 VIA Custom Mechanical Keyboard PCB

Polycarbonate Plate

Clavier mécanique personnalisé MonsGeek M1 V5 VIA utilise une plaque PC transparente pour offrir une flexibilité surpassant celle du métal, tout en réduisant la résonance basse fréquence.

MonsGeek M1 V5 VIA Custom Mechanical Keyboard Internal Structure

More Flexibility and Sounds Better

La série MonsGeek M1 V5 est livrée avec une mise à niveau complète du système de réduction du bruit, offrant une plus grande flexibilité pour expérimenter une variété de profils sonores.

MonsGeek M Series QC Disclaimer
Close view for MonsGeek M1 V5 VIA Custom Mechanical Keyboard

Compare

CARACTÉRISTIQUES TECHNIQUES

NewMonsGeek M1 V5 VIA Custom Mechanical Keyboard ISO Layout
