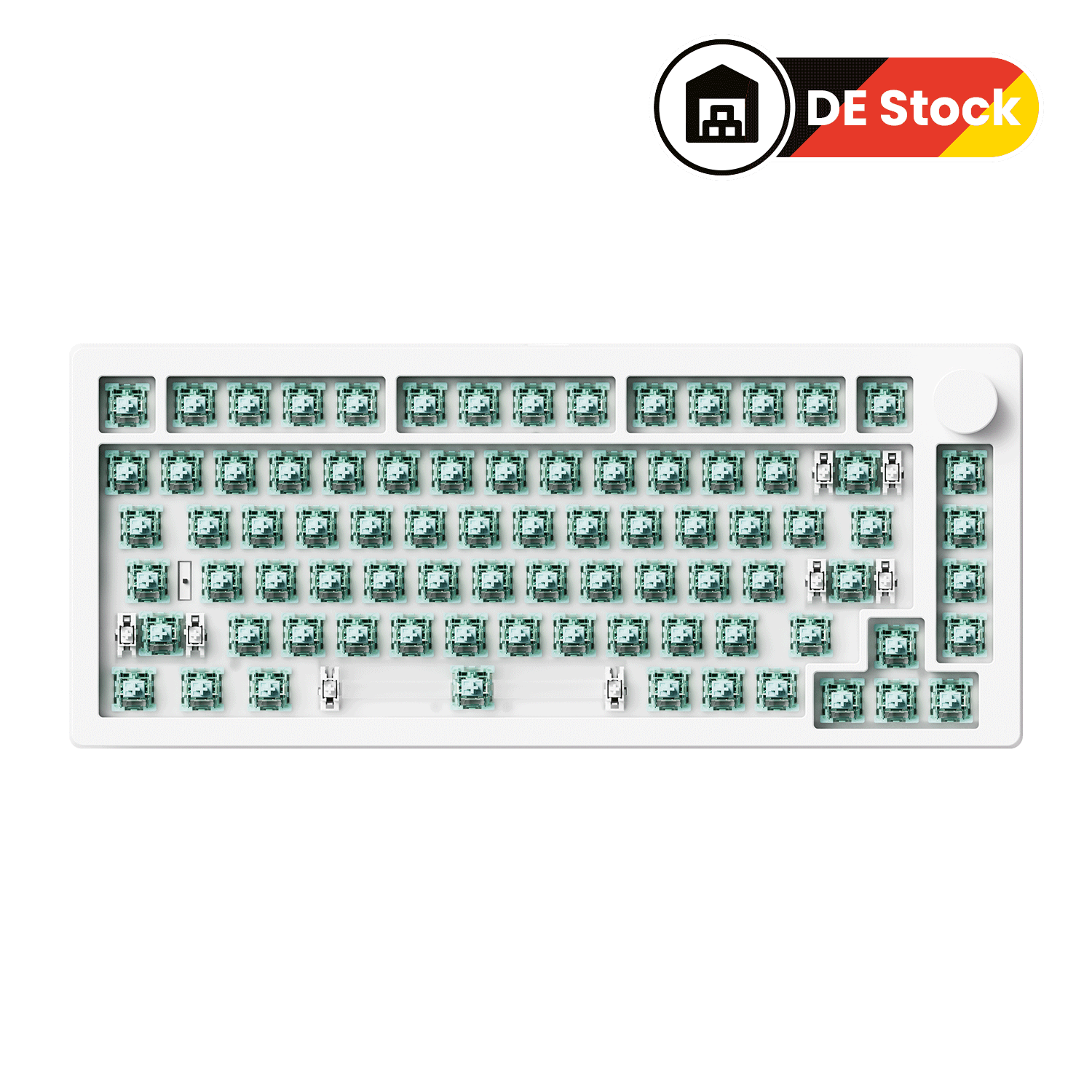

Entrepôt en Allemagne (DE)
L'entrepôt Allemagne (DE) prend actuellement en charge l'expédition vers les pays et régions suivants : Autriche, Belgique, Bulgarie, Croatie, Tchéquie, Danemark, Estonie, France, Allemagne, Grèce, Hongrie, Italie, Lettonie, Lituanie, Luxembourg, Pays-Bas, Pologne, Portugal (18 des 20 régions), Roumanie, Slovaquie, Slovénie, Espagne (47 des 52 provinces), Suède.
- La livraison rapide DHL en 2 à 3 jours s'applique uniquement aux clients allemands.
-
6-7 jours Expédition pour les autres pays d'Europe (Autriche, Belgique, Tchéquie, France, Allemagne, Italie, Luxembourg, Pays-Bas, Pologne, Lituanie, Roumanie, Slovaquie, Croatie, Estonie, Portugal (18 des 20 régions), Danemark, Bulgarie, Espagne (47 des 52 provinces), Grèce, Hongrie, Lettonie, Suède, Slovénie.)
Remarque : DE Local Stock ne prend pas en charge la livraison au Royaume-Uni, en Irlande, à Malte, à Chypre, en Suisse et dans d'autres pays non répertoriés.
L'entrepôt du Royaume-Uni (RU)
L'entrepôt du Royaume-Uni (UK) prend actuellement en charge l'expédition vers les pays et régions suivants : le Royaume-Uni .
La livraison rapide en 2 à 3 jours s'applique uniquement aux clients britanniques.
Cliquez ici pour voir plus de détails.
Our support team is available to help you within 24 hours.
75% Layout | Hall Effect | Rapid Disassemble | Magnetic Switches Included
8,000Hz
Polling Rate
32,000Hz
Scanning Rate
%C2%A0is%20a%20premium%20magnetic%20switch%20keyboard%20designed%20for%20customizable%20setups.%20It%20features%20an%20upgraded%20scanning%20rate%20and%20ultra-high%20precision%20of%20up%20to%200.005%20mm%20for%20lo...
){kind=link}
Device Latency Breakdown
Every key press goes through three ultra-fast stages. Optimizing all three is the key to achieving true low-latency performance.
Each stage is optimized to deliver consistently fast and responsive input.
Device Scan
Time to detect key position changes.
Range: 0.03 – 0.05ms
✓ Optimized with 32K Scan Rate
Internal Processing
MCU processes scan data internally.
Range: 0.1 – 0.5ms
✓ Optimized with Logic ICs
Data Transport
USB polling rate interval.
Range: 0.125ms (8kHz Polling)
32K Scanning Rate
Faster Response, Lower Latency
A higher scan rate allows the keyboard to detect switch movements earlier and more consistently.
- Faster input response
- Reduced latency
More responsive feel
More Precise Rapid Trigger
With 32K scanning, even tiny finger movements are detected immediately. This enables accurate resets, stable rapid trigger behavior, and predictable actuation during fast-paced input.
Ideal for: Competitive gaming and precision control.
Engineered for True 32K Performance
High scan rates require more than speed — they require the right architecture.
M1 V5 HE uses 15 dedicated logic ICs to reduce MCU load and ensure stable high-speed performance — even under extreme input conditions.

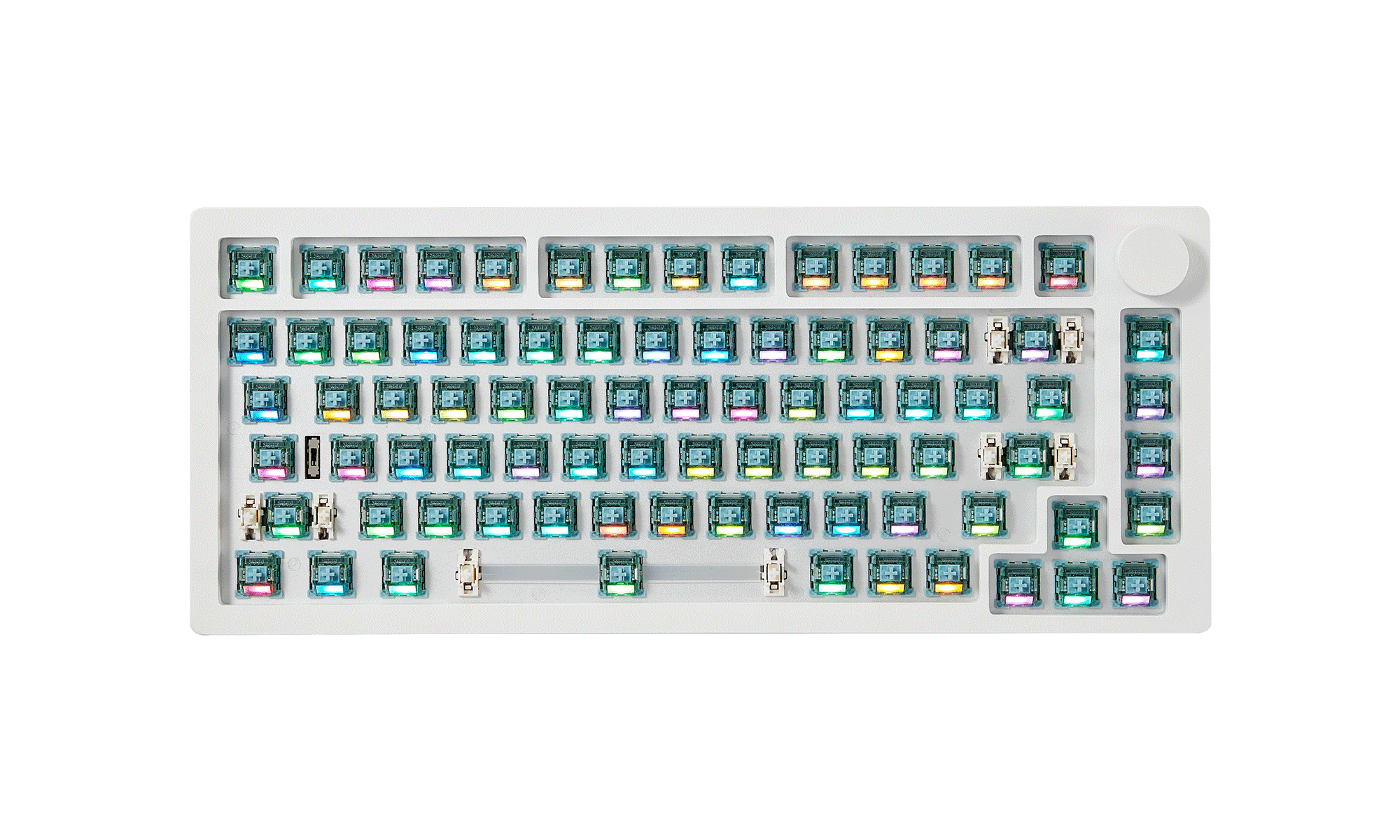

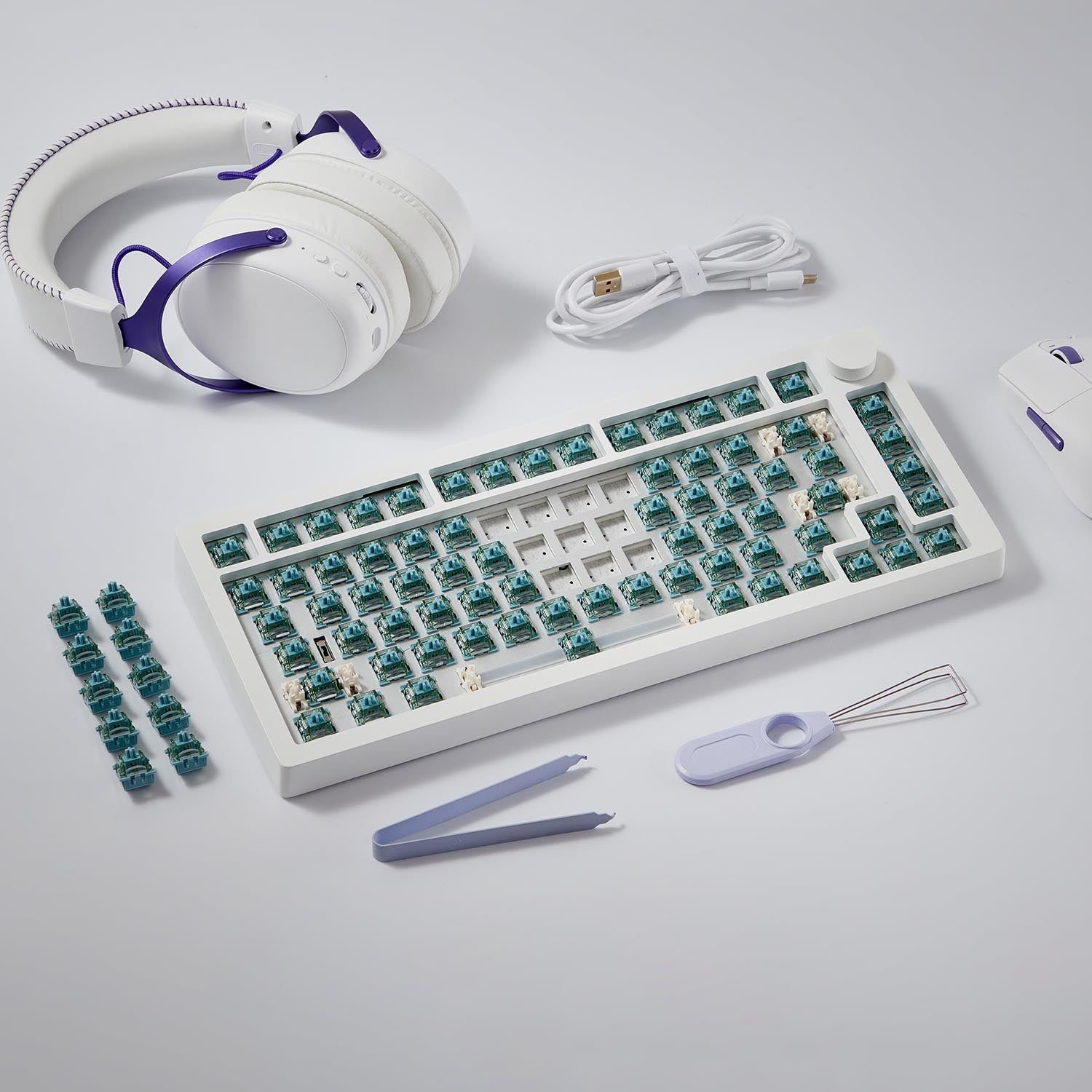

Magnetic Switches Included
The ultimate HE barebone kit with pre-installed AstroAim switches.
With AstroAim switches

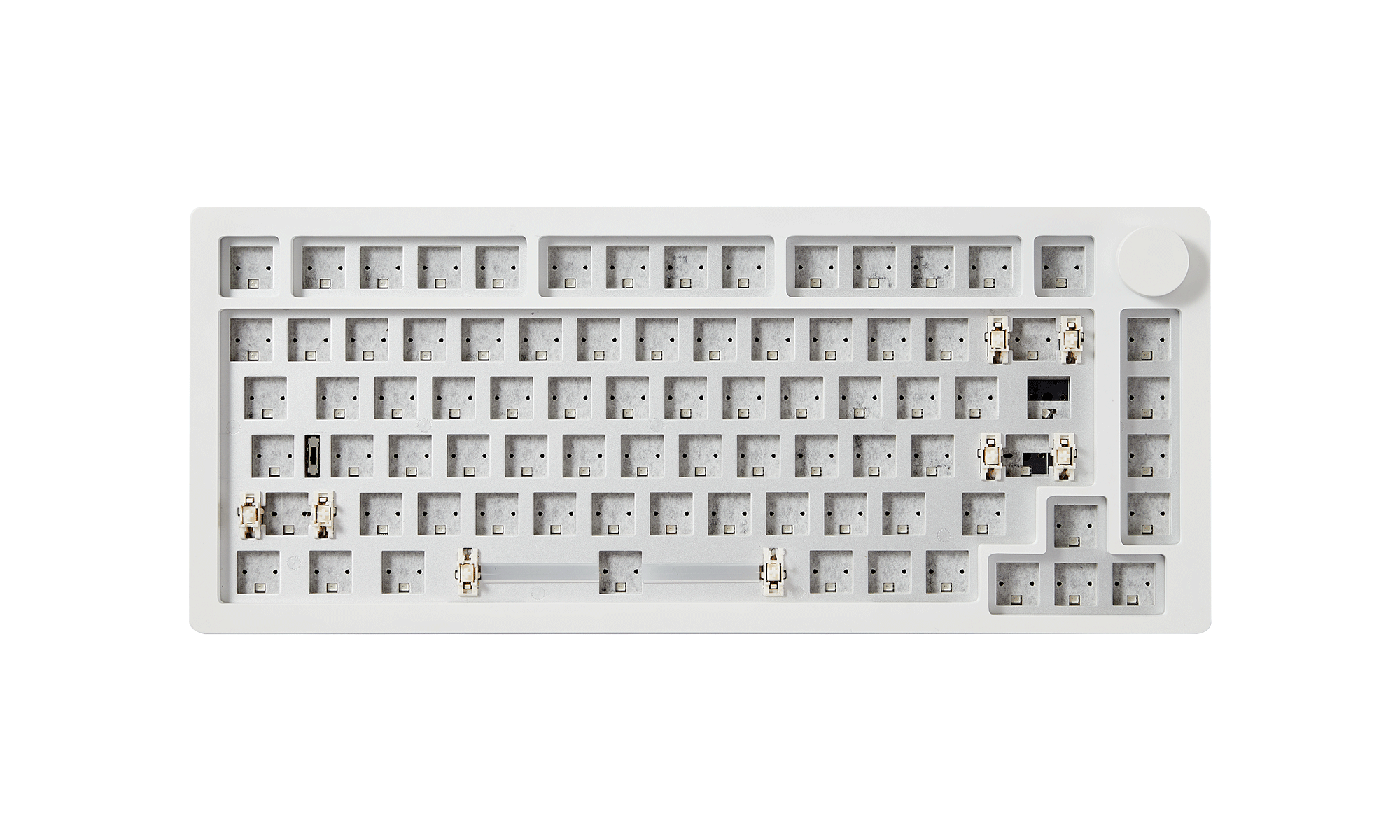

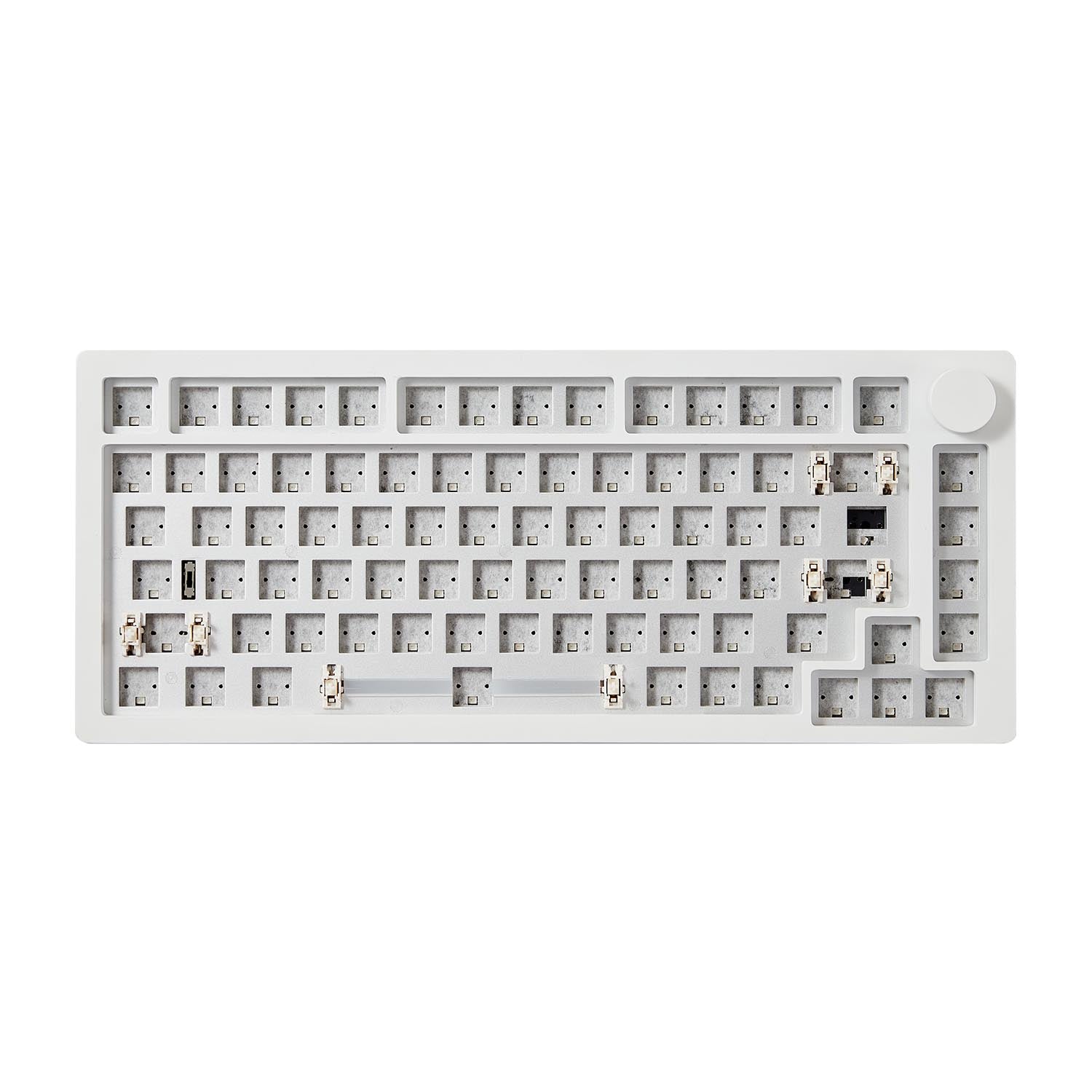

Barebone

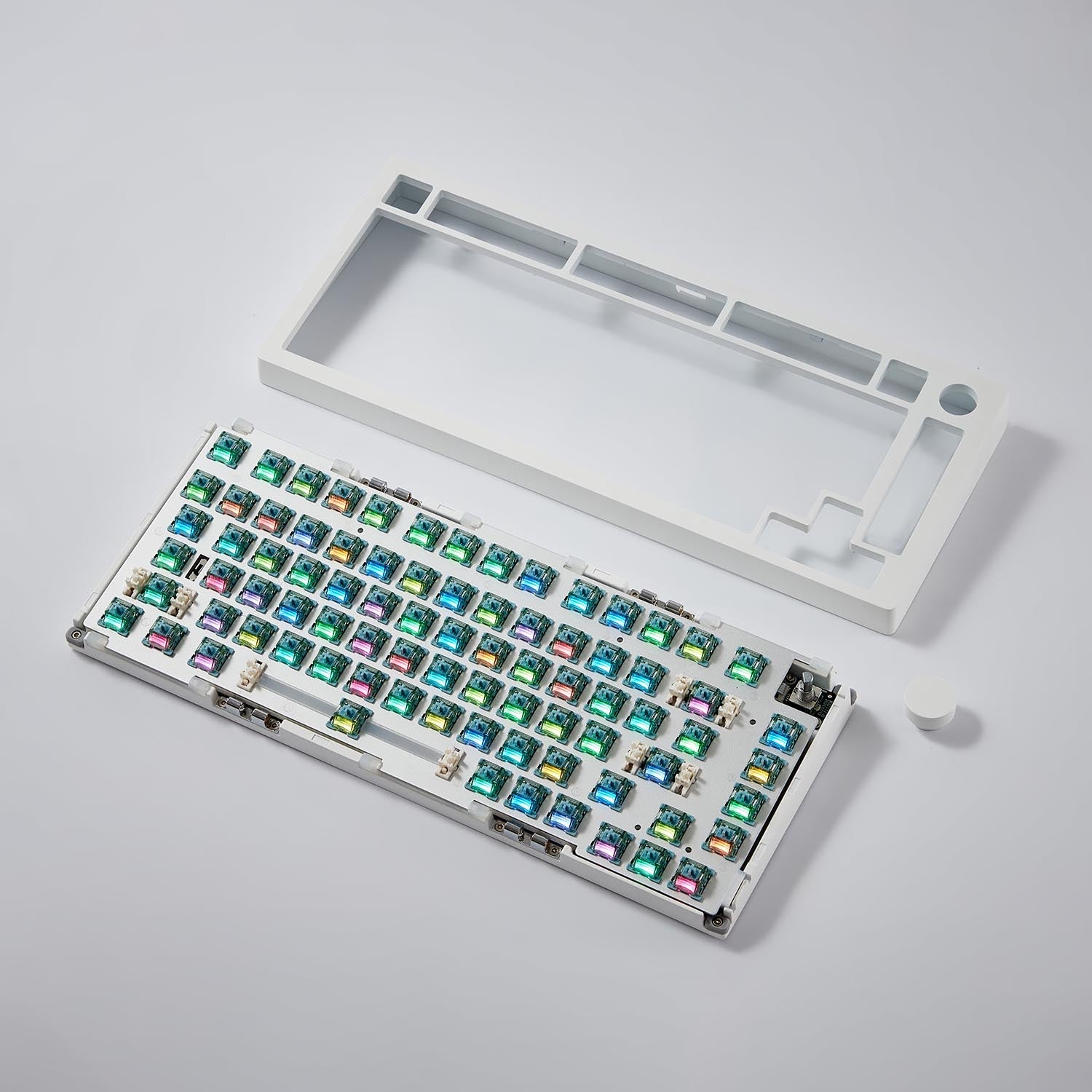

Ball-catch Design · No Tools Required · 5-second Assembly
Rapid Disassemble without Screws or Tools
Unlike typical screw-on mechanical keyboards, the M1 V5 Series features a ball catch to secure the case and adjustable load force that can be modified by tightening screws during installation for enhanced safety and stability.

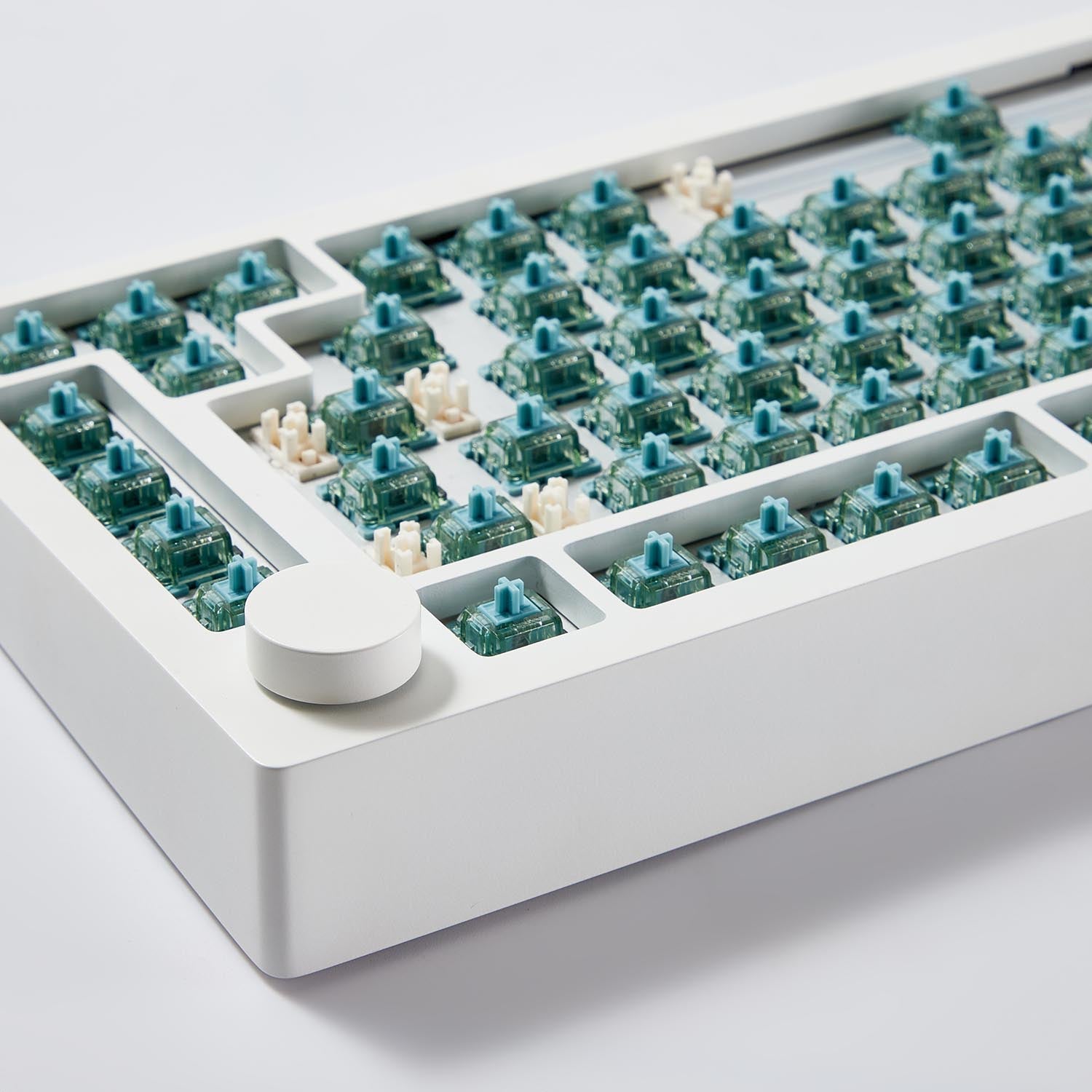

Note: Before dissemble the top cover, please use the included key puller to pull out the knob.

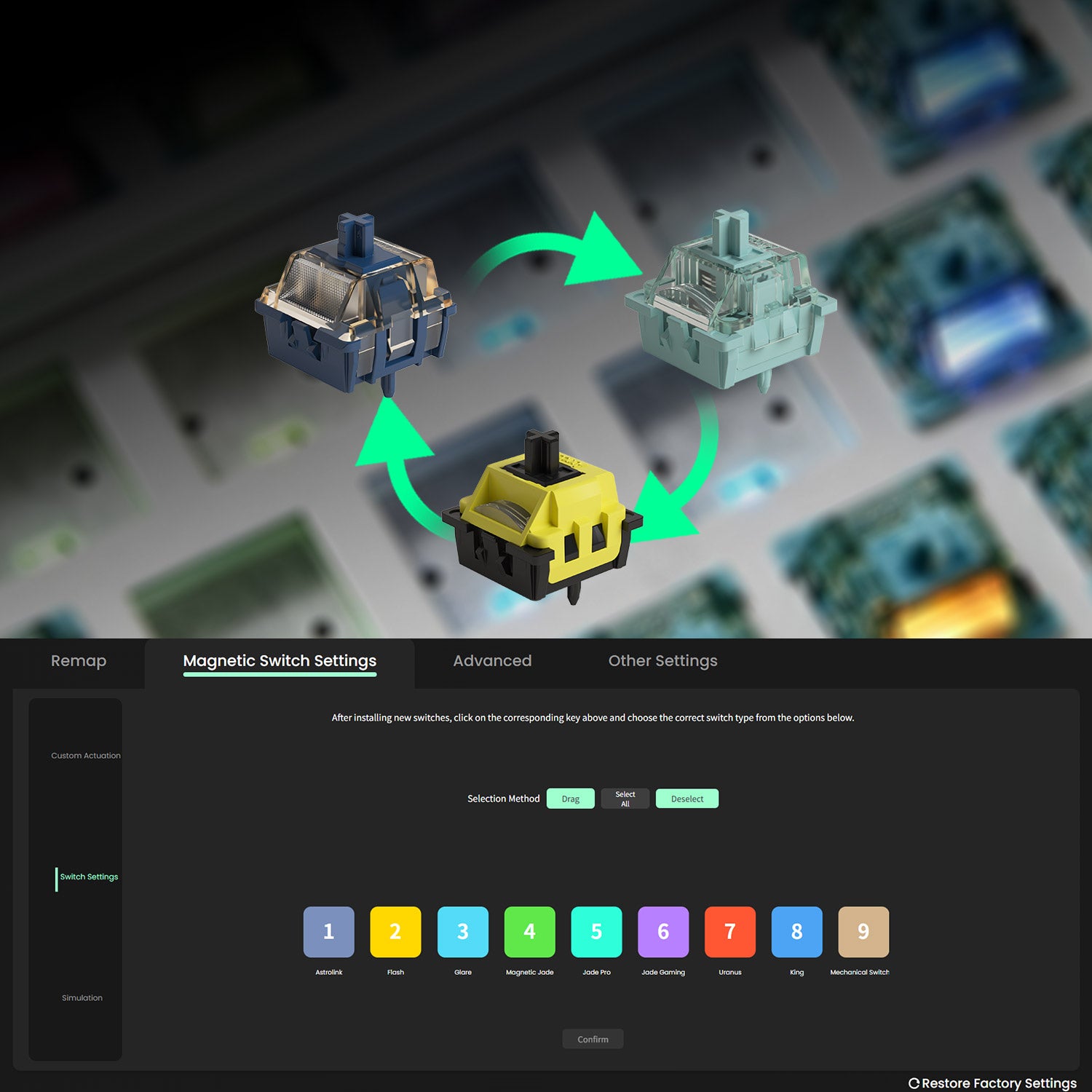

Cross-Compatible with Mainstream Magnetic Switches
MonsGeek M1 V5 HE DIY Kit supports cross-compatibility with 7 third-party downward-facing N-pole magnetic switches. Simply select the corresponding switch in the MonsGeek Driver to ensure optimal performance after installation. You can also mix and match different switches across keys for a more customized experience.
Disclaimer: High-percision switches require tuning and experimenting with the keyboard. The switches listed are guaranteed to perform at 0.01mm precision. Other switches may work but are unable to reach the claimed accuracy.

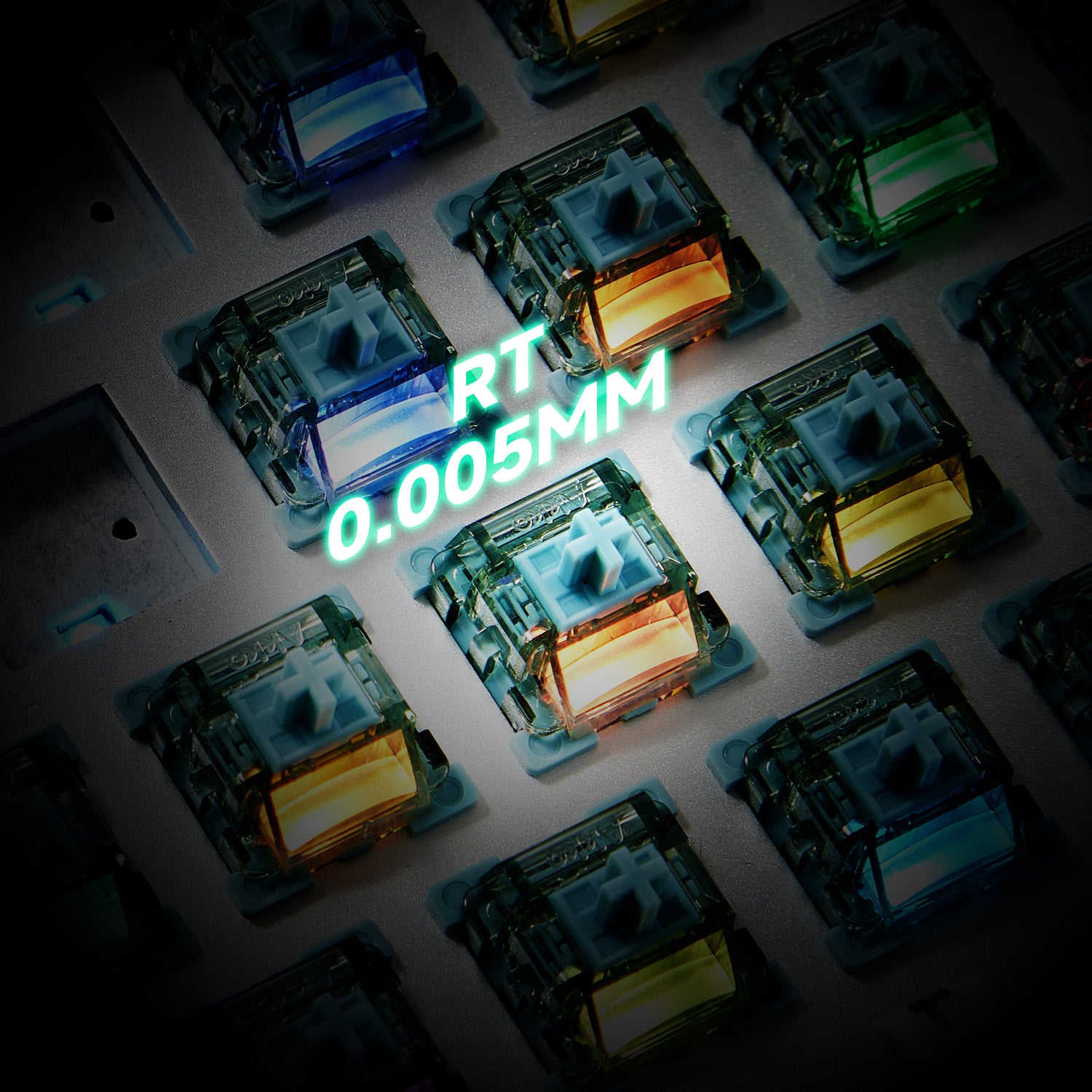

Full Range RT0.005mm
Attain ultra-precise 0.005mm Rapid Trigger and adjustable actuation distance in 0.005mm steps. Users can adjust their typing or gaming experience for faster response times and improved accuracy, perfect for competitive gaming.
ARM Cortex-M4 CPU
The powerful CPU delivers enhanced processing power with low energy consumption. It features automatic calibration between -20°C and 80°C, ensuring faster performance and extended battery life.
Universal 8K Polling Rate
With an 8000Hz polling rate for all keys in wired or 2.4Gwireless modes, enjoy ultra-fast response times and smoother, more precise inputs—perfect for gaming and high-performance tasks.
Akko AstroAim Magnetic Switch
- Type: Linear
- Total Travel: 3.5±0.1mm
- Initial Force: 35gf
- End Force: 55gf
- Initial Magnetic Flux: 95±15Gs(PCB1.6mm) / 110±15Gs(PCB1.2mm)
- Bottom-out Magnetic Flux: 580±40Gs(PCB1.6mm) / 720±50Gs(PCB1.2mm)
- Top/Stem/Bottom: PC/POM/PA66
- LED Diffuser
Classic Features

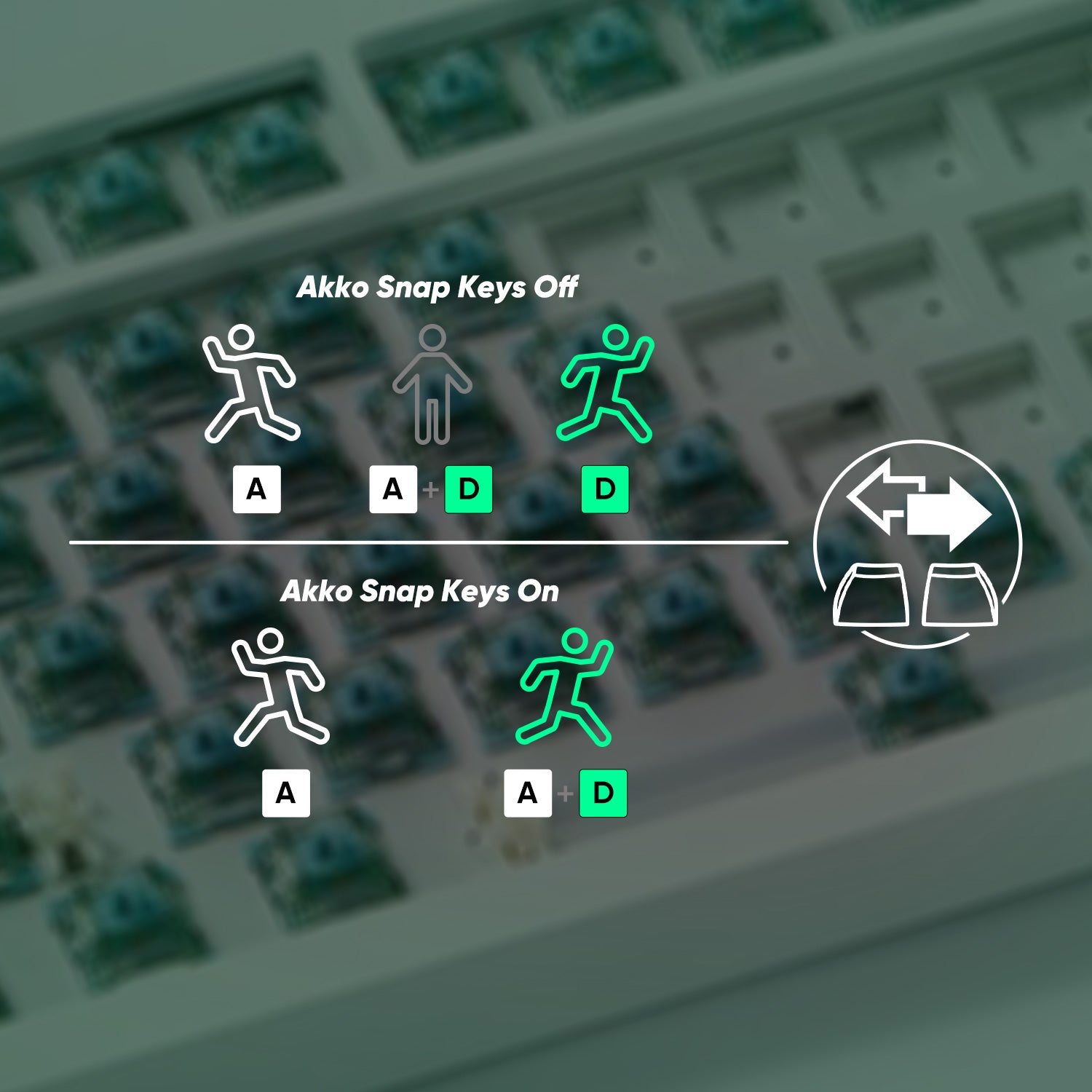

Snap Key
Snap Key, Monsgeek's SOCD implementation, prioritizes the latest input for faster directional shifts, ensuring smooth, responsive control in FPS games.
Adjustable Actuation Distance
These magnetic switches allow users to adjust every key’s actuation point from 0.1mm to 3.4mm, which offers different kinds of pressing for gaming or typing.
Rapid Trigger (RT)
Rapid Trigger eliminates actuation delay by instantly activating and deactivating keys with minimal travel—perfect for FPS gaming.
Dynamic Keystrokes (DKS)
A single key supports four actions—light press for action 1, deeper press for action 2, and two-stage release settings.
Toggle Key (TGL)
TGL (Toggle Key) turns a key into a switch that can either hold a function or trigger it repeatedly at high speed.
Mod-Tap
Mod Tap allows dual-function keys—tap for one action, hold for another—offering greater gaming convenience.

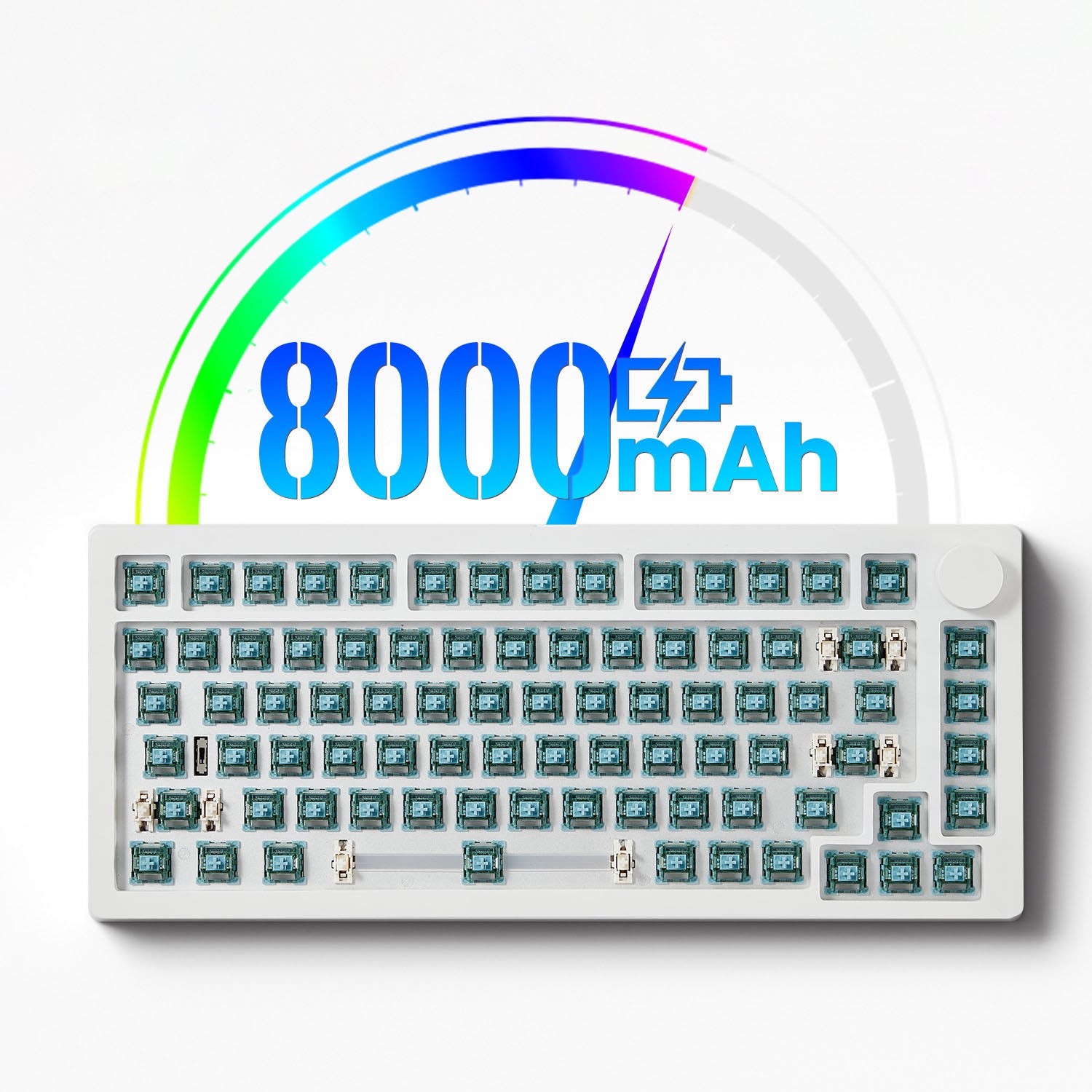

Built-in 8000mAh Battery
With a high-capacity battery of around 8000mAh, users can enjoy prolonged periods of uninterrupted typing, gaming, or productivity without the need for constant recharging.

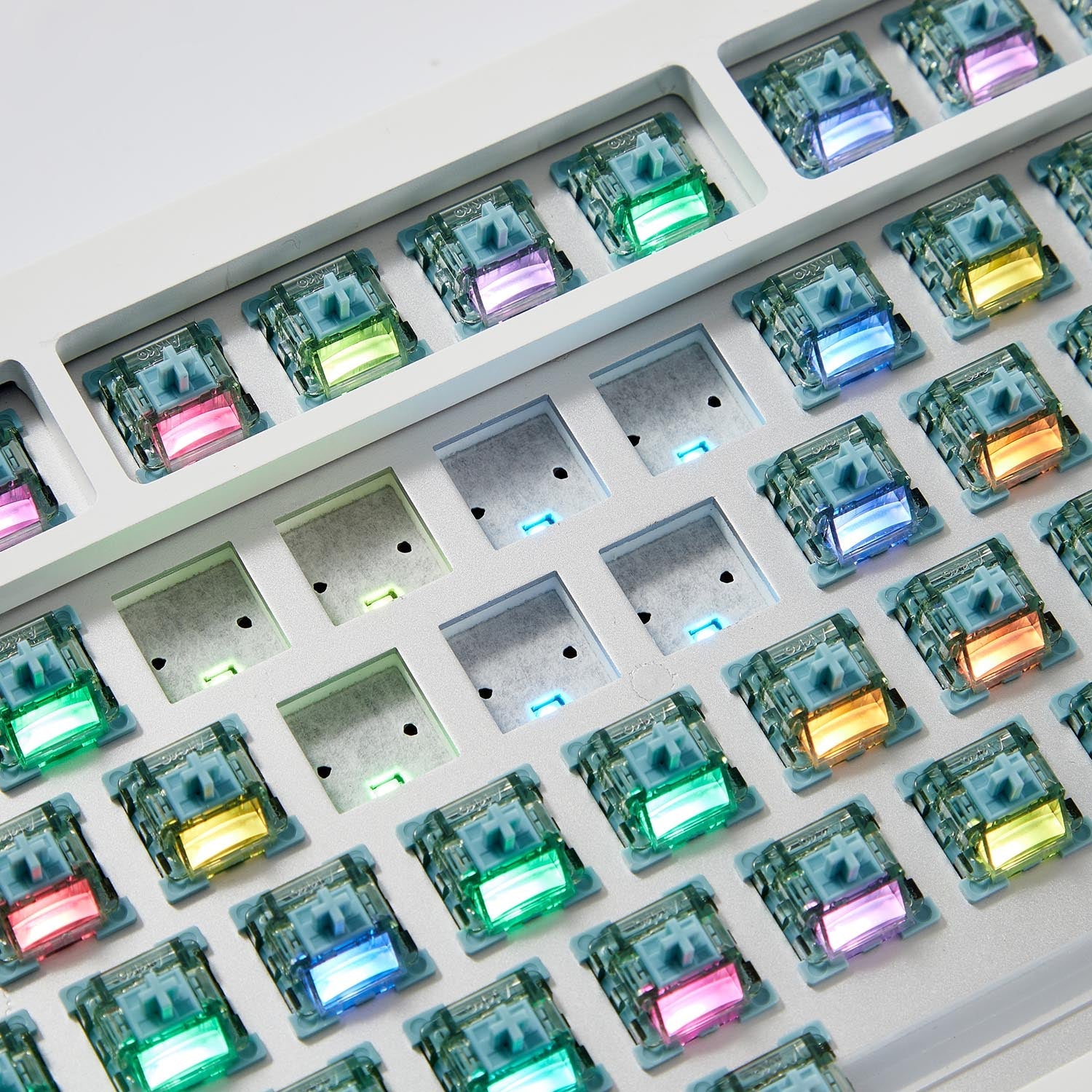

ARGB
MonsGeek M1 V5 HE DIY Kit features ARGB (addressable RGB) with individually controlled LEDs for smooth, flicker-free lighting. With Alpha channel integration and a 500Hz refresh rate, it offers richer dynamic effects and reduces visual fatigue—perfect for gaming and aesthetic builds.
Web & Cloud Driver
Full Customization for Lighting, Keys, and Macros.

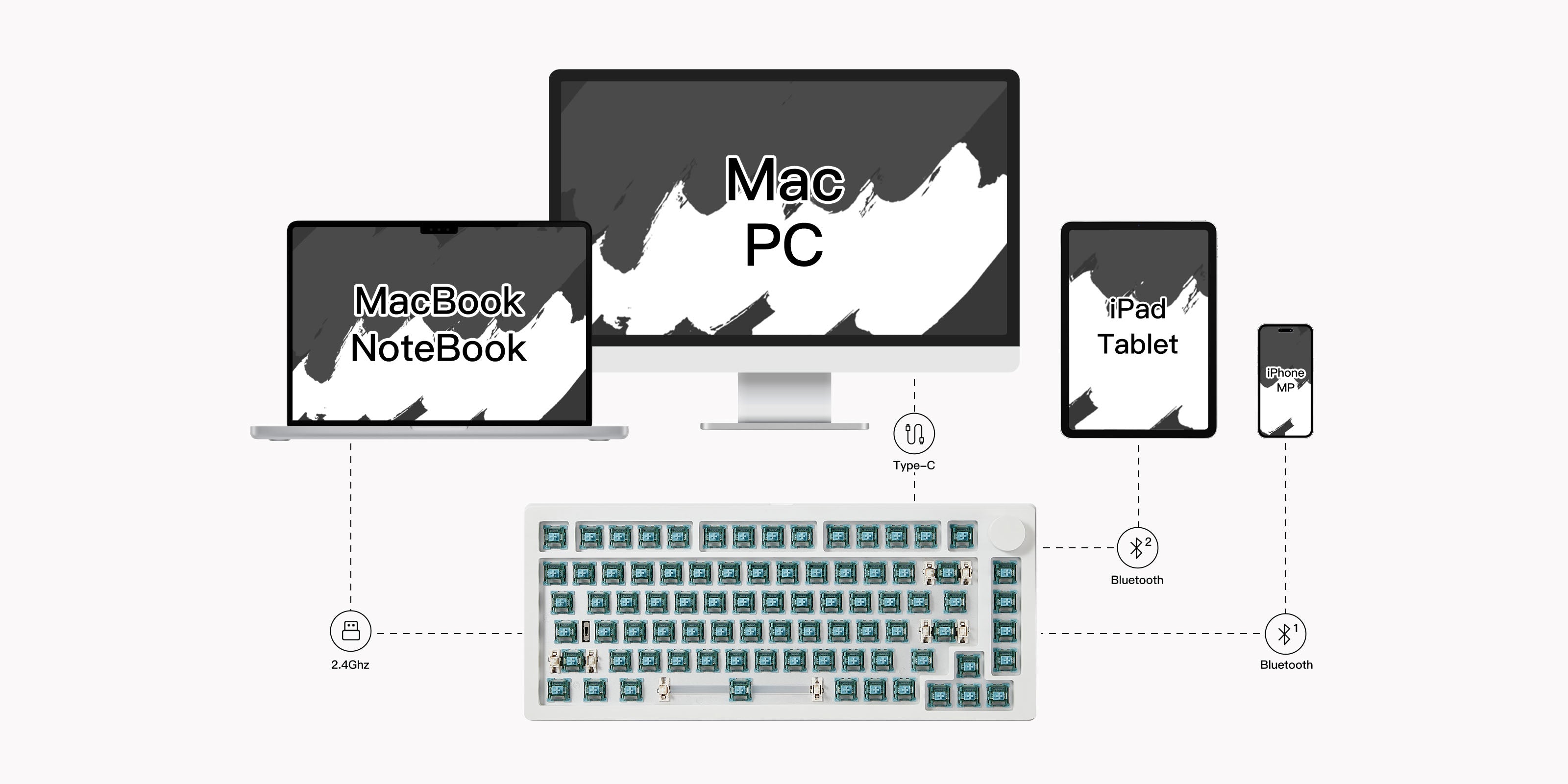

MonsGeek M1 V5 HE DIY Kit Multi-Mode
MonsGeek M1 V5 HE DIY Kit features a 75% layout and is equipped with 8000mAh built-in battery, providing extended, uninterrupted typing, gaming, or productivity without the need for frequent recharging.
2.4Ghz Wireless
Equipped with a receiver that allows users to utilize the 2.4GHz wireless mode, providing low latency suitable for gaming and typing purposes.
BT 5.0
Easy to connect up to 3 devices with a simple Fn+E/R/T combination, enabling seamless switching between tablets, computers, and phones.
USB-C Wired
Offer a choice for users who prefer a USB-C wired keyboard, ensuring consistent and rapid response times for FPS gaming and minimal input lag.

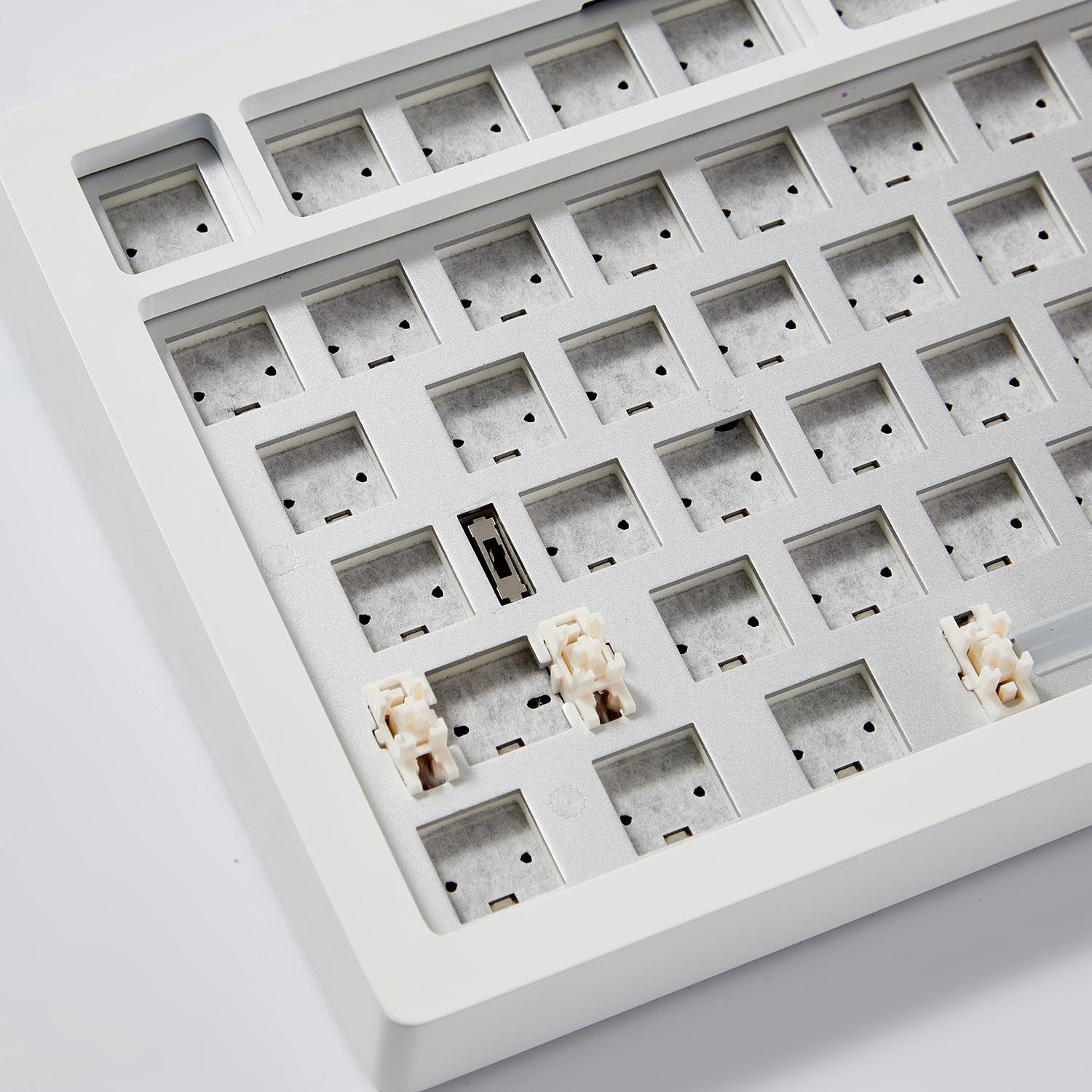

System Switch
Top: Mac Wireless Mode (built-in power supply on)
Middle: Default Windows Wired Mode (built-in power supply off)
Bottom: Windows Wireless Mode (built-in power supply on)
PORON Plate Foam
MonsGeek M1 V5 HE DIY Kit is equipped with PORON plate foam, effectively reducing the noise generated by key switches, ensuring a purer and more comfortable tactile sound experience for the keyboard.

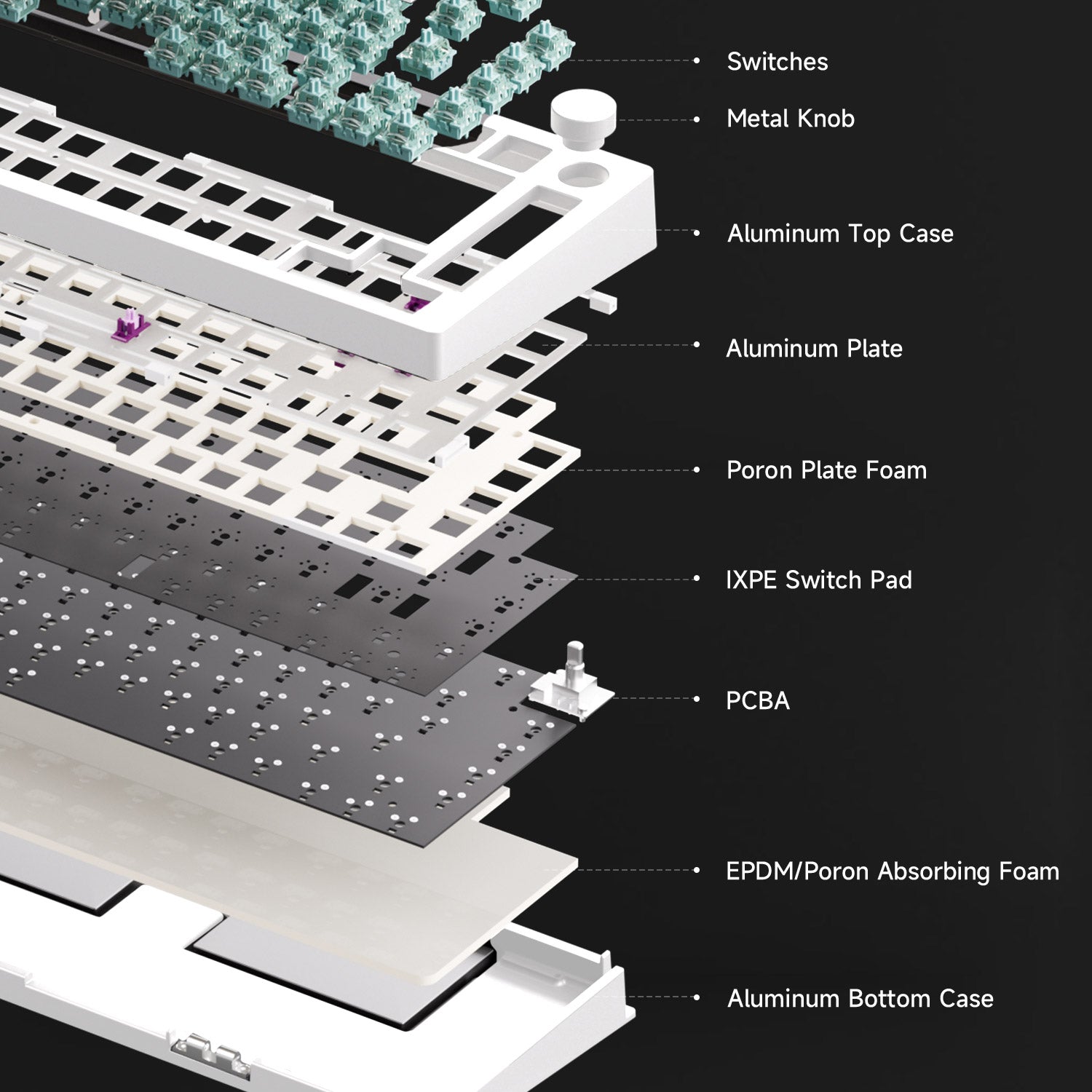

More Flexibility and Sounds Better
MonsGeek M1 V5 HE DIY Kit come with a comprehensive upgrade to the noise reduction system, offering greater flexibility for experimenting with a variety of sound profiles.
MonsGeek M Series QC DisclaimerMonsGeek M1 V5 HE DIY Kit
TECH SPECS
M1 V5 HE Barebone
M1 V5 HE Fully Assembly
M1 V5 TMR
Gasket Mount
Gasket Mount
Gasket Mount
Aluminum CNC
Aluminum CNC
Aluminum CNC
US-ANSI
US-ANSI
ISO-DE; US-ANSI
Bluetooth5.0 / 2.4GHz / USB Type-C
Bluetooth5.0 / 2.4GHz / USB Type-C
Bluetooth5.0 / 2.4GHz / USB Type-C
8000mAh
8000mAh
8000mAh
South-facing ARGB at a 500Hz Refresh Rate
South-facing ARGB at a 500Hz Refresh Rate
South-facing ARGB at a 500Hz Refresh Rate
Support
Support
Support
Support
Support
Support
N/A
N/A
Support
Support
Support
Support
0.01-2.00mm
0.01-2.00mm
0.01-2.00mm
0.1-3.40mm
0.1-3.40mm
0.1-3.40mm
Aluminum
Aluminum
Aluminum;PC
Custom Actuation/Mod-Tap/Toggle Key/Dynamic Keystroke/Keys Remapping/Customizable RGB/SOCD
Custom Actuation/Mod-Tap/Toggle Key/Dynamic Keystroke/Keys Remapping/Customizable RGB/SOCD
Custom Actuation/Mod-Tap/Toggle Key/Dynamic Keystroke/Keys Remapping/Customizable RGB/SOCD
Pre-assembled Demagnetized Plated-mounted Stabilizers
Pre-assembled Demagnetized Plated-mounted Stabilizers
Pre-assembled Demagnetized Plated-mounted TPU Double-shot Stabilizers
N/A
Cherry Profile PC Pad-Printed Keycaps
Cherry Profile PBT Double-shot; Cherry Profile PC Pad-Printed Keycaps
MonsGeek Driver & Web-Based Driver
MonsGeek Driver & Web-Based Driver
MonsGeek Driver & Web-Based Driver
DIY Kit ( with pre-installed AstroAim switches)×1, Manual×1, Cable×1, Keycap Puller×1, Switch Puller×1, Receiver×1
Keyboard×1, Manual×1, Cable×1, Keycap Puller×1, Switch Puller×1, Receiver×1
Keyboard×1, Manual×1, Cable×1, Keycap Puller×1, Switch Puller×1, Receiver×1
